3SU1152 Series

Manufacturer: Siemens

Catalog

ILLUMINATED PUSHBUTTON. BLUE

Part	Mechanical Life	Electrical Life	Actuator Type	Circuit	Voltage Rating - DC	Ingress Protection	Illumination Type, Color	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Switch Function	Type	Voltage Rating - AC	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Panel Cutout Dimensions [diameter]

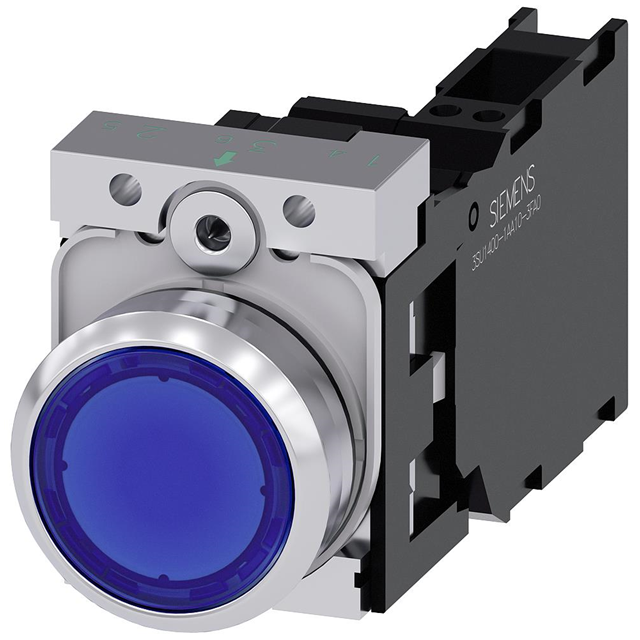

Siemens 3SU11520AB503FA0	3000000 Cycles	10000000 Cycles	Button Round	DPST-NO/NC	500 V	IP66 IP67 IP69K	Blue LED	Blue	10 A	Panel Mount Front	Off-Mom On-Mom	Illuminated Standard	500 V	24 VAC/DC	-25 °C	70 °C	Spring Terminal	22.3 mm
Siemens 3SU11520AB701BA0	3000000 Cycles	10000000 Cycles	Button Round	SPST-NO	500 V	IP66 IP67 IP69K	LED White	Clear	10 A	Panel Mount Front	Off-Mom	Illuminated Standard	500 V	24 VAC/DC	-25 °C	70 °C	Screw Terminal	22.3 mm
Siemens 3SU11520AB301FA0	3000000 Cycles	10000000 Cycles	Button Round	DPST-NO/NC	500 V	IP66 IP67 IP69K	LED Yellow	Yellow	10 A	Panel Mount Front	Off-Mom On-Mom	Illuminated Standard	500 V	24 VAC/DC	-25 °C	70 °C	Screw Terminal	22.3 mm
Siemens 3SU11520AB203FA0	3000000 Cycles	10000000 Cycles	Button Round	DPST-NO/NC	500 V	IP66 IP67 IP69K	LED Red	Red	10 A	Panel Mount Front	Off-Mom On-Mom	Illuminated Standard	500 V	24 VAC/DC	-25 °C	70 °C	Spring Terminal	22.3 mm

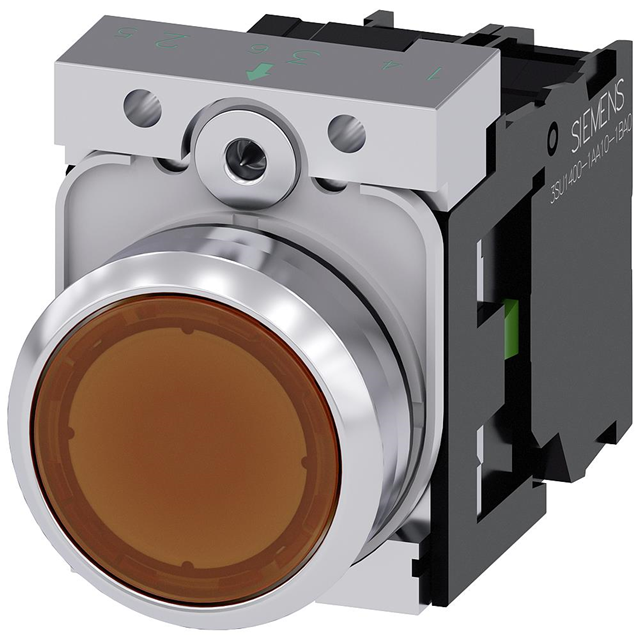

Siemens 3SU11520AB001BA0	3000000 Cycles	10000000 Cycles	Button Round	SPST-NO	500 V	IP66 IP67 IP69K	Amber LED	Amber	10 A	Panel Mount Front	Off-Mom	Illuminated Standard	500 V	24 VAC/DC	-25 °C	70 °C	Screw Terminal	22.3 mm
Siemens 3SU11520AB701FA0	3000000 Cycles	10000000 Cycles	Button Round	DPST-NO/NC	500 V	IP66 IP67 IP69K	LED White	Clear	10 A	Panel Mount Front	Off-Mom On-Mom	Illuminated Standard	500 V	24 VAC/DC	-25 °C	70 °C	Screw Terminal	22.3 mm

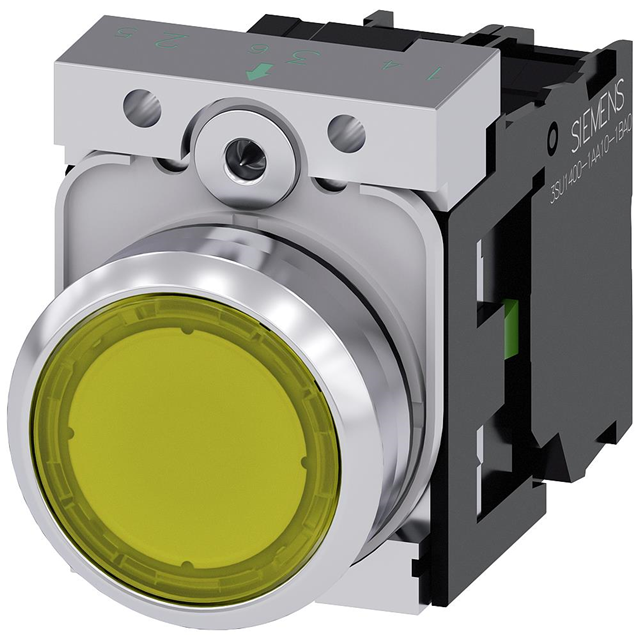

Siemens 3SU11520AB301BA0	3000000 Cycles	10000000 Cycles	Button Round	SPST-NO	500 V	IP66 IP67 IP69K	LED Yellow	Yellow	10 A	Panel Mount Front	Off-Mom	Illuminated Standard	500 V	24 VAC/DC	-25 °C	70 °C	Screw Terminal	22.3 mm
Siemens 3SU11520AB501FA0	3000000 Cycles	10000000 Cycles	Button Round	DPST-NO/NC	500 V	IP66 IP67 IP69K	Blue LED	Blue	10 A	Panel Mount Front	Off-Mom On-Mom	Illuminated Standard	500 V	24 VAC/DC	-25 °C	70 °C	Screw Terminal	22.3 mm

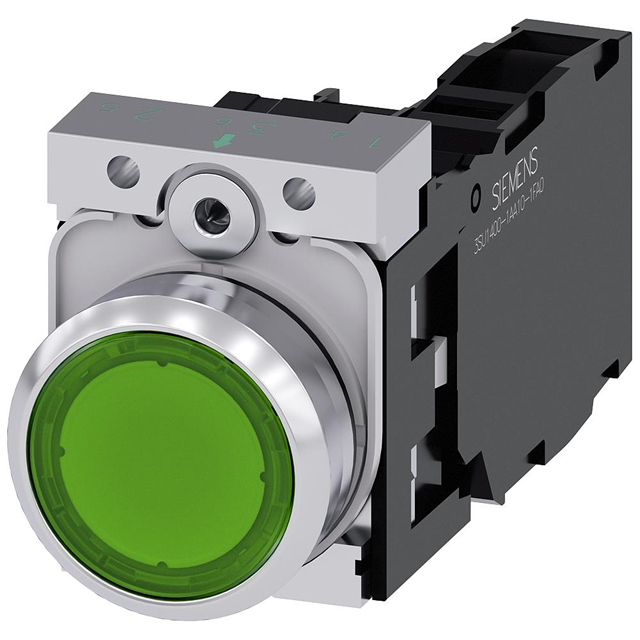

Siemens 3SU11520AB401FA0	3000000 Cycles	10000000 Cycles	Button Round	DPST-NO/NC	500 V	IP66 IP67 IP69K	Green LED	Green	10 A	Panel Mount Front	Off-Mom On-Mom	Illuminated Standard	500 V	24 VAC/DC	-25 °C	70 °C	Screw Terminal	22.3 mm
Siemens 3SU11520AB503BA0	3000000 Cycles	10000000 Cycles	Button Round	SPST-NO	500 V	IP66 IP67 IP69K	Blue LED	Blue	10 A	Panel Mount Front	Off-Mom	Illuminated Standard	500 V	24 VAC/DC	-25 °C	70 °C	Spring Terminal	22.3 mm
