MAX77960 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
25VIN3A/6AOUTUSB-C BUCK-BOOST CHARGER WITH INTEGRATED FETS FOR 2S/3S LI-ION BATTERIES
| Part | Mounting Type | Fault Protection | Operating Temperature [Max] | Operating Temperature [Min] | Battery Pack Voltage | Supplier Device Package | Battery Chemistry [custom] | Package / Case | Voltage - Supply (Max) [Max] | Current - Charging | Number of Cells [Min] | Number of Cells [Max] | Interface | Charge Current - Max [Max] | Programmable Features | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Current - Output | Regulator Topology | Voltage - Input [Max] | Voltage - Input [Min] | Contents | Main Purpose | Frequency - Switching | Utilized IC / Part | Number of Outputs | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

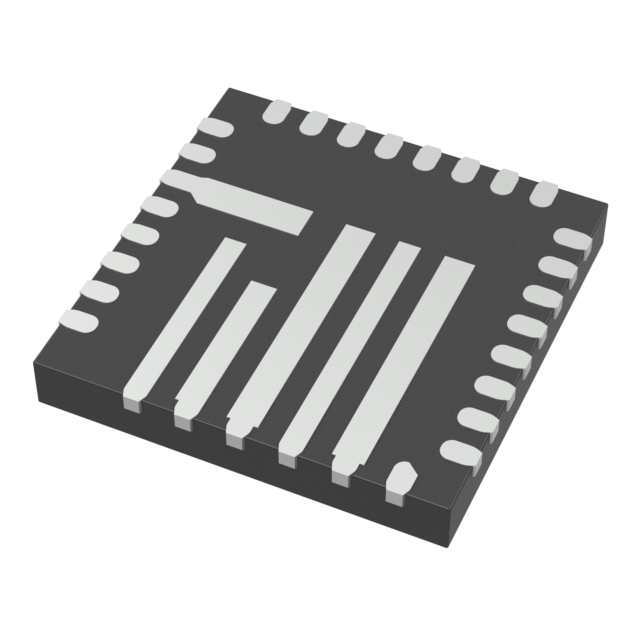

 Analog Devices Inc./Maxim Integrated | Surface Mount | Over Current Over Temperature Over-Under Voltage | 85 C | -40 ¯C | 13.05 V | 30-FC2QFN (4x4) | Lithium Ion/Polymer | 30-PowerUFQFN | 25.4 V | Constant - Programmable | 2 | 3 | I2C USB | 3 A | Current Timer Voltage | ||||||||||||||

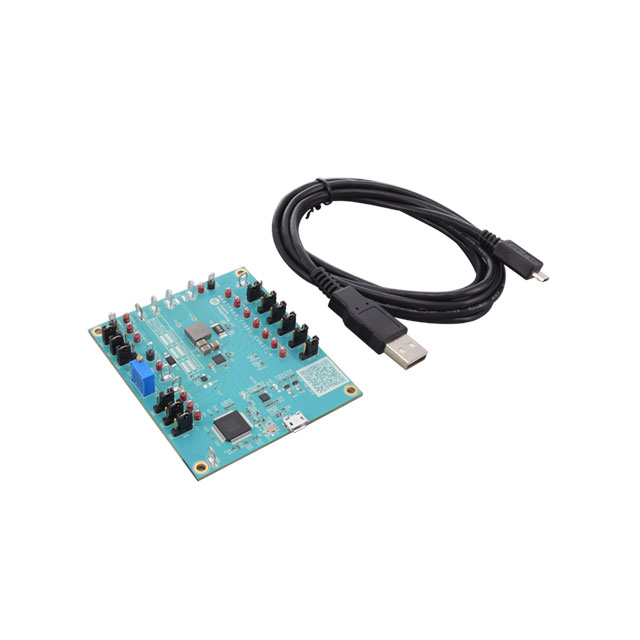

 Analog Devices Inc./Maxim Integrated | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | 3 A | Buck-Boost | 25.4 V | 3.5 V | Board(s) | Special Purpose DC/DC Charger | 600 kHz | MAX77960 | |||||||||||||||||
 Analog Devices Inc./Maxim Integrated | Surface Mount | 85 C | -40 ¯C | 30-FC2QFN (4x4) | 30-PowerUFQFN | 25.4 V | 3.5 V | 1 | Battery Powered Devices Converter |
