194018 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

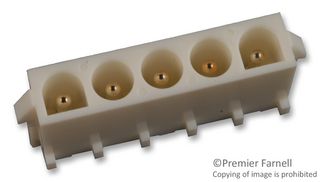

PIN HEADER, WIRE-TO-BOARD, 6.35 MM, 1 ROWS, 5 CONTACTS, THROUGH HOLE
| Part | Mounting Type | Features | Applications | Shrouding | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Insulation Material | Style | Number of Positions Loaded | Contact Type | Contact Material | Pitch - Mating | Pitch - Mating | Connector Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Insulation Height | Insulation Height | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Hole | Board Guide | General Purpose | Shrouded - 4 Wall | Solder | 5.08 µm | 200 µin | UL94 V-0 | 0.145 in | 3.68 mm | Silver | Nylon Polyamide (PA) | Board to Board Cable | All | Male Pin | Copper Alloy | 6.35 mm | 0.25 in | Header | Locking Ramp | 105 ░C | -55 °C | Circular | 0.55 in | 13.97 mm | 1 |
