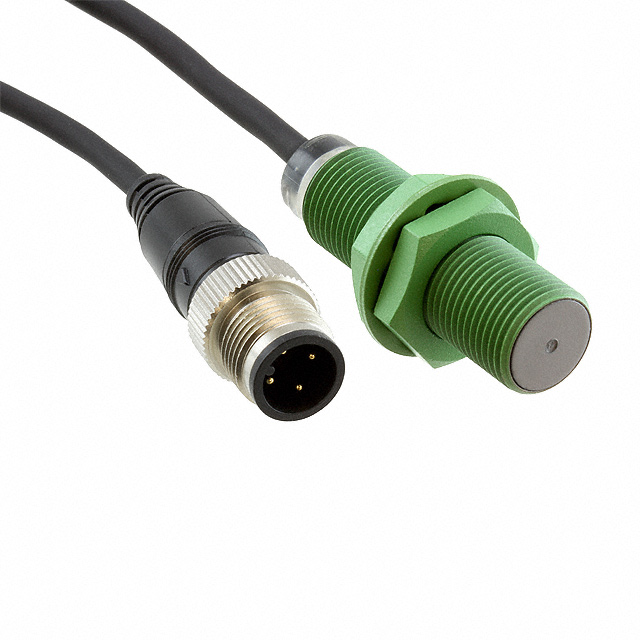

GX-F12 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SENSOR PROX INDUCT 2.4MM CYLIND

Part	Ingress Protection	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Indicator [custom]	Material - Body	Termination Style	Output Type	Shielding	Sensing Distance	Sensing Distance	Response Frequency	Package / Case
Panasonic Industrial Automation Sales GX-F12MU-J	IP67	Inductive	70 °C	-25 °C	12 V	24 V	LED	Nickel-Plated Brass	Cable Leads	2-Wire NPN-NO	Shielded	2.4 mm	0.094 in	1.2 kHz	Cylinder Threaded - M12
Panasonic Industrial Automation Sales GX-F12A-C5	IP68	Inductive	70 °C	-25 °C	12 V	24 V	LED	Plastic	Cable Leads	NPN-NO 3-Wire	Unshielded	3.3 mm	0.13 in	500 Hz	Module
Panasonic Industrial Automation Sales GX-F12A-R	IP68	Inductive	70 °C	-25 °C	12 V	24 V	LED	Plastic	Cable Leads	2-Wire NPN-NO	Unshielded	3.3 mm	0.13 in	500 Hz	Module
Panasonic Industrial Automation Sales GX-F12AI-R	IP68	Inductive	70 °C	-25 °C	12 V	24 V	LED	Plastic	Cable Leads	NPN-NO 3-Wire	Unshielded	3.3 mm	0.13 in		Module
Panasonic Industrial Automation Sales GX-F12B	IP68	Inductive	70 °C	-25 °C	12 V	24 V	LED	Plastic	Cable Leads	NPN-NC 3-Wire	Unshielded	3.3 mm	0.13 in	500 Hz	Module
Panasonic Industrial Automation Sales GX-F12B-P-C5	IP68	Inductive	70 °C	-25 °C	12 V	24 V	LED	Plastic	Cable Leads	PNP-NC 3-Wire	Unshielded	3.3 mm	0.13 in	500 Hz	Module
Panasonic Industrial Automation Sales GX-F12AI-P-R	IP68	Inductive	70 °C	-25 °C	12 V	24 V	LED	Plastic	Cable Leads	PNP-NO 3-Wire	Unshielded	3.3 mm	0.13 in		Module
Panasonic Industrial Automation Sales GX-F12B-P	IP68	Inductive	70 °C	-25 °C	12 V	24 V	LED	Plastic	Cable Leads	PNP-NC 3-Wire	Unshielded	3.3 mm	0.13 in	500 Hz	Module

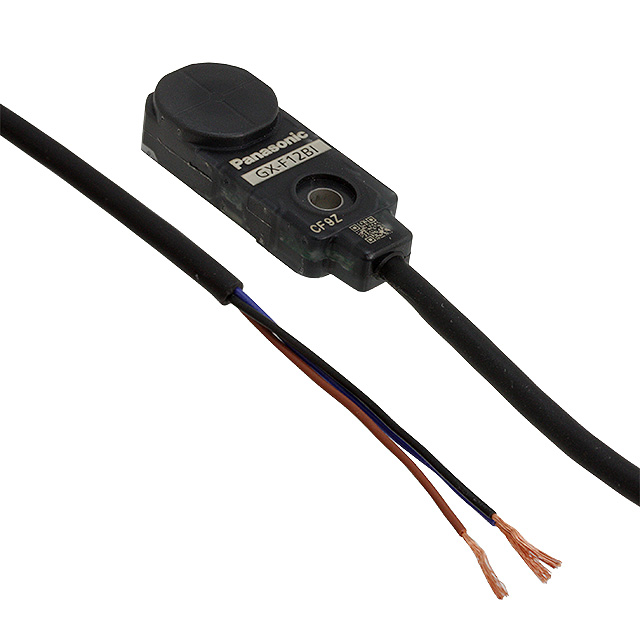

Panasonic Industrial Automation Sales GX-F12BI	IP68	Inductive	70 °C	-25 °C	12 V	24 V	LED	Plastic	Cable Leads	NPN-NC 2-Wire	Unshielded	3.3 mm	0.13 in	500 Hz	Module
Panasonic Industrial Automation Sales GX-F12BI-R	IP68	Inductive	70 °C	-25 °C	12 V	24 V	LED	Plastic	Cable Leads	NPN-NC 3-Wire	Unshielded	3.3 mm	0.13 in	500 Hz	Module
