AQ27X Series

Catalog

WALL MOUNT AC ADAPTERS 27W EU 5V/9V/12V/15V 3A/3A/2.25A/1.8A USB

Part	Output Connector	Approval Agency	Operating Temperature [Max]	Applications	Region Utilized	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	No Load Power Consumption	Input Type	Efficiency	Standard Number	Input Connector	Form
Phihong USA AQ27E-59CFA-H	USB C Power Delivery (PD) USB C Receptacle	IEC	40 °C	ITE (Commercial)	Europe	72 mm	1.81 "	46 mm	0.91 in	2.83 in	23 mm	1.8 A 2.25 A 3 A	5 V 9 V 12 V 15 V	264 VAC	90 VAC	27 W	75 mW	Fixed Blade	CoC Tier 2 Level VI	60950-1	CEE 7/16	Wall Mount
Phihong USA AQ27A-59CFA-H	USB C Power Delivery (PD) USB C Receptacle	cULus	40 °C	ITE (Commercial)	North America	54 mm	1.81 "	46 mm	0.91 in	2.13 in	23 mm	1.8 A 2.25 A 3 A	5 V 9 V 12 V 15 V	264 VAC	90 VAC	27 W	75 mW	Fixed Blade	CoC Tier 2 Level VI	60950-1 62368-1	NEMA 1-15P	Wall Mount

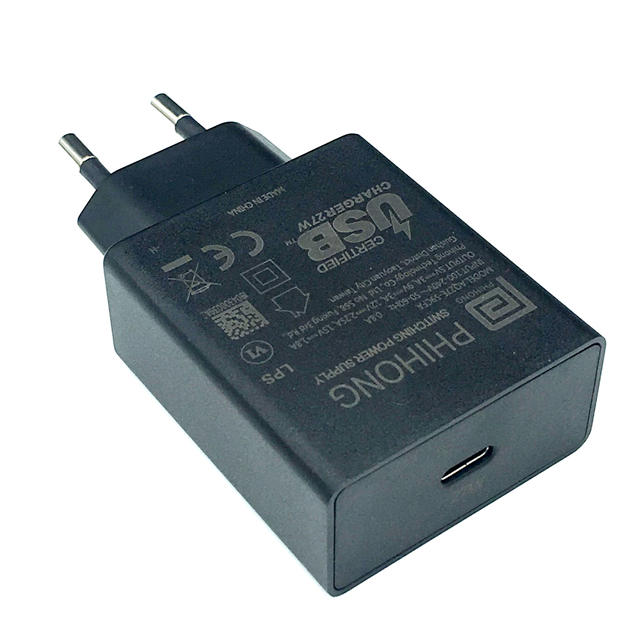

Phihong USA AQ27E-59A-H	USB C Receptacle	CE cULus	40 °C	ITE (Commercial)	Europe	23 mm	2.83 in	72 mm	1.81 in	0.91 in	46 mm	3 A	5 V 9 V	264 VAC	90 VAC	27 W	75 mW	Fixed Blade	CoC Tier 2 Level VI	60950-1 62368-1	CEE 7/16	Wall Mount

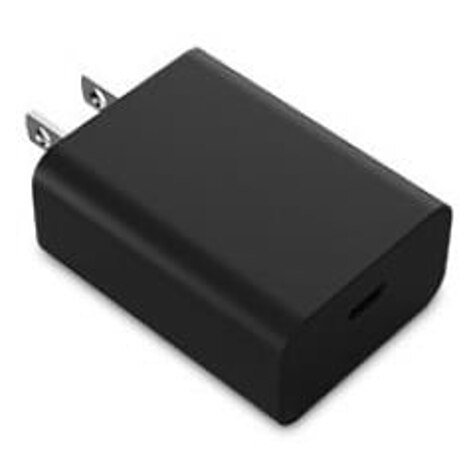

Phihong USA AQ27A-59A-H	USB C Receptacle	CE cULus	40 °C	ITE (Commercial)	North America	23 mm	2.13 in	54 mm	1.81 in	0.91 in	46 mm	3 A	5 V 9 V	264 VAC	90 VAC	27 W	75 mW	Fixed Blade	CoC Tier 2 Level VI	60950-1 62368-1	NEMA 1-15P	Wall Mount
