307-043 Series
Manufacturer: EDAC Inc.
Beta
⌘K

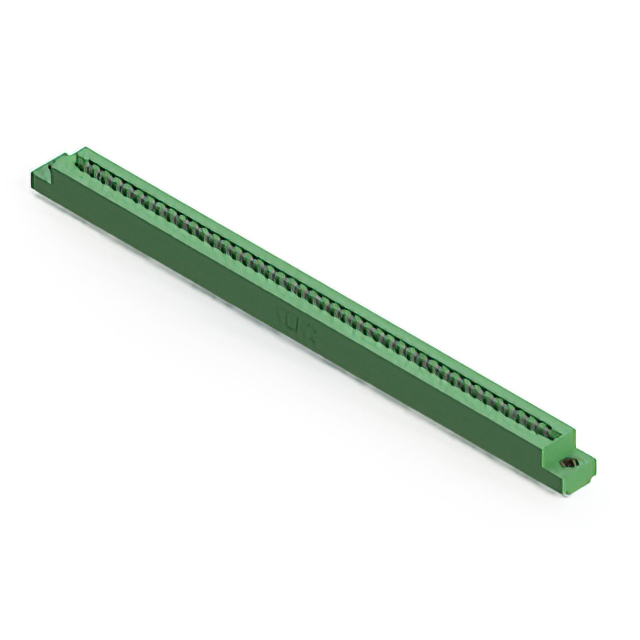

CONN EDGE DUAL FMALE 86POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Color | Number of Positions | Mounting Type | Read Out | Termination | Gender | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Number of Rows [custom] | Number of Positions/Bay/Row | Card Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 86 | Through Hole | Dual | Wire Wrap | Female | Tin | -40 C | 105 ░C | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | 2 | 43 | Non Specified - Dual Edge | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 86 | Surface Mount | Dual | Solder Eyelet(s) | Female | Tin | -40 C | 105 ░C | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | 2 | 43 | Non Specified - Dual Edge | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 86 | Through Hole | Dual | Wire Wrap | Female | Tin | -40 C | 105 ░C | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Copper Alloy | 2 | 43 | Non Specified - Dual Edge | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 43 | Right Angle Through Hole | Single | Solder | Female | Tin | -40 C | 105 ░C | 3.96 mm | 0.156 in | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | 43 | Non Specified - Single Edge | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 86 | Right Angle Through Hole | Dual | Solder | Female | Tin | -40 C | 105 ░C | 3.96 mm | 0.156 in | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 2 | 43 | Non Specified - Dual Edge | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 86 | Right Angle Through Hole | Dual | Solder | Female | Gold | -40 C | 105 ░C | 3.96 mm | 0.156 in | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | 2 | 43 | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 43 | Right Angle Through Hole | Single | Solder | Female | Gold | -40 C | 105 ░C | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | 43 | Non Specified - Single Edge | 1 | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 86 | Through Hole | Dual | Solder | Female | Gold | -40 C | 105 ░C | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 2 | 43 | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Guides | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 43 | Right Angle Through Hole | Single | Solder | Female | Gold | -40 C | 105 ░C | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Copper Alloy | 43 | Non Specified - Single Edge | 1 | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 86 | Surface Mount | Dual | Solder Eyelet(s) | Female | Tin | -40 C | 105 ░C | 3.96 mm | 0.156 in | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | 2 | 43 | Non Specified - Dual Edge |
