104746 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Catalog

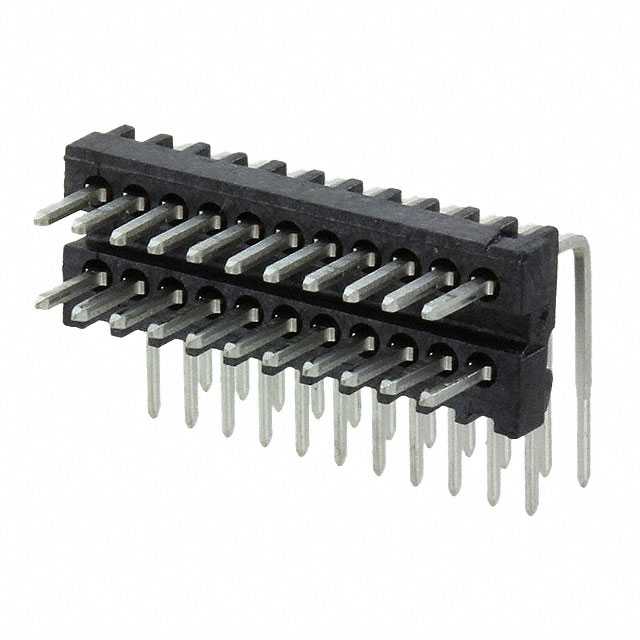

CONN HEADER R/A 22POS 1.27MM
| Part | Contact Length - Mating | Contact Length - Mating | Fastening Type | Insulation Height | Insulation Height | Material Flammability Rating | Style | Number of Rows | Termination | Insulation Color | Number of Positions Loaded | Connector Type | Applications | Contact Type | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Contact Length - Post | Contact Length - Post | Voltage Rating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Post | Contact Material | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 3.05 mm | 0.12 in | Push-Pull | 5.49 mm | 0.216 in | UL94 V-0 | Board to Board Cable | 2 | Solder | Black | All | Header | Automotive General Purpose Medical Telecommunications | Male Pin | Circular | 150 Áin | 3.81 Ám | Unshrouded | 3.46 mm | 0.136 " | 30 VAC | 2.54 mm | 0.1 in | Tin | Copper Alloy | 0.05 in | 1.27 mm | Through Hole Right Angle | 22 positions | 150 Áin | 3.81 Ám | Thermoplastic | -65 ░C | 105 ░C | |
TE Connectivity Raychem Cable Protection | 3.05 mm | 0.12 in | Push-Pull | 5.49 mm | 0.216 in | UL94 V-0 | Board to Board Cable | 2 | Solder | Black | All | Header | Automotive General Purpose Medical Telecommunications | Male Pin | Circular | 150 Áin | 3.81 Ám | Unshrouded | 3.46 mm | 0.136 " | 30 VAC | 2.54 mm | 0.1 in | Tin-Lead | Copper Alloy | 0.05 in | 1.27 mm | Through Hole Right Angle | 22 positions | 150 Áin | 3.81 Ám | Thermoplastic | -65 ░C | 105 ░C | Tin-Lead |
