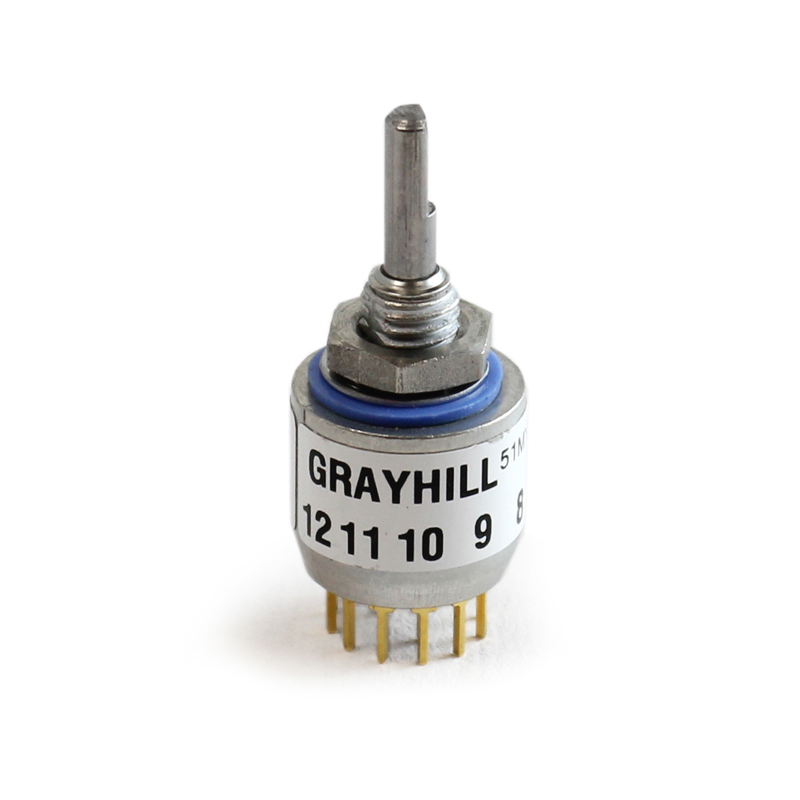

51KMT30 Series

Catalog

SWITCH ROTARY 3POS 150MA 115V

Part	Number of Decks [custom]	Current Rating (Amps)	Contact Timing	Actuator Type	Contact Finish	Termination Style	Actuator Length [x]	Voltage Rating - DC	Circuit per Deck	Mounting Type	Depth Behind Panel [custom]	Voltage Rating - AC	Features	Index Stops	Angle of Throw	Number of Poles per Deck	Number of Positions	Panel Cutout Dimensions [diameter]
Grayhill Inc. 51KMT30-01E03N	1	150 mA 200 mA	Non-Shorting (BBM)	Flatted (6.35mm Dia)	Gold	Solder Lug	9.53 mm	28 V	4P3T	Panel Mount	18.77 mm	115 V	Process Sealed	Fixed	30 °
Grayhill Inc. 51KMT30-01D04N	1	150 mA 200 mA	Non-Shorting (BBM)	Flatted (6.35mm Dia)	Gold	Solder Lug	9.53 mm	28 V	3P4T	Panel Mount	18.77 mm	115 V	Process Sealed	Fixed	30 °	3	4
Grayhill Inc. 51KMT30-01C06N	1	150 mA 200 mA	Non-Shorting (BBM)	Flatted (6.35mm Dia)	Gold	Solder Lug	9.53 mm	28 V	DP6T	Panel Mount	18.77 mm	115 V	Process Sealed	Fixed	30 °	2	6
Grayhill Inc. 51KMT30-01C04N	1	150 mA 200 mA	Non-Shorting (BBM)	Flatted (6.35mm Dia)	Gold	Solder Lug	9.53 mm	28 V	DP4T	Panel Mount	18.77 mm	115 V	Process Sealed	Fixed	30 °	2	4
Grayhill Inc. 51KMT30-01C05N	1	150 mA 200 mA	Non-Shorting (BBM)	Flatted (6.35mm Dia)	Gold	Solder Lug	9.53 mm	28 V	DP5T	Panel Mount	18.77 mm	115 V	Process Sealed	Fixed	30 °	2	5
Grayhill Inc. 51KMT30-01C03N	1	150 mA 200 mA	Non-Shorting (BBM)	Flatted (6.35mm Dia)	Gold	Solder Lug	9.53 mm	28 V	DP3T	Panel Mount	18.77 mm	115 V	Process Sealed	Fixed	30 °	2
Grayhill Inc. 51KMT30-01B12S	1	150 mA 200 mA	Shorting (MBB)	Flatted (6.35mm Dia)	Gold	Solder Lug	9.53 mm	28 V	SP12T	Panel Mount	18.77 mm	115 V	Process Sealed	Continuous	30 °	1	12	6.45 mm
Grayhill Inc. 51KMT30-01D03N	1	150 mA 200 mA	Non-Shorting (BBM)	Flatted (6.35mm Dia)	Gold	Solder Lug	9.53 mm	28 V	3P3T	Panel Mount	18.77 mm	115 V	Process Sealed	Fixed	30 °	3
Grayhill Inc. 51KMT30-01B12N	1	150 mA 200 mA	Non-Shorting (BBM)	Flatted (6.35mm Dia)	Gold	Solder Lug	9.53 mm	28 V	SP12T	Panel Mount	18.77 mm	115 V	Process Sealed	Fixed	30 °	1	12
