82_MMBX Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
RF COAX CONN, JACK, PCB, 50 OHM ROHS COMPLIANT: YES
| Part | Dielectric Material | Center Contact Plating | Body Finish | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Termination | Mounting Type | Connector Style | Number of Ports | Fastening Type | Shield Termination | Connector Type | Frequency - Max [Max] | Housing Color | Center Contact Material | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | Gold | Gold | Brass | 155 C | -55 C | 330 VDC | Solder | Surface Mount | MMBX | 1 | Snap-On | Solder | Female Socket Jack | 12.4 GHz | Gold | Brass | 50 Ohms |

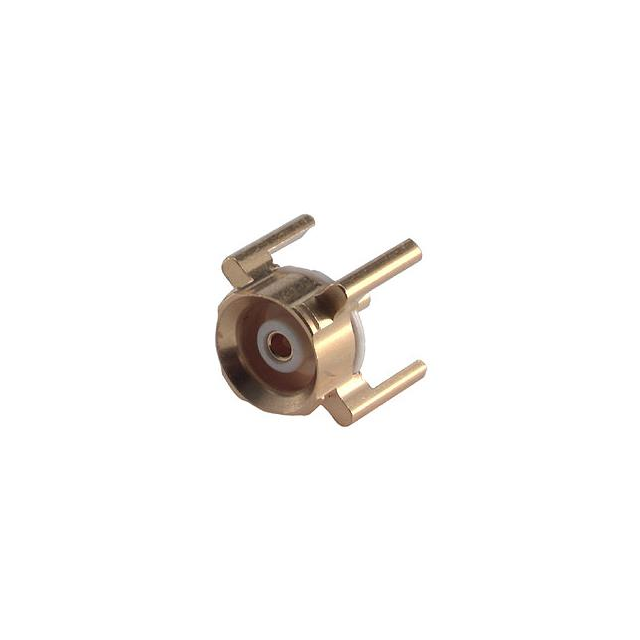

 Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | Gold | Gold | Brass | 155 C | -55 C | 250 V | Solder | Through Hole | MMBX | 1 | Snap-On | Solder | Female Socket Jack | 12.4 GHz | Gold | Brass | 50 Ohms |
 Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | Gold | Gold | Brass | 155 C | -55 C | 250 V | Solder | Through Hole | MMBX | 1 | Snap-On | Solder | Female Socket Jack | 12.4 GHz | Gold | Brass | 50 Ohms |
Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | Gold | Gold | Brass | 155 C | -55 C | 250 V | Solder | Through Hole | MMBX | 1 | Snap-On | Solder | Female Socket Jack | 12.4 GHz | Gold | Brass | 50 Ohms |

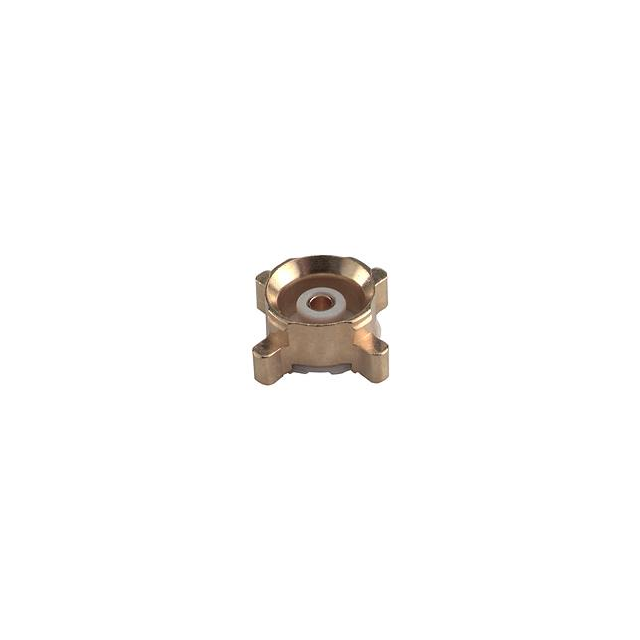

 Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | Gold | Gold | Brass | 155 C | -55 C | 250 V | Solder | Surface Mount | MMBX | 1 | Snap-On | Solder | Female Socket Jack | 12.4 GHz | Gold | Brass | 50 Ohms |
 Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | Gold | Gold | Brass | 155 C | -55 C | 330 VDC | Solder | Surface Mount | MMBX | 1 | Snap-On | Solder | Female Socket Jack | 12.4 GHz | Gold | Brass | 50 Ohms |
 Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | Gold | Gold | Brass | 155 C | -55 C | 330 VDC | Solder | Surface Mount | MMBX | 1 | Snap-On | Solder | Female Socket Jack | 12.4 GHz | Gold | Brass | 50 Ohms |
 Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | Gold | Gold | Brass | 155 C | -55 C | 250 V | Solder | Surface Mount | MMBX | 1 | Snap-On | Solder | Female Socket Jack | 12.4 GHz | Gold | Brass | 50 Ohms |
 Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | Gold | Gold | Brass | 155 C | -55 C | 330 VDC | Solder | Through Hole | MMBX | 1 | Snap-On | Solder | Female Socket Jack | 12.4 GHz | Gold | Brass | 50 Ohms |
 Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | Gold | Gold | Brass | 155 C | -55 C | 330 VDC | Solder | Surface Mount | MMBX | 1 | Snap-On | Solder | Female Socket Jack | 12.4 GHz | Gold | Brass | 50 Ohms |
