501190 Series

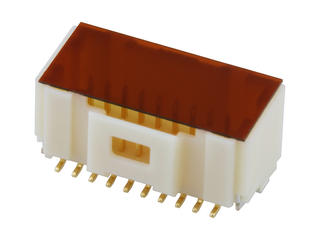

1.00mm Pitch, Pico-Clasp PCB Header, Dual Row, Vertical, Surface Mount, 0.10µm Gold Plated, Inner Positive Lock, 40 Circuits, Natural

Manufacturer: Molex

Catalog

1.00mm Pitch, Pico-Clasp PCB Header, Dual Row, Vertical, Surface Mount, 0.10µm Gold Plated, Inner Positive Lock, 40 Circuits, Natural

Part	Row Spacing - Mating [x]	Row Spacing - Mating	Contact Shape	Contact Finish - Mating	Insulation Color	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Connector Type	Style	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Shrouding	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Mounting Type	Contact Type	Features	Pitch - Mating	Pitch - Mating	Insulation Material	Fastening Type	Mated Stacking Heights	Applications
Molex 5011904017	0.105 in	2.66 mm	Square	Gold	Natural	0.213 "	5.4 mm	2	Header	Board to Cable/Wire	Phosphor Bronze	3.9 µin	0.099 µm	Solder	Shrouded - 4 Wall	40	UL94 V-0	All	Surface Mount	Male Pin	Pick and Place Solder Retention	1 mm	0.039 in	Nylon Polyamide (PA)	Latch Holder
Molex 5011904027	0.105 in	2.66 mm	Square	Gold	Natural	0.213 "	5.4 mm	2	Header	Board to Cable/Wire	Phosphor Bronze	3.9 µin	0.099 µm	Solder	Shrouded - 4 Wall	40	UL94 V-0	All	Surface Mount	Male Pin	Pick and Place Solder Retention	1 mm	0.039 in	Nylon Polyamide (PA)	Latch Holder
Molex 5011903017	0.105 in	2.66 mm	Square	Gold	Natural	0.213 "	5.4 mm	2	Header	Board to Cable/Wire	Phosphor Bronze	3.9 µin	0.099 µm	Solder	Shrouded - 4 Wall	30	UL94 V-0	All	Surface Mount	Male Pin	Pick and Place Solder Retention	1 mm	0.039 in	Nylon Polyamide (PA)	Latch Holder	6.8 mm	General Purpose
Molex 5011903027	0.105 in	2.66 mm	Square	Gold	Natural	0.213 "	5.4 mm	2	Header	Board to Cable/Wire	Phosphor Bronze	3.9 µin	0.099 µm	Solder	Shrouded - 4 Wall	30	UL94 V-0	All	Surface Mount	Male Pin	Pick and Place Solder Retention	1 mm	0.039 in	Nylon Polyamide (PA)	Latch Holder
Molex 5011905017	0.105 in	2.66 mm	Square	Gold	Natural	0.213 "	5.4 mm	2	Header	Board to Cable/Wire	Phosphor Bronze	3.9 µin	0.099 µm	Solder	Shrouded - 4 Wall	50	UL94 V-0	All	Surface Mount	Male Pin	Pick and Place Solder Retention	1 mm	0.039 in	Nylon Polyamide (PA)	Latch Holder	6.8 mm	General Purpose
Molex 5011902017	0.105 in	2.66 mm	Square	Gold	Natural	0.213 "	5.4 mm	2	Header	Board to Cable/Wire	Phosphor Bronze	3.9 µin	0.099 µm	Solder	Shrouded - 4 Wall	20	UL94 V-0	All	Surface Mount	Male Pin	Pick and Place Solder Retention	1 mm	0.039 in	Nylon Polyamide (PA)	Latch Holder	6.8 mm	General Purpose
Molex 5011905027	0.105 in	2.66 mm	Square	Gold	Natural	0.213 "	5.4 mm	2	Header	Board to Cable/Wire	Phosphor Bronze	3.9 µin	0.099 µm	Solder	Shrouded - 4 Wall	50	UL94 V-0	All	Surface Mount	Male Pin	Pick and Place Solder Retention	1 mm	0.039 in	Nylon Polyamide (PA)	Latch Holder	6.8 mm	General Purpose
Molex 5011902027	0.105 in	2.66 mm	Square	Gold	Natural	0.213 "	5.4 mm	2	Header	Board to Cable/Wire	Phosphor Bronze	3.9 µin	0.099 µm	Solder	Shrouded - 4 Wall	20	UL94 V-0	All	Surface Mount	Male Pin	Pick and Place Solder Retention	1 mm	0.039 in	Nylon Polyamide (PA)	Latch Holder	6.8 mm	General Purpose
