315-058 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 58POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Features	Flange Feature	Card Type	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows [custom]	Gender	Color	Termination	Card Thickness [Max]	Card Thickness [Min]	Read Out	Mounting Type	Number of Positions/Bay/Row	Pitch	Pitch	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 315-058-555-278	2	Polyester Thermoplastic	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Gold	0.25 Ám	10 Áin	58	2	Female	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	29	3.96 mm	0.156 in	Semi Bellows	-40 C	105 ░C
EDAC Inc. 315-058-556-208	2	Polyester Thermoplastic	Card Extender	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Gold	0.25 Ám	10 Áin	58	2	Female	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	29	3.96 mm	0.156 in	Semi Bellows	-40 C	105 ░C
EDAC Inc. 315-058-555-207	2	Polyester Thermoplastic	Card Extender	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Gold	0.25 Ám	10 Áin	58	2	Female	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	29	3.96 mm	0.156 in	Semi Bellows	-40 C	105 ░C
EDAC Inc. 315-058-520-204	2	Polyester Thermoplastic		Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	Gold	0.25 Ám	10 Áin	58	2	Female	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Panel Mount Through Hole	29	3.96 mm	0.156 in	Semi Bellows	-40 C	105 ░C	0.156 "	3.96 mm
EDAC Inc. 315-058-556-268	2	Polyester Thermoplastic	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Gold	0.25 Ám	10 Áin	58	2	Female	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	29	3.96 mm	0.156 in	Semi Bellows	-40 C	105 ░C
EDAC Inc. 315-058-556-278	2	Polyester Thermoplastic	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Gold	0.25 Ám	10 Áin	58	2	Female	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	29	3.96 mm	0.156 in	Semi Bellows	-40 C	105 ░C
EDAC Inc. 315-058-556-204	2	Polyester Thermoplastic	Card Extender	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	Gold	0.25 Ám	10 Áin	58	2	Female	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	29	3.96 mm	0.156 in	Semi Bellows	-40 C	105 ░C	0.156 "	3.96 mm

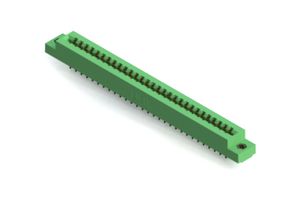

EDAC Inc. 315-058-556-207	2	Polyester Thermoplastic	Card Extender	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Gold	0.25 Ám	10 Áin	58	2	Female	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	29	3.96 mm	0.156 in	Semi Bellows	-40 C	105 ░C
EDAC Inc. 315-058-521-208	2	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Gold	0.25 Ám	10 Áin	58	2	Female	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Panel Mount Through Hole	29	3.96 mm	0.156 in	Semi Bellows	-40 C	105 ░C
EDAC Inc. 315-058-521-268	2	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Gold	0.25 Ám	10 Áin	58	2	Female	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Panel Mount Through Hole	29	3.96 mm	0.156 in	Semi Bellows	-40 C	105 ░C
