68737 Series

Catalog

CONN HEADER VERT 6POS 2.54MM

Part	Contact Material	Number of Rows	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Insulation Color	Insulation Height	Insulation Height	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating	Fastening Type	Connector Type	Contact Length - Post [x]	Contact Length - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions Loaded	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Shrouding	Contact Finish - Post	Number of Positions	Insulation Material
Amphenol ICC (FCI) 68737-206HLF	Phosphor Bronze	2	3 A	0.44 in	11.18 mm	Black	0.1 in	2.54 mm	Male Pin	15 µin	0.38 µm	Square	0.23 in	5.84 mm	Push-Pull	Header	0.11 in	2.79 mm	Gold or Gold GXT™	0.1 in	2.54 mm	Through Hole	All	Solder	-65 ░C	130 °C	UL94 V-0	2.54 mm	0.1 in	6	Unshrouded
Amphenol ICC (FCI) 68737-204HLF	Phosphor Bronze	2		0.44 in	11.18 mm	Black	0.1 in	2.54 mm	Male Pin	15 µin	0.38 µm	Square	0.23 in	5.84 mm	Push-Pull	Header	0.11 in	2.79 mm	Gold or Gold GXT™	0.1 in	2.54 mm	Through Hole	All	Solder			UL94 V-0	2.54 mm	0.1 in	4	Unshrouded
Amphenol ICC (FCI) 68737-472	Phosphor Bronze	2		0.44 in	11.18 mm	Black	0.1 in	2.54 mm	Male Pin	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Push-Pull	Header	0.11 in	2.79 mm		0.1 in	2.54 mm	Through Hole	All	Solder			UL94 V-0	2.54 mm	0.1 in	72	Unshrouded
Amphenol ICC (FCI) 68737-408HLF	Phosphor Bronze	2		0.44 in	11.18 mm	Black	0.1 in	2.54 mm	Male Pin	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Push-Pull	Header	0.11 in	2.79 mm		0.1 in	2.54 mm	Through Hole	All	Solder			UL94 V-0	2.54 mm	0.1 in	8	Unshrouded	Tin
Amphenol ICC (FCI) 68737-216HLF	Phosphor Bronze	2	3 A	0.44 in	11.18 mm	Black	0.1 in	2.54 mm	Male Pin	15 µin	0.38 µm	Square	0.23 in	5.84 mm	Push-Pull	Header	0.11 in	2.79 mm	Gold or Gold GXT™	0.1 in	2.54 mm	Through Hole	All	Solder	-65 ░C	130 °C	UL94 V-0	2.54 mm	0.1 in		Unshrouded		16
Amphenol ICC (FCI) 68737-202	Phosphor Bronze	2		0.44 in	11.18 mm	Black	0.1 in	2.54 mm	Male Pin	15 µin	0.38 µm	Square	0.23 in	5.84 mm	Push-Pull	Header	0.11 in	2.79 mm	Gold or Gold GXT™			Through Hole	All	Solder			UL94 V-0	2.54 mm	0.1 in	2	Unshrouded
Amphenol ICC (FCI) 68737-500H	Phosphor Bronze	2		0.44 in	11.18 mm	Black	0.1 in	2.54 mm	Male Pin	15 µin	0.38 µm	Square	0.23 in	5.84 mm	Push-Pull	Header	0.11 in	2.79 mm	Gold or Gold GXT™	0.1 in	2.54 mm	Through Hole	All	Solder			UL94 V-0	2.54 mm	0.1 in		Unshrouded		Cuttable	Liquid Crystal Polymer (LCP)

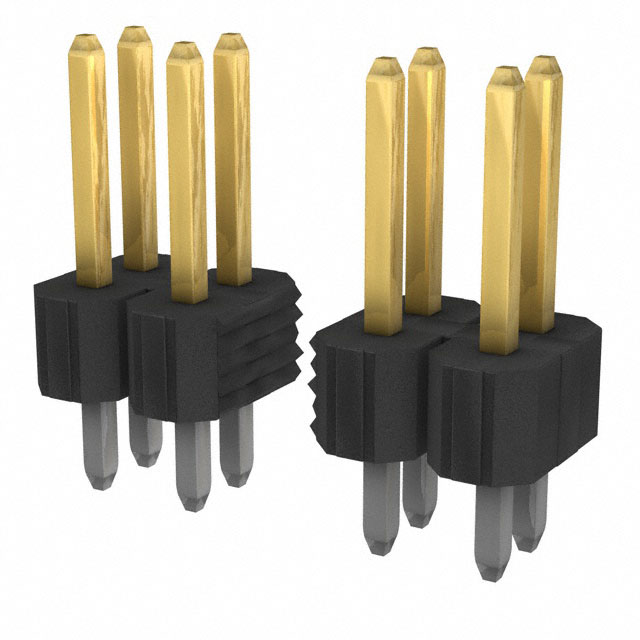

Amphenol ICC (FCI) 68737-170HLF	Phosphor Bronze	2		0.44 in	11.18 mm	Black	0.1 in	2.54 mm	Male Pin	30 Áin	0.76 Ám	Square	0.23 in	5.84 mm	Push-Pull	Header	0.11 in	2.79 mm	Gold or Gold GXT™	0.1 in	2.54 mm	Through Hole	All	Solder			UL94 V-0	2.54 mm	0.1 in	70	Unshrouded
Amphenol ICC (FCI) 68737-214H	Phosphor Bronze	2	3 A	0.44 in	11.18 mm	Black	0.1 in	2.54 mm	Male Pin	15 µin	0.38 µm	Square	0.23 in	5.84 mm	Push-Pull	Header	0.11 in	2.79 mm	Gold or Gold GXT™	0.1 in	2.54 mm	Through Hole	All	Solder	-65 ░C	130 °C	UL94 V-0	2.54 mm	0.1 in	14	Unshrouded
Amphenol ICC (FCI) 68737-406HLF	Phosphor Bronze	2		0.44 in	11.18 mm	Black	0.1 in	2.54 mm	Male Pin	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Push-Pull	Header	0.11 in	2.79 mm		0.1 in	2.54 mm	Through Hole	All	Solder			UL94 V-0	2.54 mm	0.1 in	6	Unshrouded	Tin
