TPS75105 Series
Manufacturer: Texas Instruments
Beta
⌘K
LOW DROPOUT, TWO-BANK LED DRIVER WITH PWM BRIGHTNESS CONTROL WITH 25MA/CH
| Part | Applications | Internal Switch(s) | Voltage - Supply (Min) [Min] | Supplier Device Package | Package / Case | Current - Output / Channel | Dimming | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Max) [Max] | Mounting Type | Type | Outputs and Type | Outputs and Type | Supplied Contents | Contents | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

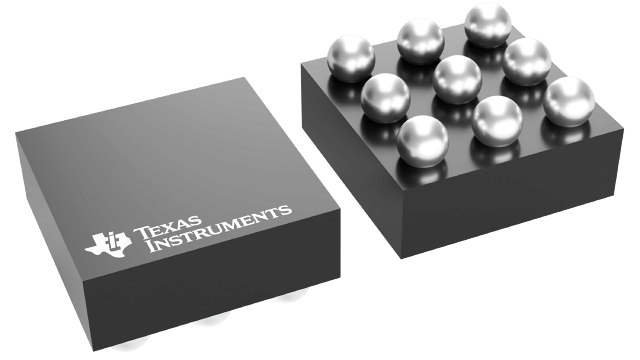

 Texas Instruments | Backlight | 2.7 V | 9-DSBGA | 9-UFBGA DSBGA | 25 mA | PWM | 4 | -40 °C | 85 °C | 5.5 V | Surface Mount | Linear | |||||||||
 Texas Instruments | Backlight | 2.7 V | 10-SON (2.5x2.5) | 10-WFDFN Exposed Pad | 25 mA | PWM | 4 | -40 °C | 85 °C | 5.5 V | Surface Mount | Linear | |||||||||

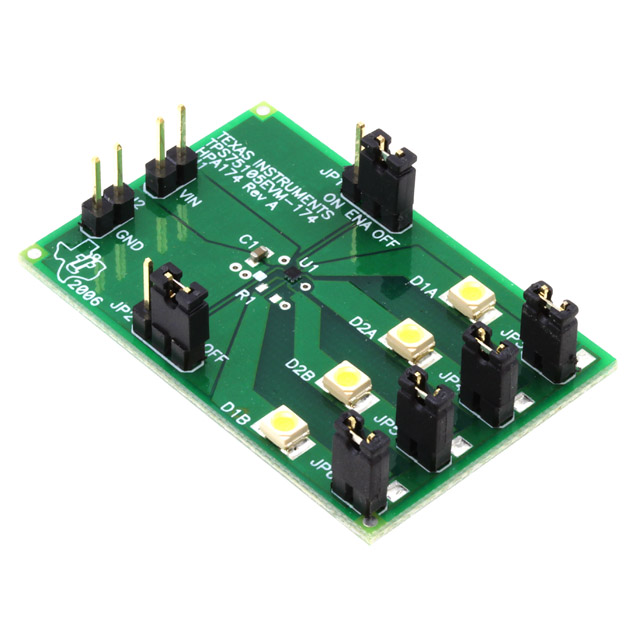

 Texas Instruments | 4 Non-Isolated Outputs Non-Isolated | 4 | Board(s) | Board(s) | TPS75105 | 5.5 V | 2.7 V | Dimmable | |||||||||||||
 Texas Instruments | 5 mA | 4 Non-Isolated Outputs Non-Isolated | 4 | Board(s) | Board(s) | TPS75105 | 5.5 V | 2.7 V | Dimmable | ||||||||||||
Texas Instruments | Backlight | 2.7 V | 9-DSBGA | 9-UFBGA DSBGA | 25 mA | PWM | 4 | -40 °C | 85 °C | 5.5 V | Surface Mount | Linear | |||||||||
 Texas Instruments | Backlight | 2.7 V | 10-SON (2.5x2.5) | 10-WFDFN Exposed Pad | 25 mA | PWM | 4 | -40 °C | 85 °C | 5.5 V | Surface Mount | Linear |
