SRLAHS Series

Catalog

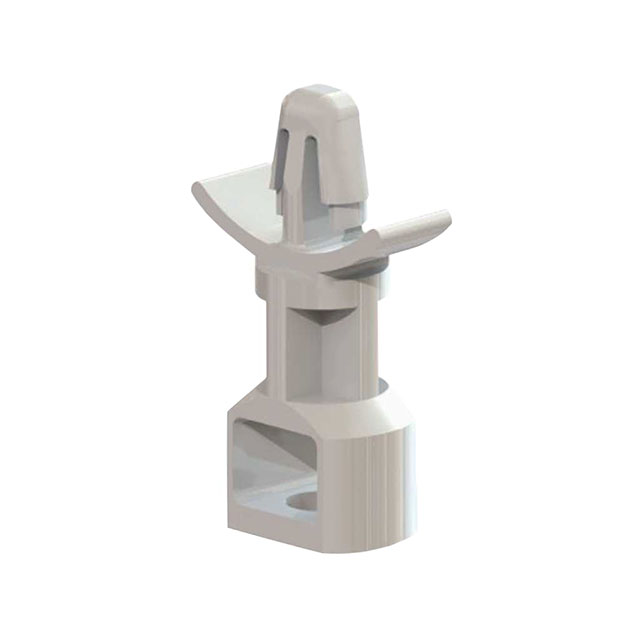

SN/RIV LOCKING ARROW SUPT 1"

Part	Between Board Height	Between Board Height	Material	Mounting Hole Diameter	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Holding Type	Mounting Type	Features	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Max]	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Between Board Height
Essentra Components SRLAHS-16-01	25.4 mm	1 in	Nylon	4 mm 4.1 mm	0.157 in	0.161 in	33.8 mm	1.331 in	Snap Lock	Snap Rivet	Winged	0.031 in	0.79 mm	0.078 in	1.98 mm	0.187 in	4.75 mm	3/16
Essentra Components SRLAHS-8-01	12.7 mm	0.5 in	Nylon	4 mm 4.1 mm	0.157 in	0.161 in	21.1 mm	0.831 in	Snap Lock	Snap Rivet	Winged	0.031 in	0.79 mm	0.078 in	1.98 mm	0.187 in	4.75 mm	3/16	0.5 in
