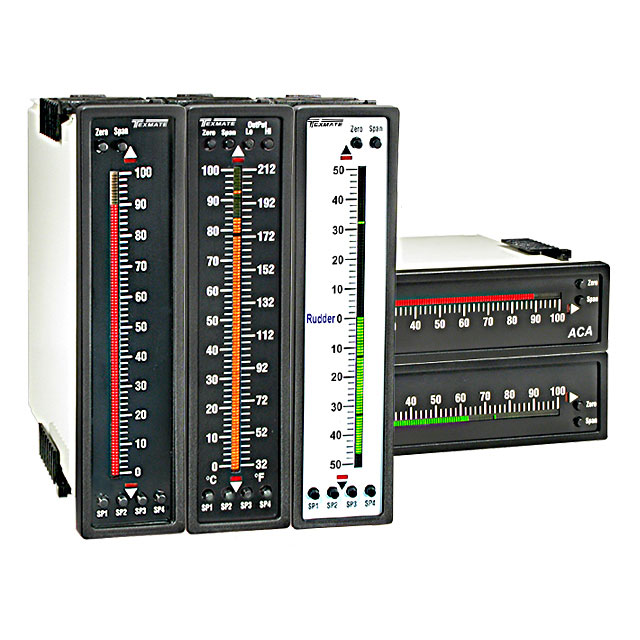

FL-B101Q Series
Manufacturer: Texmate
Beta
⌘K
LINE FREQUENCY 0-99.9 HZ BARGRAP
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 2 Maximum) | Mounting Type | Panel Cutout Shape | Panel Cutout Width | Panel Cutout Length | Relay (Count) | Output Type | Display Type | Measuring Type | Type | Termination Style | Measuring Voltage Range (Minimum) | Measuring Voltage Range (Maximum) | Measuring Range (Min) | Measuring Range (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texmate | 0 °C | 50 °C | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Panel Mount | Rectangular | 36.07 mm | 144.53 mm | 2 | Analog Relay | LED - Red Bar Graph | Frequency | Frequency Meter | Screw Terminal | ||||
 Texmate | 0 °C | 50 °C | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Panel Mount | Rectangular | 36.07 mm | 144.53 mm | LED - Red Bar Graph | Process | Process Meter | Screw Terminal | 2 V | 200 V | ||||
 Texmate | 0 °C | 50 °C | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Panel Mount | Rectangular | 36.07 mm | 144.53 mm | 2 | Analog Relay | LED - Red Bar Graph | Voltage | Voltmeter | Screw Terminal | 200 VAC | 600 VAC | ||
 Texmate | 0 °C | 50 °C | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Panel Mount | Rectangular | 36.07 mm | 144.53 mm | 2 | Analog Relay | LED - Red Bar Graph | Current | Ammeter | Screw Terminal | 0.02 VDC | 0.2 VDC | ||
 Texmate | 0 °C | 50 °C | 85 VAC | 265 VAC | 95 VDC | 300 VDC | Panel Mount | Rectangular | 36.07 mm | 144.53 mm | 2 | Analog Relay | LED - Red Bar Graph | Current | Ammeter | Screw Terminal | 0 A | 5 A |
