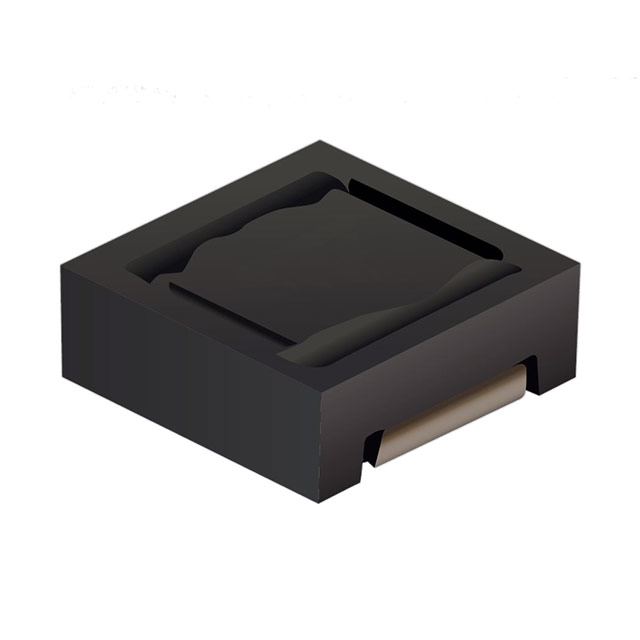

SRR4818A Series

Catalog

IND,4.8X4.8X1.8MM,2.2UH30%,3.5A,SHDSMD /TAPE & REEL - 7" REEL

Part	Current Rating (Amps)	Frequency - Self Resonant	Tolerance	Package / Case	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Ratings	Material - Core	Inductance Frequency - Test	Mounting Type	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. SRR4818A-2R2Y	3.5 A	90 MHz	30 %	Nonstandard	2.2 µH	4.8 mm	4.8 mm	0.189 in	0.189 "	-40 C	150 °C	Drum Core Wirewound	AEC-Q200	Ferrite	100 kHz	Surface Mount	45 mOhm	0.079 in	2 mm	Shielded	2.43 A
Bourns Inc. SRR4818A-150M	1.5 A	30 MHz	20 %	Nonstandard	15 µH	4.8 mm	4.8 mm	0.189 in	0.189 "	-40 C	150 °C	Drum Core Wirewound	AEC-Q200	Ferrite	100 kHz	Surface Mount	220 mOhm	0.079 in	2 mm	Shielded	870 mA
Bourns Inc. SRR4818A-120M	1.6 A	37 MHz	20 %	Nonstandard	12 µH	4.8 mm	4.8 mm	0.189 in	0.189 "	-40 C	150 °C	Drum Core Wirewound	AEC-Q200	Ferrite	100 kHz	Surface Mount	170 mOhm	0.079 in	2 mm	Shielded	950 mA
Bourns Inc. SRR4818A-330M	900 mA	20 MHz	20 %	Nonstandard	33 µH	4.8 mm	4.8 mm	0.189 in	0.189 "	-40 C	150 °C	Drum Core Wirewound	AEC-Q200	Ferrite	100 kHz	Surface Mount	500 mOhm	0.079 in	2 mm	Shielded	0.56 A
Bourns Inc. SRR4818A-220M	1.25 A	25 MHz	20 %	Nonstandard	22 µH	4.8 mm	4.8 mm	0.189 in	0.189 "	-40 C	150 °C	Drum Core Wirewound	AEC-Q200	Ferrite	100 kHz	Surface Mount	360 mOhm	0.079 in	2 mm	Shielded	720 mA
Bourns Inc. SRR4818A-6R8Y	2.2 A	45 MHz	30 %	Nonstandard	6.8 µH	4.8 mm	4.8 mm	0.189 in	0.189 "	-40 C	150 °C	Drum Core Wirewound	AEC-Q200	Ferrite	100 kHz	Surface Mount		0.079 in	2 mm	Shielded	1.25 A	100 mOhm
Bourns Inc. SRR4818A-180M	1.4 A	28 MHz	20 %	Nonstandard	18 µH	4.8 mm	4.8 mm	0.189 in	0.189 "	-40 C	150 °C	Drum Core Wirewound	AEC-Q200	Ferrite	100 kHz	Surface Mount	280 mOhm	0.079 in	2 mm	Shielded	790 mA
