BLP10 Series

Catalog

RF MOSFET LDMOS 50V 4HSOP

Part	Voltage - Rated	Gain	Mounting Type	Current - Test	Current Rating (Amps)	Power - Output	Voltage - Test	Frequency	Package / Case	Package / Case	Supplier Device Package	Configuration
Ampleon USA Inc. BLP10H630PGY	110 V	18 dBi	Surface Mount	20 mA	1.4 µA	30 W	50 V	1 GHz	0.173 " 4.4 mm	4-BESOP	4-HSOP

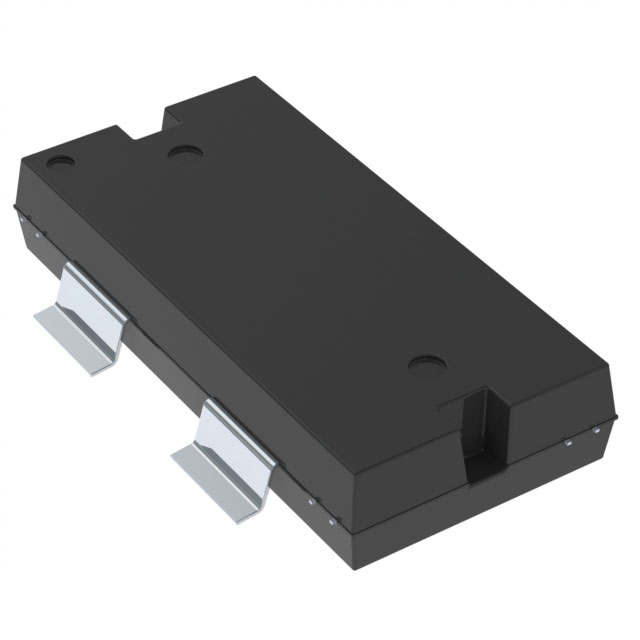

Ampleon USA Inc. BLP10H690PY	110 V	18 dBi		60 mA	1.4 µA	90 W	50 V	1 GHz		SOT-1223-2	4-HSOPF
Ampleon USA Inc. BLP10H610Z	104 V	22 dBi	Surface Mount	60 mA		10 W	50 V	860 MHz		12-VDFN Exposed Pad	12-HVSON (6x5)	Common Source Dual
Ampleon USA Inc. BLP10H660PY	110 V	18 dBi		40 mA	1.4 µA	60 W	50 V	1 GHz		SOT-1223-2	4-HSOPF
Ampleon USA Inc. BLP10H6120PY	110 V	18 dBi		80 mA	1.4 µA	120 W	50 V	1 GHz		SOT-1223-2	4-HSOPF
Ampleon USA Inc. BLP10H603AZ	104 V	22.8 dB	Surface Mount	15 mA		2.5 W	50 V	860 MHz		12-VDFN Exposed Pad	12-HVSON (6x4)
Ampleon USA Inc. BLP10H603Z	104 V	22.8 dB	Surface Mount	15 mA		2.5 W	50 V	860 MHz		12-VDFN Exposed Pad	12-HVSON (6x5)
Ampleon USA Inc. BLP10H630PY	110 V	18 dBi		20 mA	1.4 µA	30 W	50 V	1 GHz		SOT-1223-2	4-HSOPF
Ampleon USA Inc. BLP10H610AZ	104 V	22 dBi	Surface Mount	60 mA		10 W	50 V	860 MHz		12-VDFN Exposed Pad	12-HVSON (6x5)	Common Source Dual
Ampleon USA Inc. BLP10H605Z	104 V	22.4 dB	Surface Mount	30 mA		5 W	50 V	860 MHz		12-VDFN Exposed Pad	12-HVSON (6x5)	Common Source Dual
