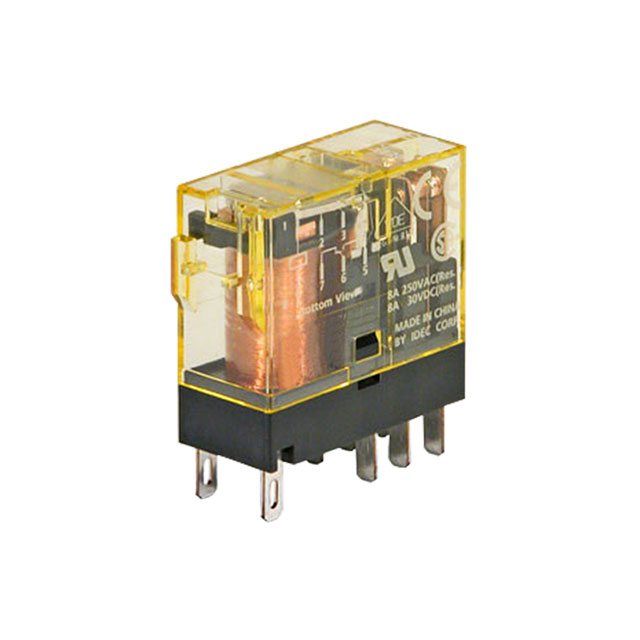

RJ2S-C Series
Manufacturer: IDEC
Beta
⌘K
POWER RELAY, DPDT, 24 VDC, 8 A, RJ SERIES, SOCKET, NON LATCHING
| Part | Coil Resistance | Contact Rating (Current) | Coil Type | Switching Voltage | Coil Current | Contact Material | Termination Style | Relay Type | Features | Must Release Voltage | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Approval Agency | Release Time | Coil Voltage | Operate Time | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 1.08 kOhms | 8 A | Non Latching | 250 VAC | 25.7 mA | Silver Nickel (AgNi) | Plug In | General Purpose | Diode Lighted Indicator | 2.4 VDC | 16.8 VDC | 70 °C | -40 C | DPDT (2 Form C) | CE CSA cURus VDE | 20 ms | 24 VDC | 20 ms | Socketable | |
 IDEC | 1.08 kOhms | 8 A | Non Latching | 250 VAC | 25.7 mA | Silver Nickel (AgNi) | Plug In | General Purpose | Lighted Indicator | 2.4 VDC | 16.8 VDC | 70 °C | -40 C | DPDT (2 Form C) | CE CSA cURus VDE | 10 ms | 24 VDC | 15 ms | Socketable | |
 IDEC | 6.4 kOhms | 8 A | Non Latching | 250 VAC | 7.5 mA | Silver Nickel (AgNi) | Plug In | General Purpose | 36 VAC | 96 VAC | 70 °C | -40 C | DPDT (2 Form C) | CE CSA cURus VDE | 10 ms | 120 VAC | 15 ms | Socketable | ||
 IDEC | 47.2 Ohms | 8 A | Non Latching | 30 VDC 250 VAC | 106 mA | Silver Nickel (AgNi) | Plug In Quick Connect | General Purpose | Diode | 0.5 VDC | 3.5 VDC | 70 °C | -40 C | DPDT (2 Form C) | CE CSA cURus VDE | 10 ms | 5 VDC | 15 ms | Socketable | 0.187 in 4.7 mm |
IDEC | 25.57 kOhms | 8 A | Non Latching | 30 VDC 250 VAC | 3.7 mA | Silver Nickel (AgNi) | General Purpose | 72 VAC/DC | 192 VAC | 70 °C | -40 C | DPDT (2 Form C) | CE CSA cURus VDE | 10 ms | 240 VAC/DC | 15 ms | Socketable | |||
IDEC | 25.57 kOhms | 8 A | Non Latching | 250 VAC | 3.7 mA | Silver Nickel (AgNi) | Plug In | General Purpose | Lighted Indicator | 72 VAC/DC | 192 VAC | 70 °C | -40 C | DPDT (2 Form C) | CE CSA cURus VDE | 10 ms | 240 VAC/DC | 15 ms | Socketable | |
IDEC | 271 Ohms | 8 A | Non Latching | 30 VDC 250 VAC | 44.2 mA | Silver Nickel (AgNi) | General Purpose | 1.2 VDC | 8.4 VDC | 70 °C | -40 C | DPDT (2 Form C) | CE CSA cURus VDE | 10 ms | 12 VDC | 15 ms | Socketable |
