1744524 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

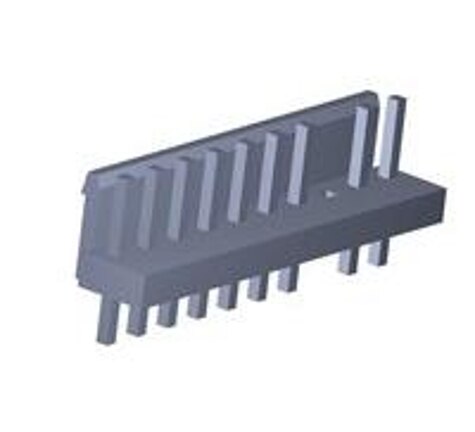

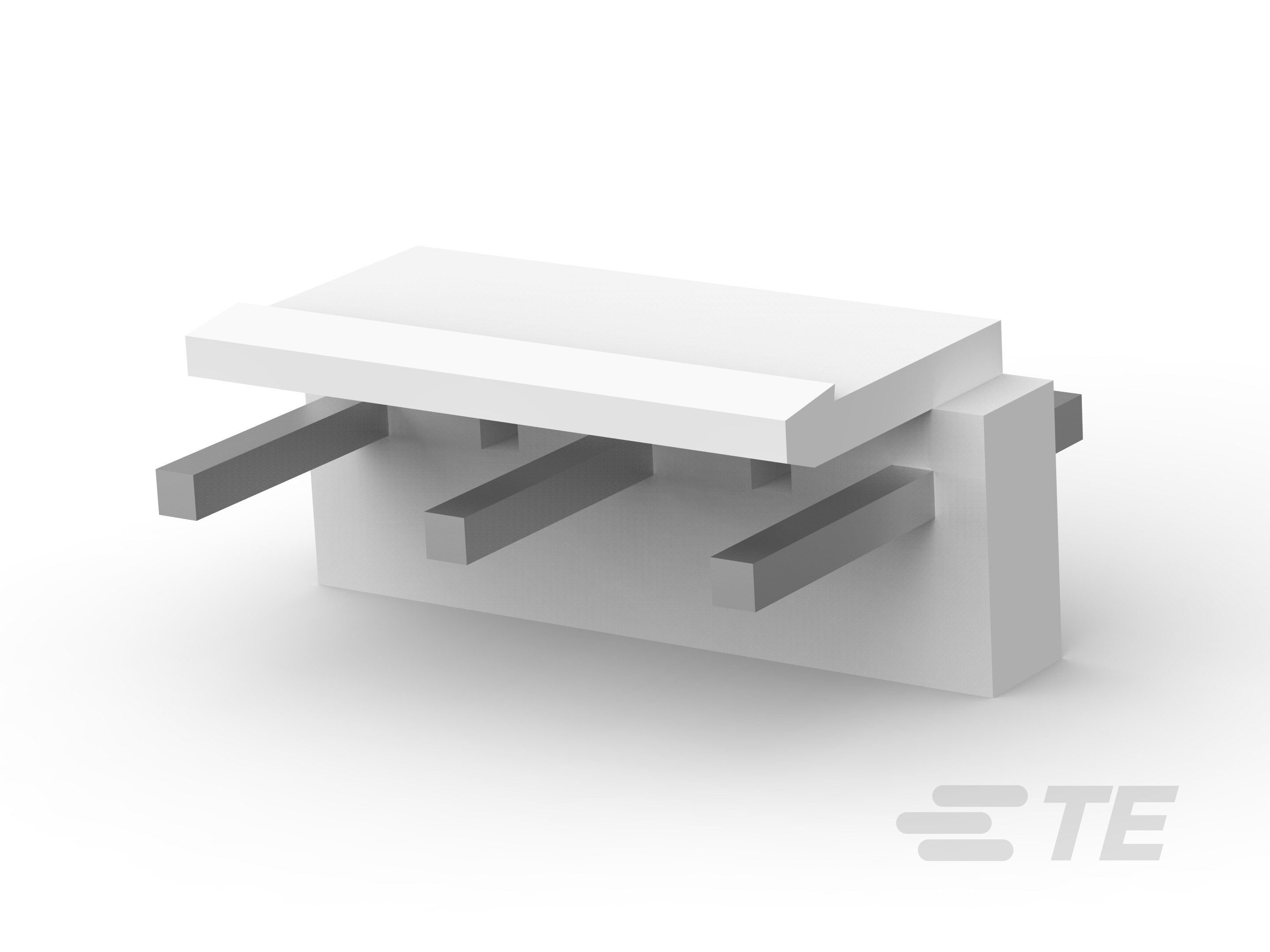

HEADERS & WIRE HOUSINGS EP 10P HEADER ASY NO 8 PIN
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Overall Contact Length | Overall Contact Length | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Current Rating (Amps) | Termination | Contact Material | Contact Finish - Post | Connector Type | Contact Type | Style | Insulation Color | Contact Shape | Number of Rows | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Contact Length - Post | Contact Length - Post | Contact Length - Mating | Contact Length - Mating | Mounting Type | Overall Contact Length [x] | Overall Contact Length [x] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Shrouding | Number of Positions Loaded | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | 0.575 in | 14.61 mm | UL94 V-0 | 3.96 mm | 0.156 in | 9.4 mm | 0.37 in | 8 A | Solder | Brass | Tin | Header | Male Pin | Board to Cable/Wire | Natural | Square | 1 | Nylon Polyamide (PA) | 120 µin | 3.05 µm | 250 VAC | 3.68 mm | 0.145 in | 0.303 in | 7.7 mm | Through Hole | 14.6 mm | 0.575 in | 10 | -30 ░C | 105 ░C | Locking Ramp | Shrouded - 1 Wall | All | |
 TE Connectivity AMP Connectors | UL94 V-0 | 3.96 mm | 0.156 in | 9.4 mm | 0.37 in | Solder | Brass | Tin | Header | Male Pin | Board to Cable/Wire | Natural | Square | 1 | Nylon Polyamide (PA) | 3.68 mm | 0.145 in | 0.303 in | 7.7 mm | Through Hole | 14.6 mm | 0.575 in | 5 | Locking Ramp | Shrouded - 1 Wall | 3 | |||||||||||
 TE Connectivity AMP Connectors | UL94 V-0 | 3.96 mm | 0.156 in | 9.4 mm | 0.37 in | Solder | Brass | Tin | Header | Male Pin | Board to Cable/Wire | Natural | Square | 1 | Nylon Polyamide (PA) | 3.68 mm | 0.145 in | 0.303 in | 7.7 mm | Through Hole | 14.6 mm | 0.575 in | 11 | Locking Ramp | Shrouded - 1 Wall | 9 | |||||||||||
 TE Connectivity AMP Connectors | UL94 V-0 | 3.96 mm | 0.156 in | 9.4 mm | 0.37 in | Solder | Brass | Tin | Header | Male Pin | Board to Cable/Wire | Natural | Square | 1 | Nylon Polyamide (PA) | 3.68 mm | 0.145 in | 0.303 in | 7.7 mm | Through Hole | 14.6 mm | 0.575 in | 12 | Locking Ramp | Shrouded - 1 Wall | 10 |
