392-043 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 43POS 0.100

Part	Termination Rows	Material - Insulation	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Contact Type	Card Type	Gender	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Rows
EDAC Inc. 392-043-542-112	1	Polyester Thermoplastic	Copper Alloy	Gold	-40 C	105 ░C	Black	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Single	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	43	Cantilever	Non Specified - Single Edge	Female	Through Hole	43	0.25 Ám	10 Áin	0.1 "	2.54 mm	1

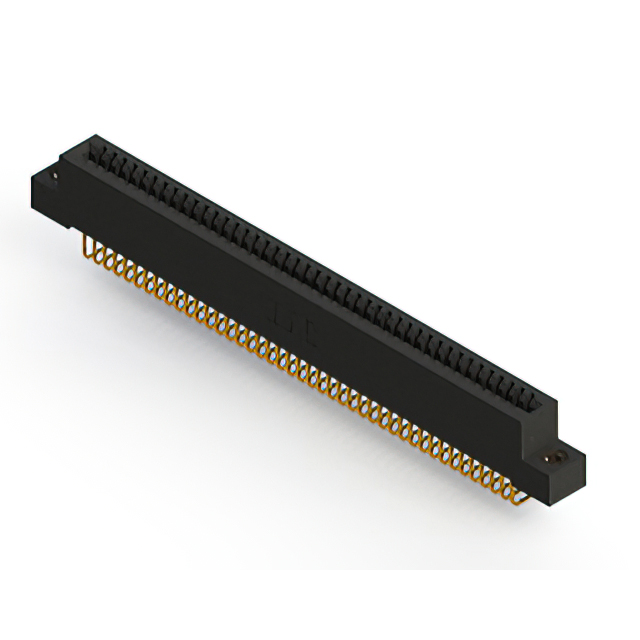

EDAC Inc. 392-043-558-108	1	Polyester Thermoplastic	Copper Alloy	Gold	-40 C	105 ░C	Black	4-40 Flush Mount Threaded Insert Top Opening			Single	Solder Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	43	Cantilever	Non Specified - Single Edge	Female	Right Angle Through Hole	43	0.25 Ám	10 Áin	0.1 "	2.54 mm	1
EDAC Inc. 392-043-558-107	1	Polyester Thermoplastic	Copper Alloy	Gold	-40 C	105 ░C	Black	Flush Mount M3 Threaded Insert Top Opening			Single	Solder Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	43	Cantilever	Non Specified - Single Edge	Female	Right Angle Through Hole	43	0.25 Ám	10 Áin	0.1 "	2.54 mm	1

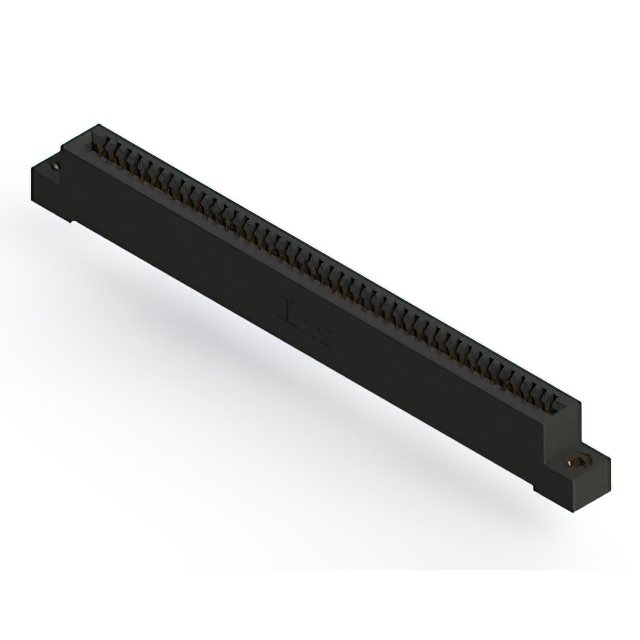

EDAC Inc. 392-043-524-107	1	Polyester Thermoplastic	Copper Alloy	Gold	-40 C	105 ░C	Black	Flush Mount M3 Threaded Insert Top Opening			Single	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	43	Cantilever	Non Specified - Single Edge	Female	Through Hole	43	0.25 Ám	10 Áin	0.1 "	2.54 mm	1
EDAC Inc. 392-043-523-102	1	Polyester Thermoplastic	Copper Alloy	Gold	-40 C	105 ░C	Black	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Single	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	43	Cantilever	Non Specified - Single Edge	Female	Through Hole	43	0.25 Ám	10 Áin	0.1 "	2.54 mm	1

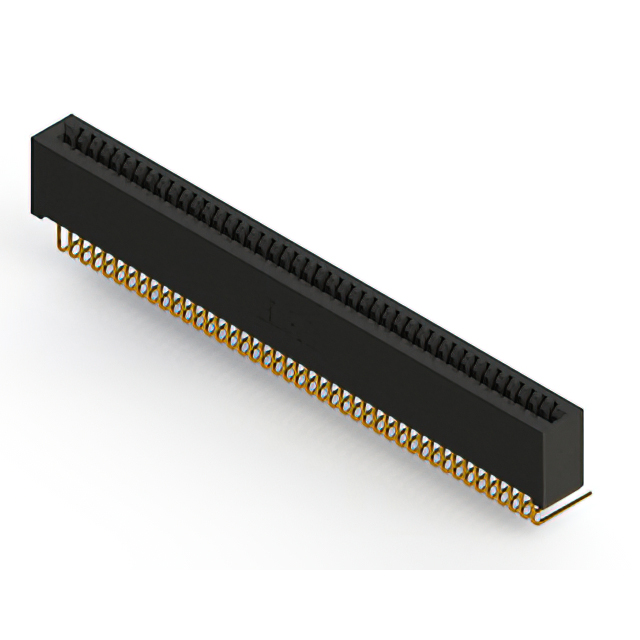

EDAC Inc. 392-043-558-101	1	Polyester Thermoplastic	Copper Alloy	Gold	-40 C	105 ░C	Black				Single	Solder Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	43	Cantilever	Non Specified - Single Edge	Female	Right Angle Through Hole	43	0.25 Ám	10 Áin	0.1 "	2.54 mm	1
EDAC Inc. 392-043-540-104	1	Polyester Thermoplastic	Copper Alloy	Gold	-40 C	105 ░C	Black	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Single	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	43	Cantilever	Non Specified - Single Edge	Female	Through Hole	43	0.25 Ám	10 Áin	0.1 "	2.54 mm	1
EDAC Inc. 392-043-541-101	1	Polyester Thermoplastic	Copper Alloy	Gold	-40 C	105 ░C	Black				Single	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	43	Cantilever	Non Specified - Single Edge	Female	Through Hole	43	0.25 Ám	10 Áin	0.1 "	2.54 mm	1
EDAC Inc. 392-043-559-102	1	Polyester Thermoplastic	Copper Alloy	Gold	-40 C	105 ░C	Black	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Single	Solder Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	43	Cantilever	Non Specified - Single Edge	Female	Right Angle Through Hole	43	0.25 Ám	10 Áin	0.1 "	2.54 mm	1

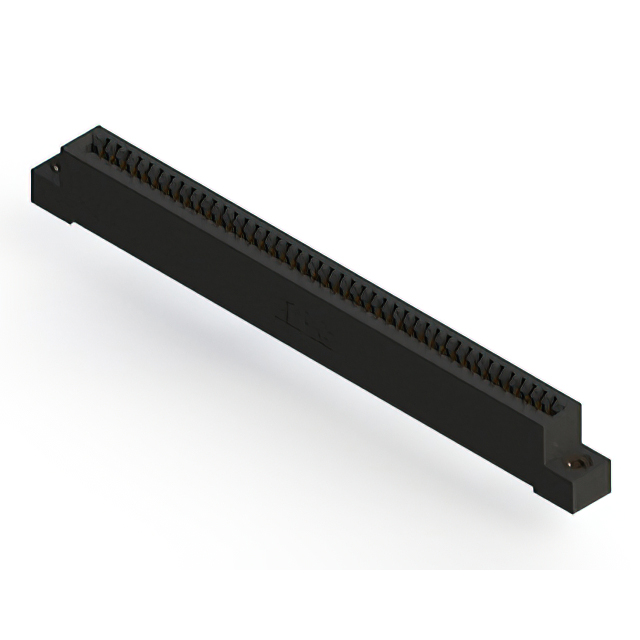

EDAC Inc. 392-043-521-107	1	Polyester Thermoplastic	Copper Alloy	Gold	-40 C	105 ░C	Black	Flush Mount M3 Threaded Insert Top Opening			Single	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	43	Cantilever	Non Specified - Single Edge	Female	Through Hole	43	0.25 Ám	10 Áin	0.1 "	2.54 mm	1
