1969717 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

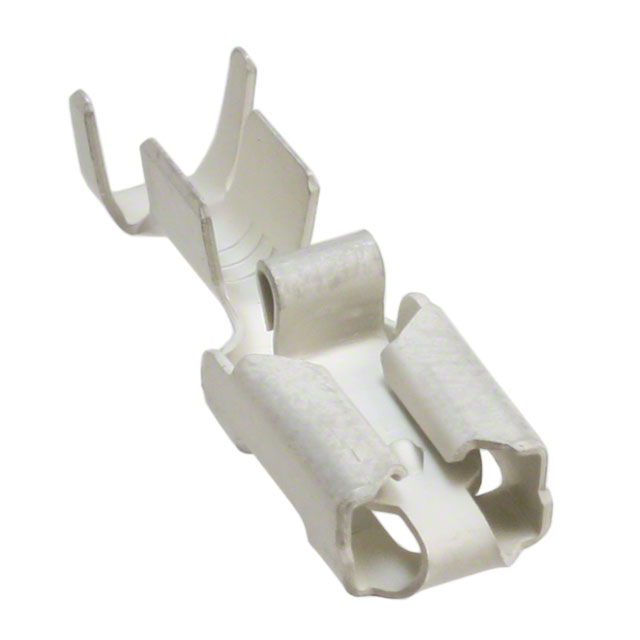

HSG, REC., POS-LOCK, MK I 2P, 6.35SR BLK

Part	Length - Overall [x]	Length - Overall [x]	Termination	Contact Material	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Gender	Terminal Type	Tab Width	Tab Width	Insulation	Mounting Type	Tab Thickness	Tab Thickness	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]
TE Connectivity Raychem Cable Protection 1-1969717-2

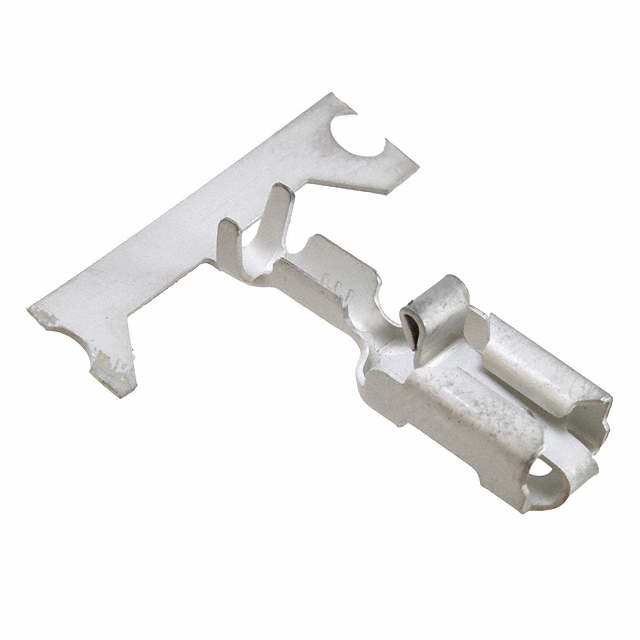

TE Connectivity Raychem Cable Protection 160759-3	0.878 in	22.3 mm	Crimp	Brass	0.091 in	3.3 mm	2.31 mm	0.13 "	Female	Standard	6.35 mm	0.25 in	Non-Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Tin	16 AWG	20 AWG

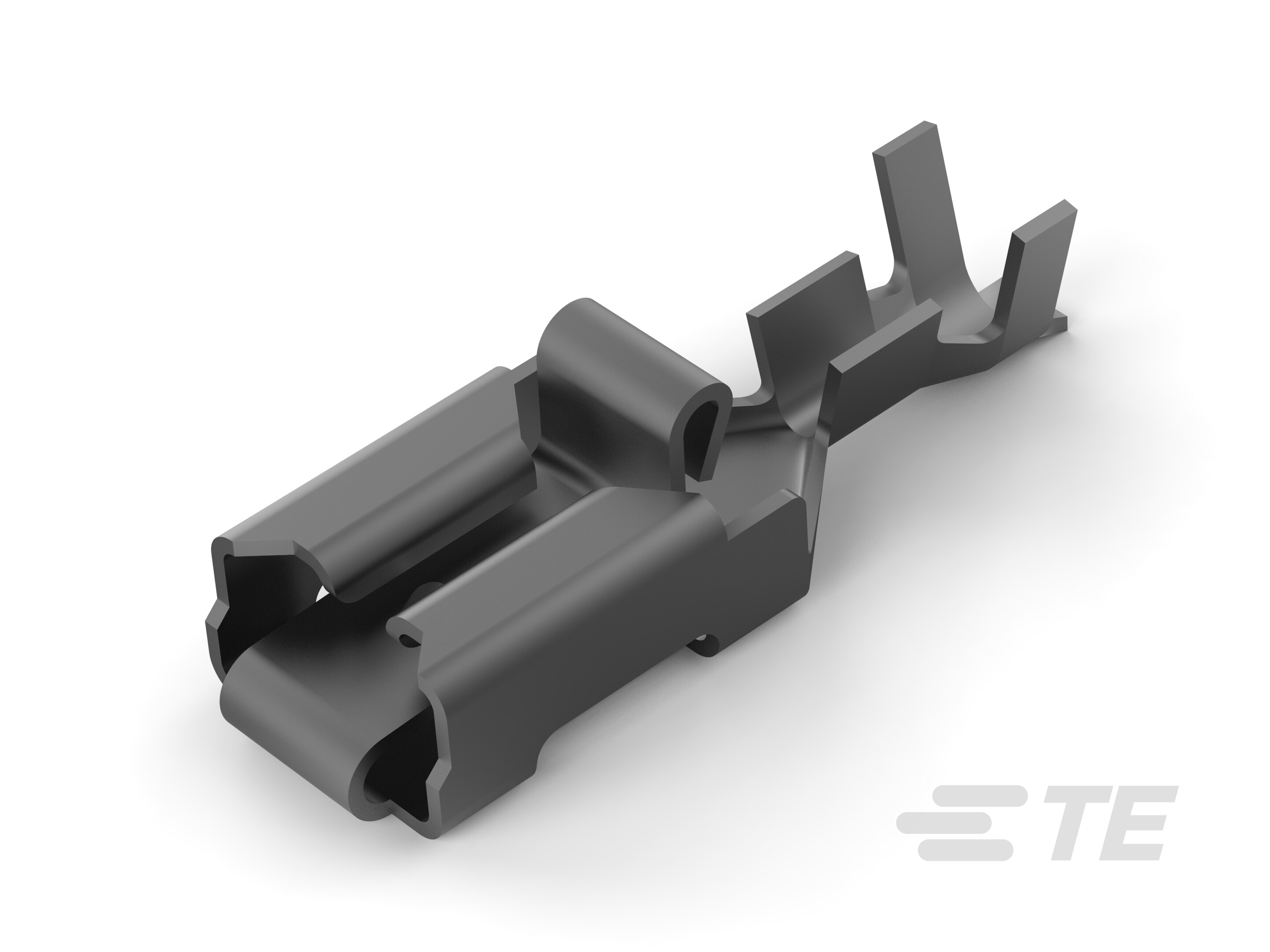

TE Connectivity Raychem Cable Protection 880646-6	0.811 in	20.6 mm	Crimp	Phosphor Bronze					Female	Standard	6.35 mm	0.25 in	Non-Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Tin	17 AWG	20 AWG	2 mm	3.3 mm	0.13 in	0.079 in

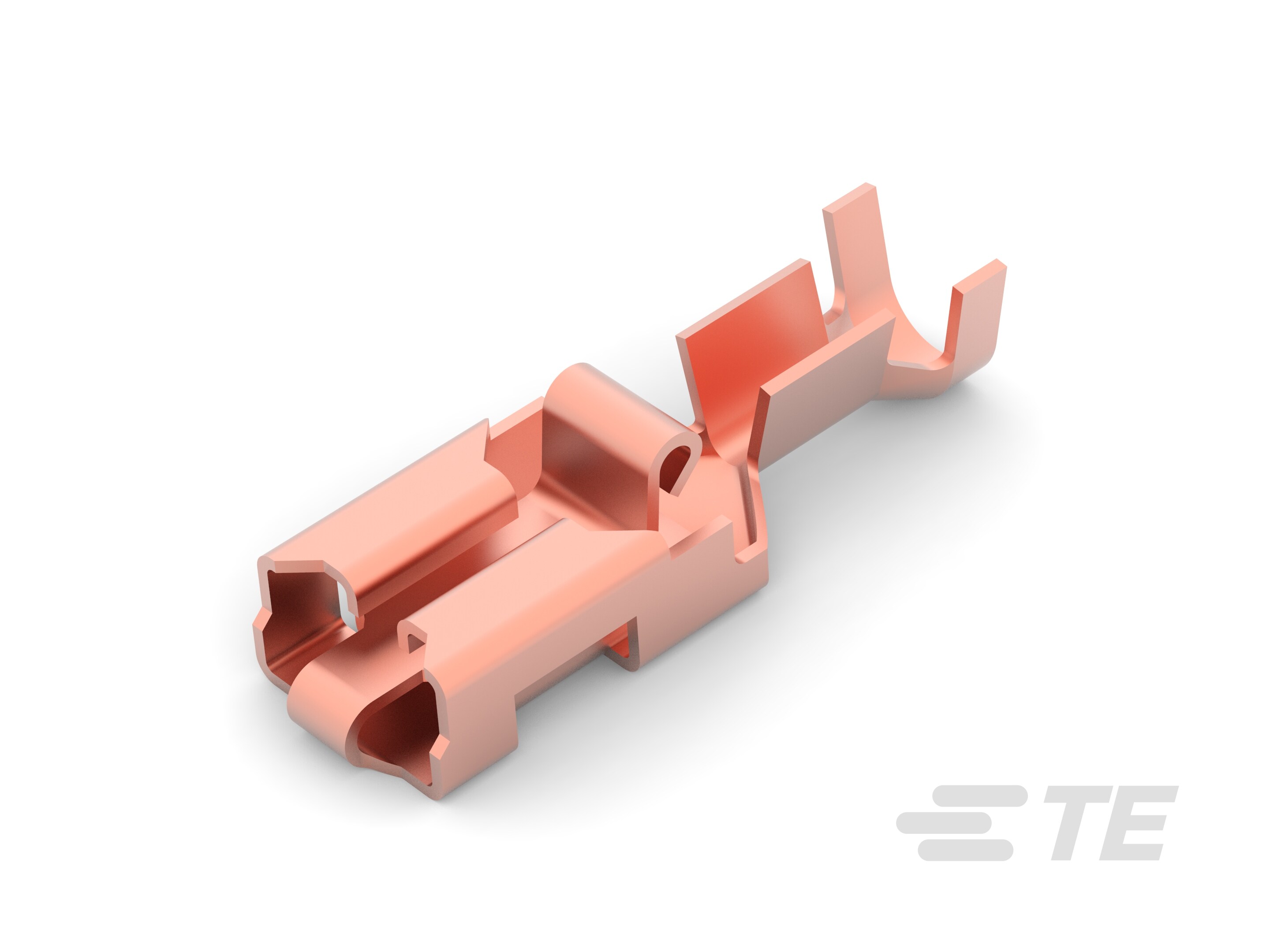

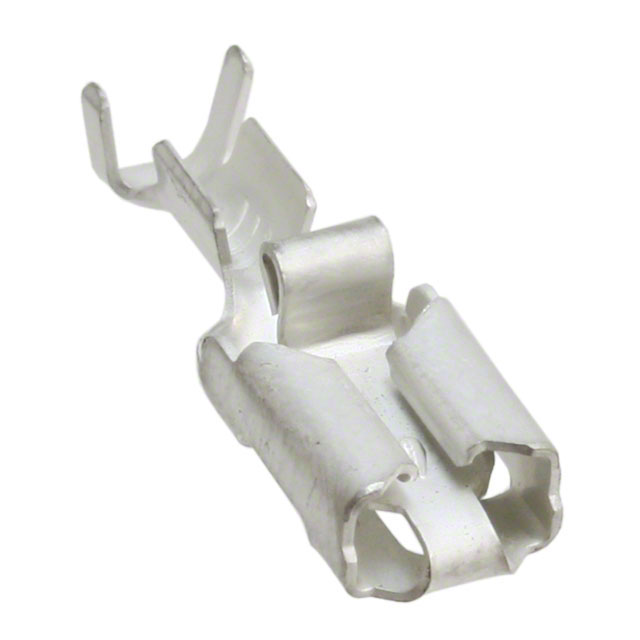

TE Connectivity Raychem Cable Protection 154718-2	0.886 in	22.5 mm	Crimp	Phosphor Bronze					Female	Standard	6.35 mm	0.25 in	Non-Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm		14 AWG	18 AWG	2.39 mm	3.2 mm	0.126 in	0.094 "
TE Connectivity Raychem Cable Protection 160759-4	0.878 in	22.3 mm	Crimp	Phosphor Bronze	0.091 in	3.3 mm	2.31 mm	0.13 "	Female	Standard	6.35 mm	0.25 in	Non-Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Tin	16 AWG	20 AWG
TE Connectivity Raychem Cable Protection 2-160759-9	0.878 in	22.3 mm	Crimp	Nickel Silver	0.091 in	3.3 mm	2.31 mm	0.13 "	Female	Standard	6.35 mm	0.25 in	Non-Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm		16 AWG	20 AWG

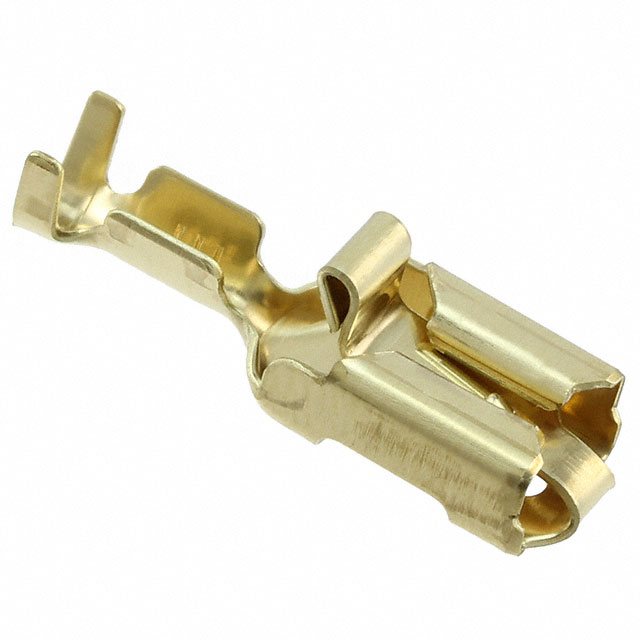

TE Connectivity Raychem Cable Protection 160759-1	0.878 in	22.3 mm	Crimp	Brass	0.091 in	3.3 mm	2.31 mm	0.13 "	Female	Standard	6.35 mm	0.25 in	Non-Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm		16 AWG	20 AWG

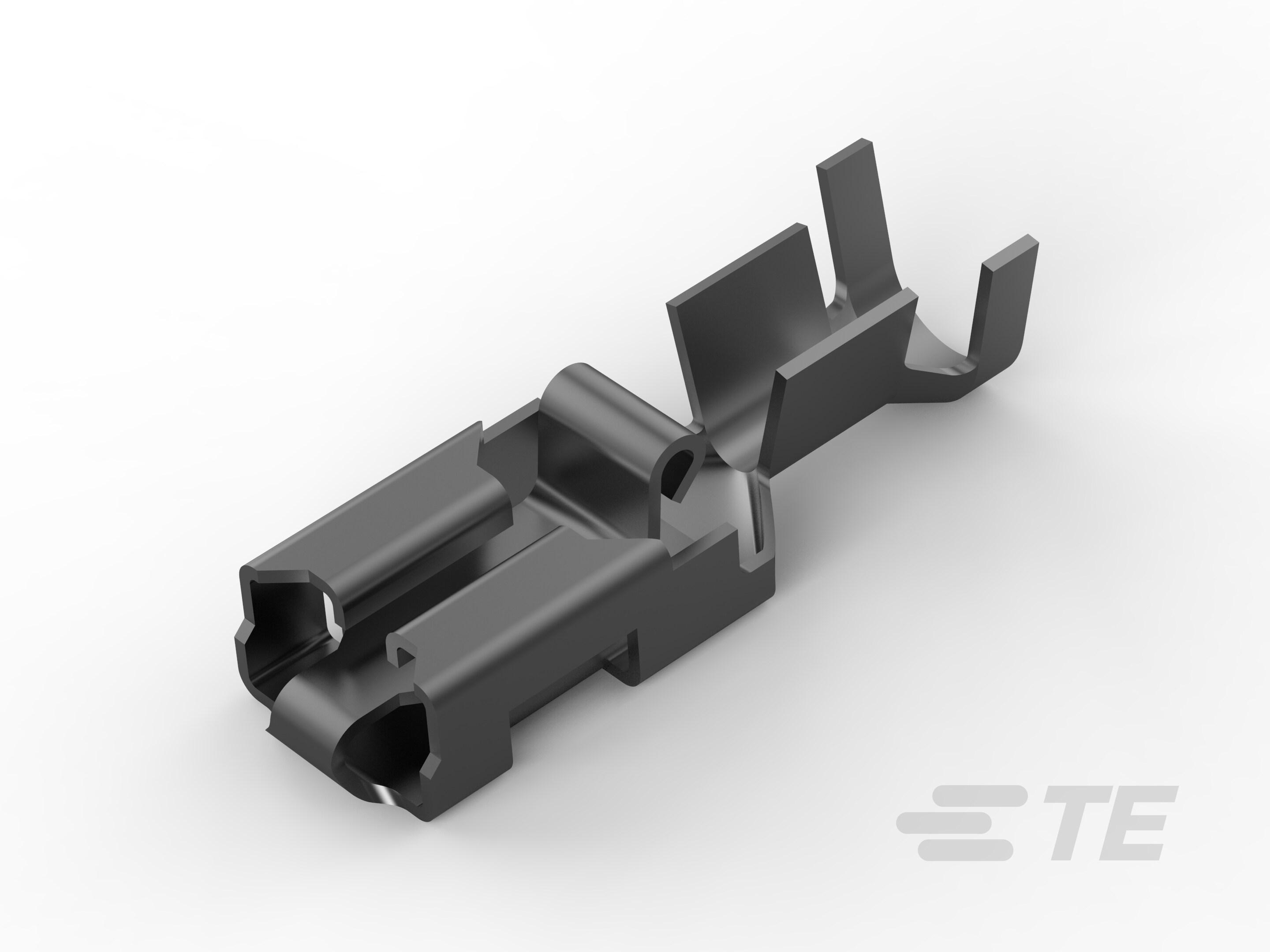

TE Connectivity Raychem Cable Protection 154717-7	0.886 in	22.5 mm	Crimp	Phosphor Bronze	0.142 "	4.29 mm	3.61 mm	0.169 in	Female	Standard	6.35 mm	0.25 in	Non-Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Tin	11 AWG	14 AWG
TE Connectivity Raychem Cable Protection 154718-4	0.886 in	22.5 mm	Crimp	Phosphor Bronze					Female	Standard	6.35 mm	0.25 in	Non-Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Tin	14 AWG	18 AWG	2.39 mm	3.2 mm	0.126 in	0.094 "
TE Connectivity Raychem Cable Protection 1-160759-1	0.878 in	22.3 mm	Crimp	Brass	0.091 in	3.3 mm	2.31 mm	0.13 "	Female	Standard	6.35 mm	0.25 in	Non-Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Tin	16 AWG	20 AWG
