AA-060-24 Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K

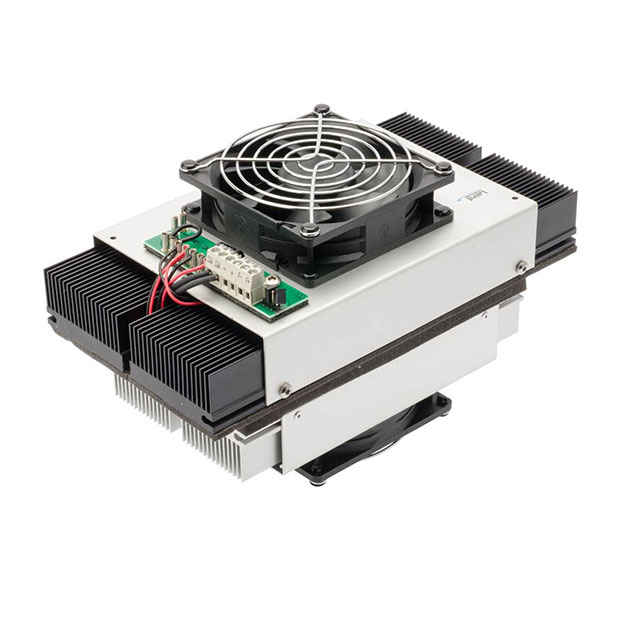

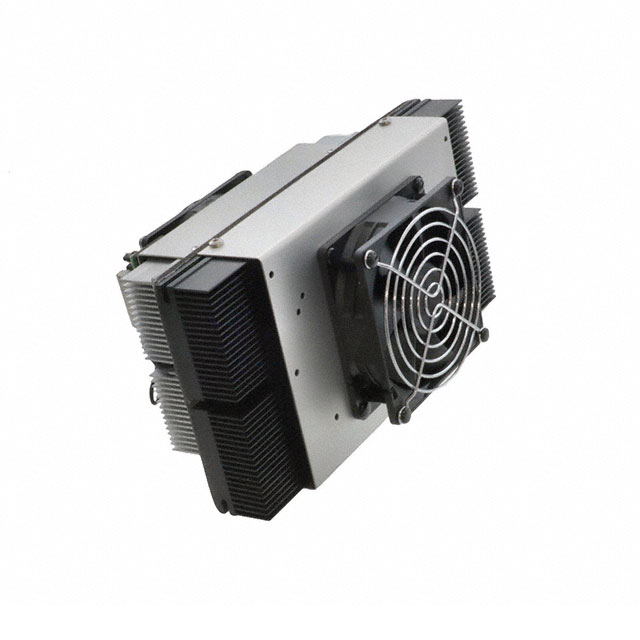

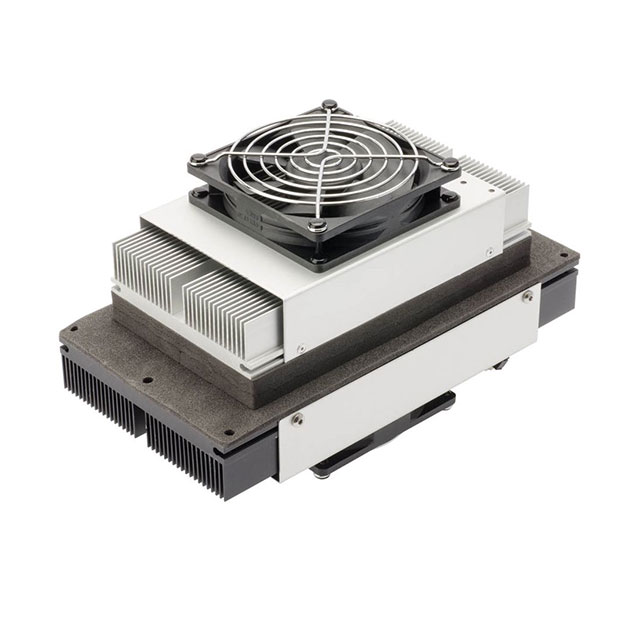

THERMOELECT ASSY AIR-AIR 58W
| Part | Power - Cooling | Current | Dimensions - Overall [y] | Dimensions - Overall [z] | Dimensions - Overall [x] | Weight | Weight | Voltage | Heat Transfer Type | Operating Temperature [Min] | Operating Temperature [Max] | Fan Location | Power - Input |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 58 W | 3.1 A | 122 mm | 146.9 mm | 230 mm | 5.5 lbs | 2.5 kg | 24 V | Air to Air | -10 °C | 51 °C | Cold Side Warm Side | 74 W |
