MAX20049 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

MINI PMIC FOR REMOTE CAMERA POWE

Part	Qualification	Number of Outputs	Voltage/Current - Output 3	Voltage/Current - Output 3	Package / Case	Frequency - Switching	Grade	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage/Current - Output 1	Voltage/Current - Output 1	Mounting Type	Topology	Supplier Device Package	Voltage/Current - Output 2	Voltage/Current - Output 2	Outputs and Type	Outputs and Type	Main Purpose	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Board Type	Regulator Topology	Utilized IC / Part	Current - Output
Analog Devices Inc./Maxim Integrated MAX20049ATEB/VY+	AEC-Q100	4	- Fixed	3.3 V	16-WFQFN Exposed Pad	2.2 MHz	Automotive	5 V	17 V	125 °C	-40 °C	3 V 500 mA	Fixed	Surface Mount Wettable Flank	Linear (LDO) (2) Step-Down (Buck) (2)	16-SW-TQFN (3x3)	3.1 V	- Fixed
Analog Devices Inc./Maxim Integrated MAX20049ATED/VY+	AEC-Q100	4	- Fixed	3.3 V	16-WFQFN Exposed Pad	2.2 MHz	Automotive	5 V	17 V	125 °C	-40 °C	3 V 500 mA	Fixed	Surface Mount Wettable Flank	Linear (LDO) (2) Step-Down (Buck) (2)	16-SW-TQFN (3x3)	3.1 V	- Fixed
Analog Devices Inc./Maxim Integrated MAX20049CATEA/VY+T	AEC-Q100	4	- Fixed	3.3 V	16-WFQFN Exposed Pad	2.2 MHz	Automotive	4 V	17 V	125 °C	-40 °C	3 V 500 mA	Fixed	Surface Mount Wettable Flank	Linear (LDO) (2) Step-Down (Buck) (2)	16-SW-TQFN (3x3)	3.1 V	- Fixed

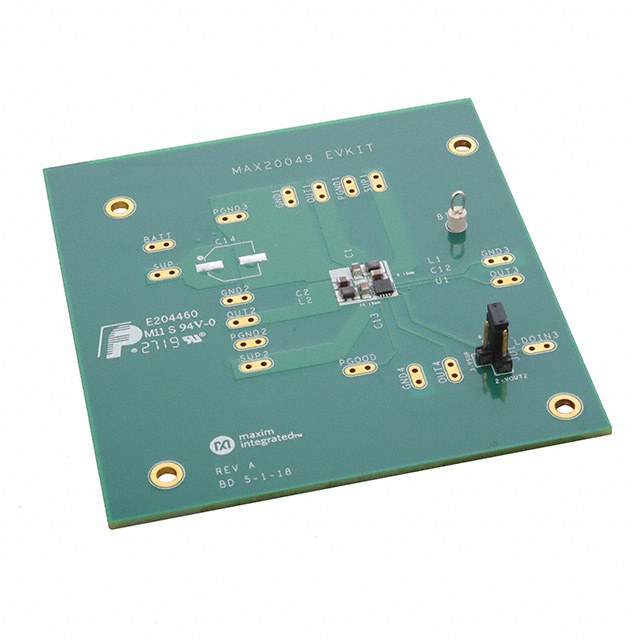

Analog Devices Inc./Maxim Integrated MAX20049EVKIT#						2.2 MHz													4	Non-Isolated	DC/DC Step Down	Board(s)	18 V	2.7 V	1.2 V 1.8 V 3.3 V 3.8 V	Fully Populated	Buck	MAX20049	50 mA 140 mA 200 mA 250 mA
Analog Devices Inc./Maxim Integrated MAX20049CATEA/VY+	AEC-Q100	4	- Fixed	3.3 V	16-WFQFN Exposed Pad	2.2 MHz	Automotive	4 V	17 V	125 °C	-40 °C	3 V 500 mA	Fixed	Surface Mount Wettable Flank	Linear (LDO) (2) Step-Down (Buck) (2)	16-SW-TQFN (3x3)	3.1 V	- Fixed
Analog Devices Inc./Maxim Integrated MAX20049ATEF/VY+T	AEC-Q100	4	- Fixed	3.3 V	16-WFQFN Exposed Pad	2.2 MHz	Automotive	5 V	17 V	125 °C	-40 °C	3 V 500 mA	Fixed	Surface Mount Wettable Flank	Linear (LDO) (2) Step-Down (Buck) (2)	16-SW-TQFN (3x3)	3.1 V	- Fixed
Analog Devices Inc./Maxim Integrated MAX20049DATEE/VY+T	AEC-Q100	4	- Fixed	3.3 V	16-WFQFN Exposed Pad	2.2 MHz	Automotive	3.5 V	17 V	125 °C	-40 °C	3 V 500 mA	Fixed	Surface Mount Wettable Flank	Linear (LDO) (2) Step-Down (Buck) (2)	16-SW-TQFN (3x3)	3.1 V	- Fixed
Analog Devices Inc./Maxim Integrated MAX20049ATEB/VY+T	AEC-Q100	4	- Fixed	3.3 V	16-WFQFN Exposed Pad	2.2 MHz	Automotive	5 V	17 V	125 °C	-40 °C	3 V 500 mA	Fixed	Surface Mount Wettable Flank	Linear (LDO) (2) Step-Down (Buck) (2)	16-SW-TQFN (3x3)	3.1 V	- Fixed
