25014 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

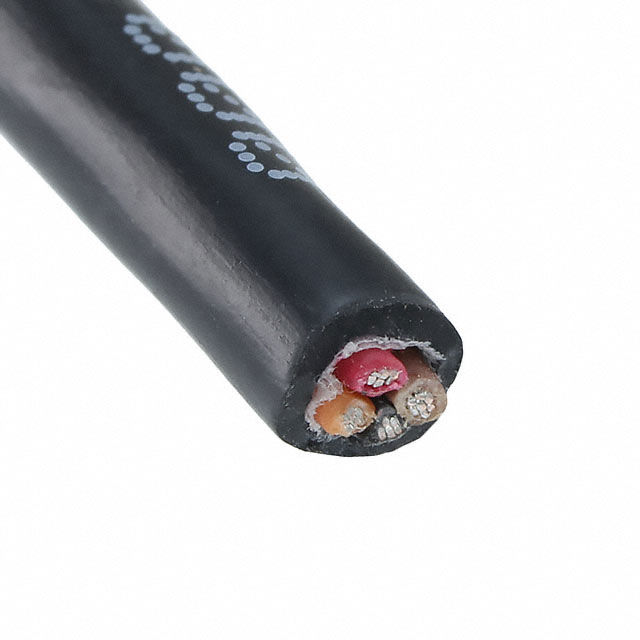

CABLE 4COND 24AWG BLACK FEET
| Part | Spool Size [x] | Spool Size [x] | Voltage | Cable Type | Wire Gauge | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket Color | Features | Length | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 304.8 m | 1000 ft | 300 VDC | Multi-Conductor | 24 AWG | 4 | 7 | 32 AWG | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Polyurethane (PU) | -30 ░C | 90 °C | 0.175 in | 4.45 mm | Copper Tinned | Black | Biological Compatibility Rip Cord | Enter Number of Feet in Order Quantity | ISO 10993 UL Style 20668 | ||
 ALPHA WIRE | 300 VDC | Multi-Conductor | 24 AWG | 4 | 7 | 32 AWG | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Polyurethane (PU) | -30 ░C | 90 °C | 0.175 in | 4.45 mm | Copper Tinned | Black | Biological Compatibility Rip Cord | ISO 10993 UL Style 20668 | 100 ft | 30.5 m |
