GSC.1S Series

Manufacturer: LEMO

Catalog

CABLE GRIP 2.29-2.79MM M9 BRASS

Part	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Thread Size	Ingress Protection	Type	Material	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Color	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
LEMO GSC.1S.290.NM27	0.197 in	5 mm	7.5 mm	0.295 in	0.11 in	2.79 mm	M9x0.6	IP50	Cable Grip	Brass	2.29 mm	0.09 "	Silver
LEMO GSC.1S.290.ND72Z	0.197 in	5 mm	7.5 mm	0.295 in	0.283 in		M9x0.6	IP50	Cable Grip	Brass	6.2 mm	0.244 in	Silver	7.2 mm	-55 C	250 °C	Collet Nut
LEMO GSC.1S.290.NM31Z	0.197 in	5 mm	7.5 mm	0.295 in			M9x0.6	IP50	Cable Grip	Brass	2.29 mm	0.09 "	Silver				Collet Nut
LEMO GSC.1S.210.LN
LEMO GSC.1S.290.ND52	0.197 in	5 mm	7.5 mm	0.295 in			M9x0.6	IP50	Cable Grip	Brass		0.165 in	Silver		-55 C	250 °C		4.2 mm	5.2 mm	0.205 in

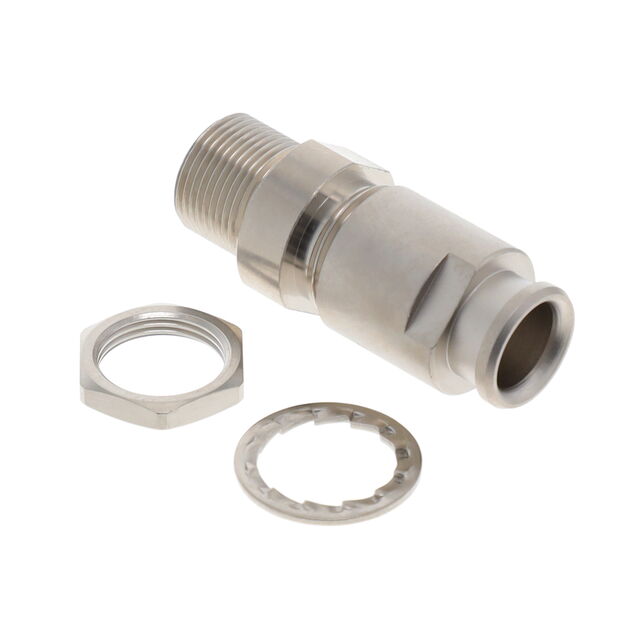

LEMO GSC.1S.290.ND52Z	0.197 in	5 mm	7.5 mm	0.295 in			M9x0.6	IP50	Cable Grip	Brass		0.165 in	Silver		-55 C	250 °C	Collet Nut	4.2 mm	5.2 mm	0.205 in
LEMO GSC.1S.290.ND72	0.197 in	5 mm	7.5 mm	0.295 in	0.283 in		M9x0.6	IP50	Cable Grip	Brass	6.2 mm	0.244 in	Silver	7.2 mm	-55 C	250 °C
LEMO GSC.1S.290.ND76	0.197 in	5 mm	7.5 mm	0.295 in			M9x0.6	IP50	Cable Grip	Brass		0.283 in	Silver					7.2 mm	7.62 mm	0.3 in
LEMO GSC.1S.290.ND62	0.197 in	5 mm	7.5 mm	0.295 in		6.2 mm	M9x0.6	IP50	Cable Grip	Brass			Silver		-55 C	250 °C				0.244 in	0.205 in	5.2 mm
LEMO GSC.1S.290.ND42Z	0.197 in	5 mm	7.5 mm	0.295 in		4.32 mm	M9x0.6	IP50	Cable Grip	Brass		0.13 in	Silver				Collet Nut	3.3 mm		0.17 in
