200MDP1 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Actuator Material	Electrical Life	Illumination	Actuator Type	Features	Termination Style	Panel Cutout Dimensions [diameter]	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Circuit	Voltage Rating - AC	Actuator Length [x]	Switch Function	Mounting Type	Current Rating (Amps)

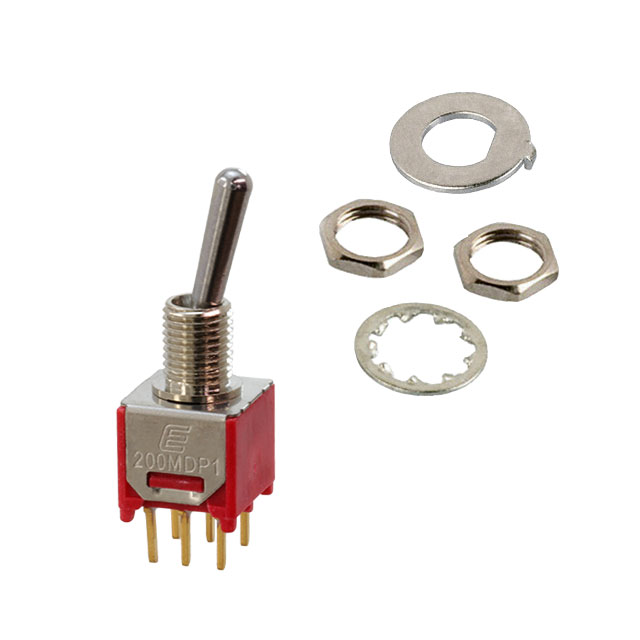

E-Switch 200MDP1T1B1M2REH	Brass Chrome Plated	30000 Cycles	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	PC Pin	4.95 mm	10-48	85 °C	-30 ░C	20 V	DPDT	20 V	9.4 mm	On-On	Panel Mount	0.4 VA
E-Switch 200MDP1T3B2M7RE	Brass Chrome Plated	30000 Cycles	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	PC Pin		Unthreaded	85 °C	-30 ░C	20 V	DPDT	20 V		On-On	Right Angle Through Hole Vertical	0.4 VA
E-Switch 200MDP1T5B4M6QE	Brass Chrome Plated	30000 Cycles	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	PC Pin		Unthreaded	85 °C	-30 ░C	28 V	DPDT	120 V	7.88 mm	On-On	Right Angle Through Hole	3 A

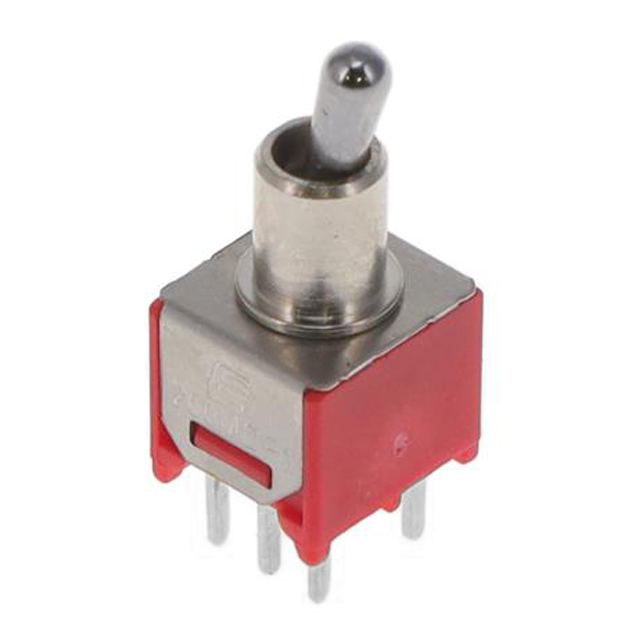

E-Switch 200MDP1T2B2M2QE	Brass Chrome Plated	30000 Cycles	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	PC Pin		Unthreaded	85 °C	-30 ░C	28 V	DPDT	120 V	5.33 mm	On-On	Through Hole	3 A
E-Switch 200MDP1T2B1M6RE	Brass Chrome Plated	30000 Cycles	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	PC Pin	4.95 mm	10-48	85 °C	-30 ░C	20 V	DPDT	20 V	5.33 mm	On-On	Panel Mount Right Angle	0.4 VA
E-Switch 200MDP1T4B1M6RE	Brass Chrome Plated	30000 Cycles	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	PC Pin	4.95 mm	10-48	85 °C	-30 ░C	20 V	DPDT	20 V	0.5 in	On-On	Panel Mount Right Angle	0.4 VA
E-Switch 200MDP1T3B4M7QE	Brass Chrome Plated	30000 Cycles	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	PC Pin		Unthreaded	85 °C	-30 ░C	28 V	DPDT	120 V		On-On	Right Angle Through Hole Vertical	3 A
E-Switch 200MDP1T2B4M2QE	Brass Chrome Plated	30000 Cycles	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	PC Pin		Unthreaded	85 °C	-30 ░C	28 V	DPDT	120 V	5.33 mm	On-On	Through Hole	3 A
E-Switch 200MDP1T2B1M1QEH	Brass Chrome Plated	30000 Cycles	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	Solder Lug	4.95 mm	10-48	85 °C	-30 ░C	28 V	DPDT	120 V	5.33 mm	On-On	Panel Mount	3 A
E-Switch 200MDP1T1B4M7QE	Brass Chrome Plated	30000 Cycles	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	PC Pin		Unthreaded	85 °C	-30 ░C	28 V	DPDT	120 V	9.4 mm	On-On	Right Angle Through Hole Vertical	3 A
