796692 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN EUROSTYLE BLOCK F 24 POS 2.54MM SOLDER ST THRU-HOLE 17.5A/CONTACT CARTON

Part	Clamp Material - Plating [custom]	Clamp Material - Plating [custom]	Torque - Screw	Torque - Screw	Contact Material - Plating	Screw Thread	Screw Material - Plating	Features	Voltage	Color	Mounting Type	Number of Levels	Positions Per Level	Wire Gauge [Max]	Wire Gauge [Min]	Wire Termination	Current	Mating Orientation	Pitch	Pitch	Positions Per Level [custom]

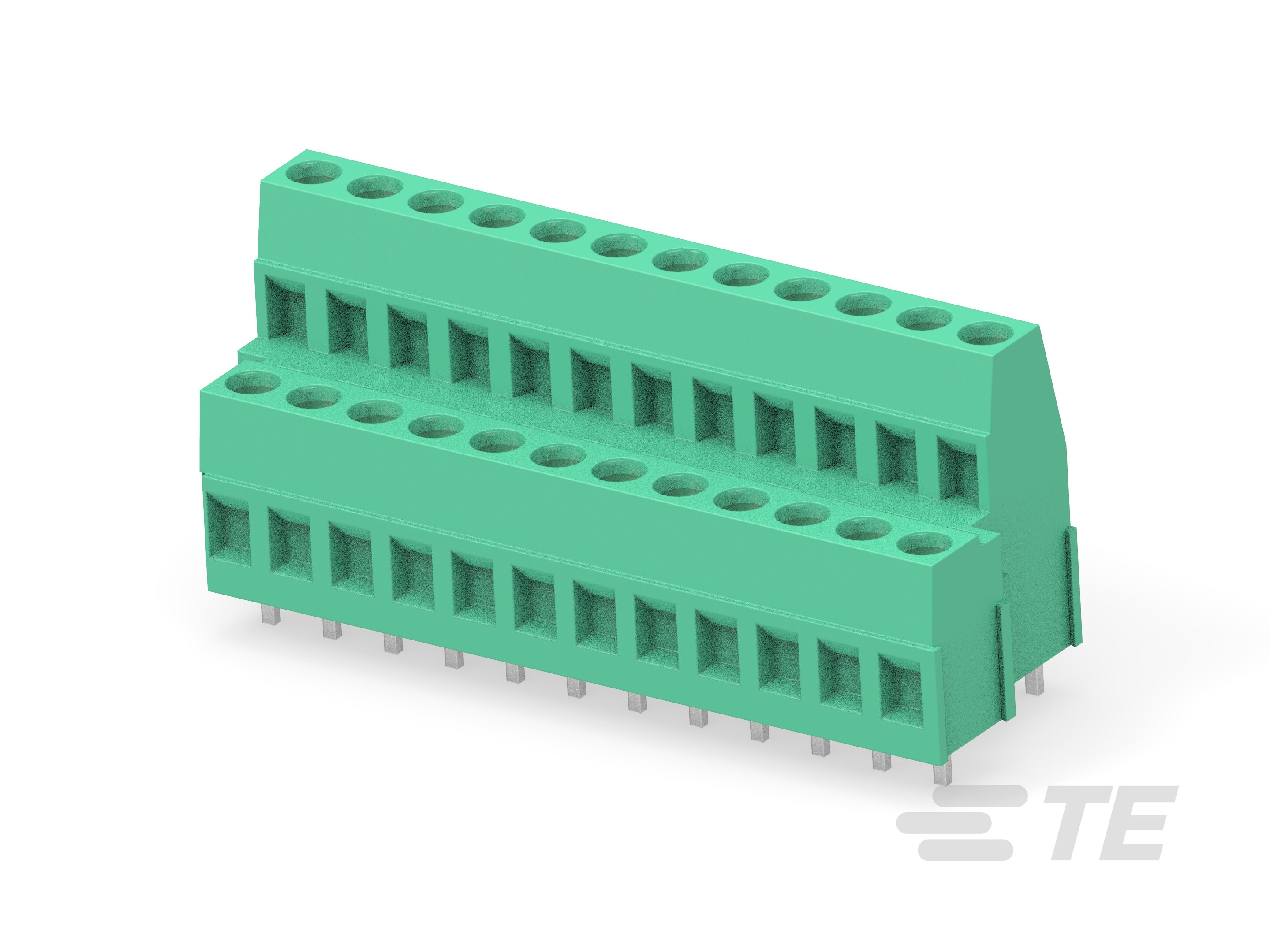

TE Connectivity AMP Connectors 1-796692-2	Brass	Tin Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	M3	Brass - Nickel Plated	Interlocking (Side)	300 VDC	Green	Through Hole	2	12	30 AWG	12 AWG	Screw - Rising Cage Clamp	17.5 A	Horizontal with Board	5.08 mm	0.2 in

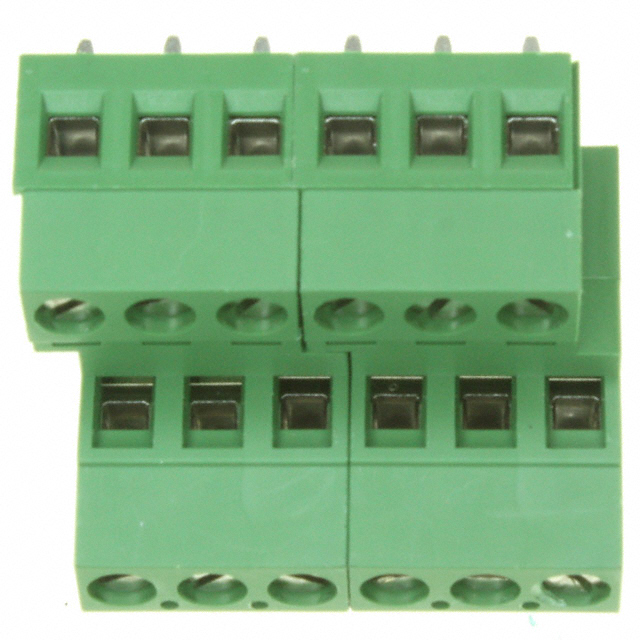

TE Connectivity AMP Connectors 796692-6	Brass	Tin Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	M3	Brass - Nickel Plated	Interlocking (Side)	300 VDC	Green	Through Hole	2	6	30 AWG	12 AWG	Screw - Rising Cage Clamp	17.5 A	Horizontal with Board	5.08 mm	0.2 in

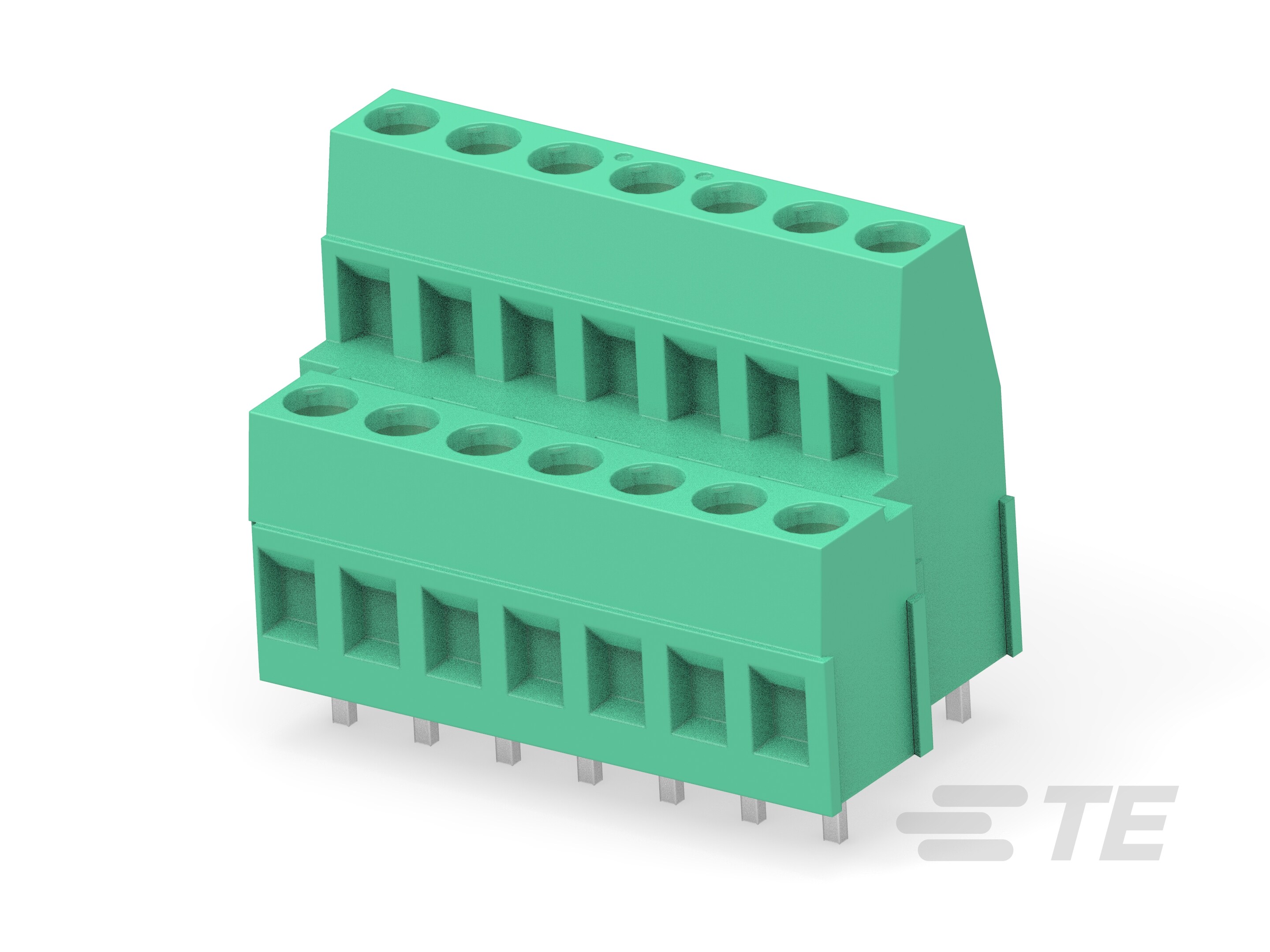

TE Connectivity AMP Connectors 796692-7	Brass	Tin Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	M3	Brass - Nickel Plated	Interlocking (Side)	300 VDC	Green	Through Hole	2		30 AWG	12 AWG	Screw - Rising Cage Clamp	17.5 A	Horizontal with Board	5.08 mm	0.2 in	7
TE Connectivity AMP Connectors 1-796692-6	Brass	Tin Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	M3	Brass - Nickel Plated	Interlocking (Side)	300 VDC	Green	Through Hole	2	16	30 AWG	12 AWG	Screw - Rising Cage Clamp	17.5 A	Horizontal with Board	5.08 mm	0.2 in

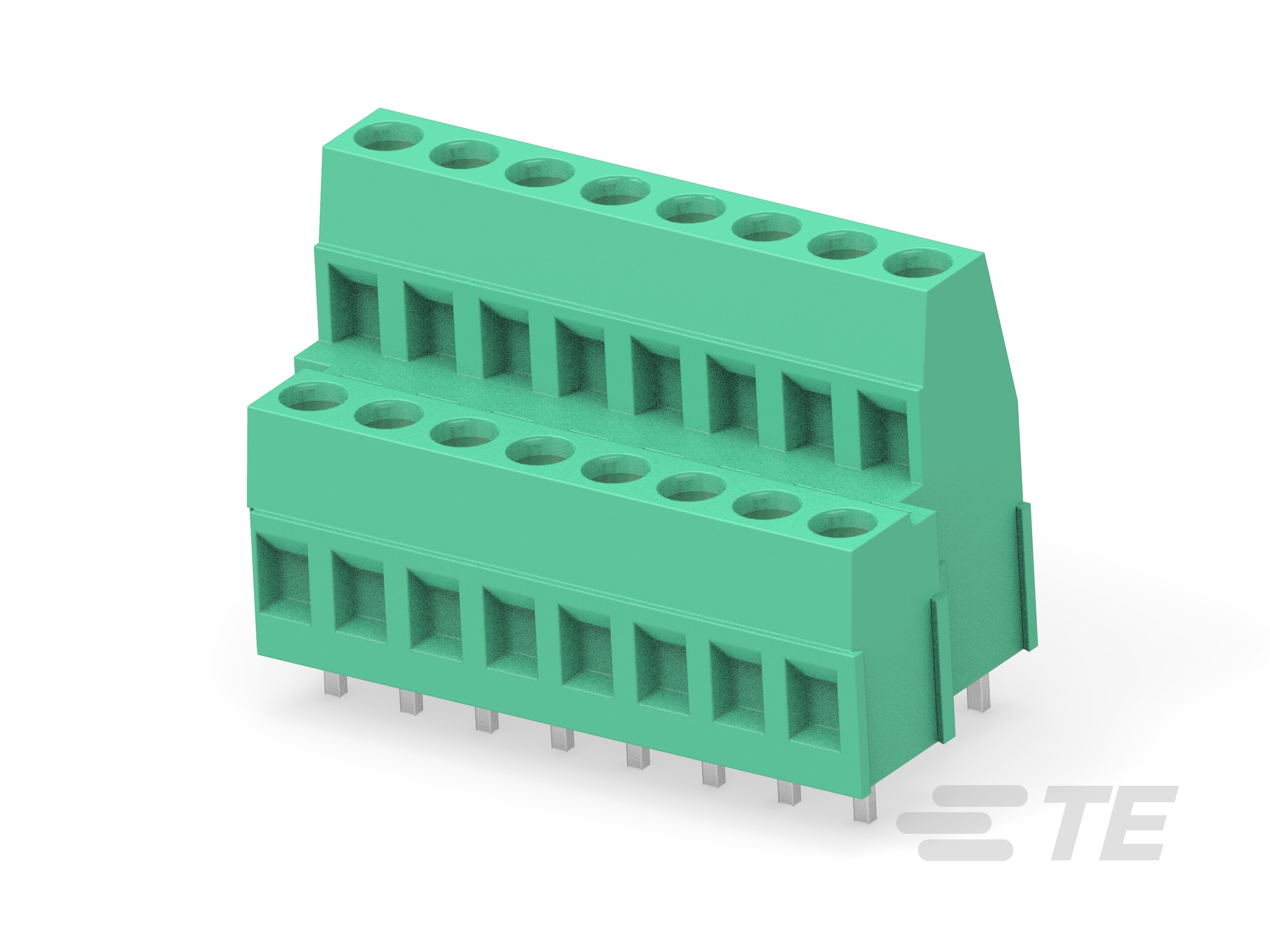

TE Connectivity AMP Connectors 796692-8	Brass	Tin Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	M3	Brass - Nickel Plated	Interlocking (Side)	300 VDC	Green	Through Hole	2	8	30 AWG	12 AWG	Screw - Rising Cage Clamp	17.5 A	Horizontal with Board	5.08 mm	0.2 in
