2355184 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

5P,2MM,BRK HDR,SRVT,2.8,0.76AU,T

Part	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Shape	Contact Material	Contact Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Shrouding	Material Flammability Rating	Insulation Color	Features	Connector Type	Number of Rows	Contact Finish - Post	Termination	Mounting Type	Contact Length - Mating	Contact Length - Mating	Number of Positions

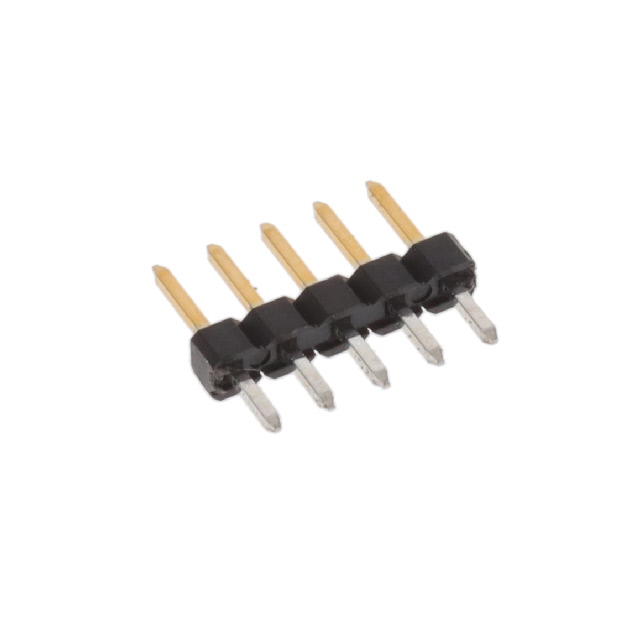

TE Connectivity Raychem Cable Protection 2355184-5	0.079 in	2 mm	30 Áin	0.76 Ám	2 A	Square	Copper Alloy	Male Pin	Thermoplastic	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	1.5 mm	0.059 "	125 VAC	2 çm	78.7 çin	All	8.3 mm	0.327 in	Gold	Unshrouded	UL94 V-0	Black	Pick and Place	Breakaway Header	1	Tin	Solder	Through Hole	4 mm	0.157 in

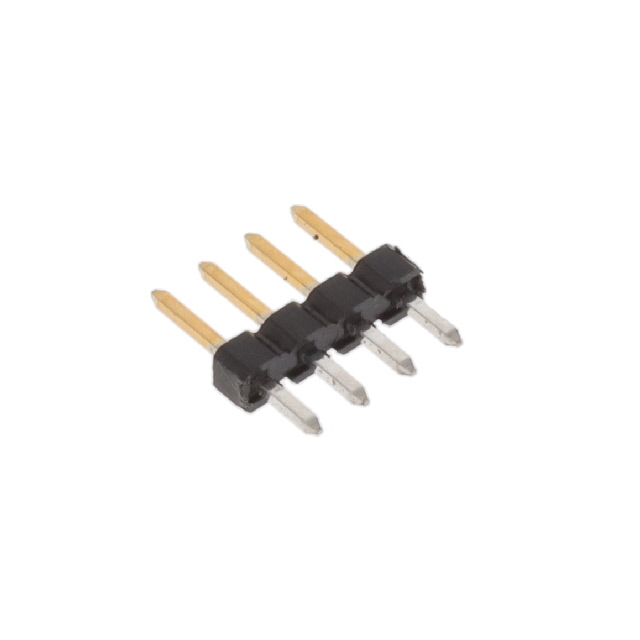

TE Connectivity Raychem Cable Protection 2355184-4	0.079 in	2 mm	30 Áin	0.76 Ám	2 A	Square	Copper Alloy	Male Pin	Thermoplastic	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	1.5 mm	0.059 "	125 VAC	2 çm	78.7 çin	All	8.3 mm	0.327 in	Gold	Unshrouded	UL94 V-0	Black	Pick and Place	Breakaway Header	1	Tin	Solder	Through Hole	4 mm	0.157 in	4
TE Connectivity Raychem Cable Protection 2355184-8	0.079 in	2 mm	30 Áin	0.76 Ám	2 A	Square	Copper Alloy	Male Pin	Thermoplastic	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	1.5 mm	0.059 "	125 VAC	2 çm	78.7 çin	All	8.3 mm	0.327 in	Gold	Unshrouded	UL94 V-0	Black	Pick and Place	Breakaway Header	1	Tin	Solder	Through Hole	4 mm	0.157 in	8

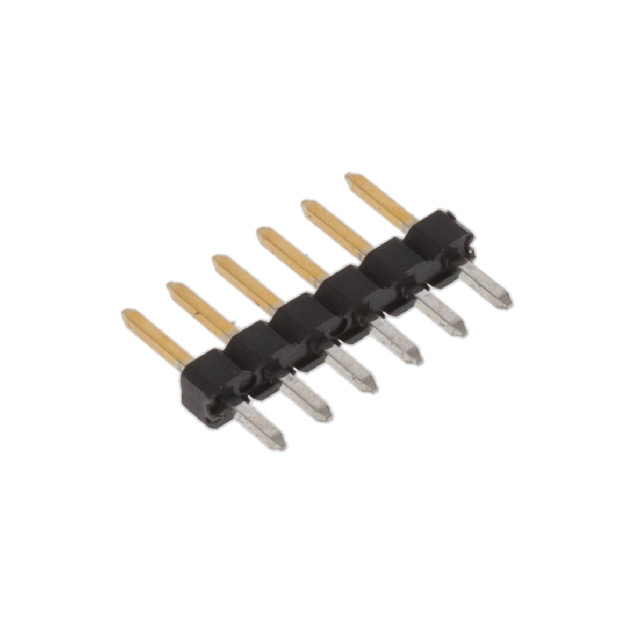

TE Connectivity Raychem Cable Protection 2355184-6	0.079 in	2 mm	30 Áin	0.76 Ám	2 A	Square	Copper Alloy	Male Pin	Thermoplastic	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	1.5 mm	0.059 "	125 VAC	2 çm	78.7 çin	All	8.3 mm	0.327 in	Gold	Unshrouded	UL94 V-0	Black	Pick and Place	Breakaway Header	1	Tin	Solder	Through Hole	4 mm	0.157 in	6

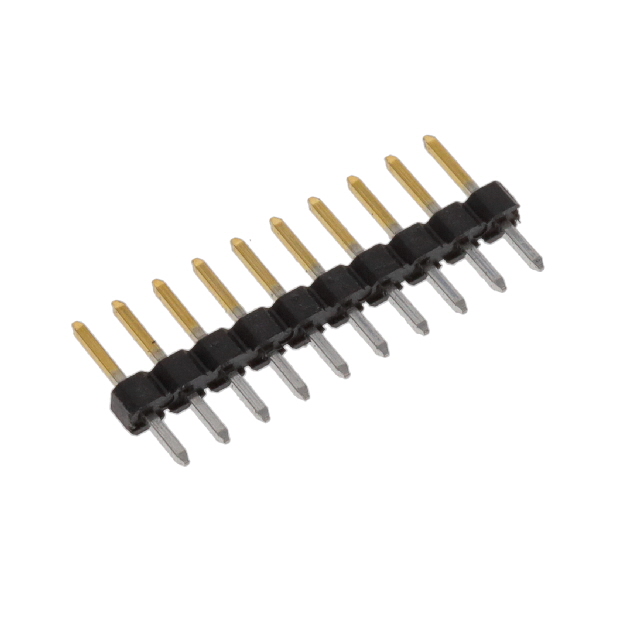

TE Connectivity Raychem Cable Protection 1-2355184-0	0.079 in	2 mm	30 Áin	0.76 Ám	2 A	Square	Copper Alloy	Male Pin	Thermoplastic	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	1.5 mm	0.059 "	125 VAC	2 çm	78.7 çin	All	8.3 mm	0.327 in	Gold	Unshrouded	UL94 V-0	Black	Pick and Place	Breakaway Header	1	Tin	Solder	Through Hole	4 mm	0.157 in	10
