LM5010A-Q1 Series

Automotive Grade 0 and 1, 6-75V Wide Vin, 1A Constant On-Time Non-Synchronous Buck Regulator

Catalog

Automotive Grade 0 and 1, 6-75V Wide Vin, 1A Constant On-Time Non-Synchronous Buck Regulator

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Output (Max) [Max]	Supplier Device Package	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Configuration	Current - Output	Number of Outputs	Function	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output (Min/Fixed)	Output Type	Topology	Voltage - Input (Min) [Min]	Grade	Qualification	Outputs and Type	Outputs and Type	Frequency - Switching	Supplied Contents	Utilized IC / Part	Voltage - Output	Board Type	Regulator Topology	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]
Texas Instruments LM5010MH/NOPB	-40 °C	125 ¯C	14-PowerTSSOP	4.4 mm	0.173 in	70 V	14-HTSSOP	1 MHz	100 kHz	Positive	1 A	1	Step-Down	75 V	Surface Mount	2.5 V	Adjustable	Buck	8 V
Texas Instruments LM5010AMH/NOPB	-40 °C	150 °C	14-PowerTSSOP	4.4 mm	0.173 in	70 V	14-HTSSOP	1 MHz	100 kHz	Positive	1 A	1	Step-Down	75 V	Surface Mount	2.5 V	Adjustable	Buck	6 V
Texas Instruments LM5010AQ1MHX/NOPB	-40 °C	125 ¯C	14-PowerTSSOP	4.4 mm	0.173 in	70 V	14-HTSSOP	1 MHz	100 kHz	Positive	1 A	1	Step-Down	75 V	Surface Mount	2.5 V	Adjustable	Buck	6 V	Automotive	AEC-Q100

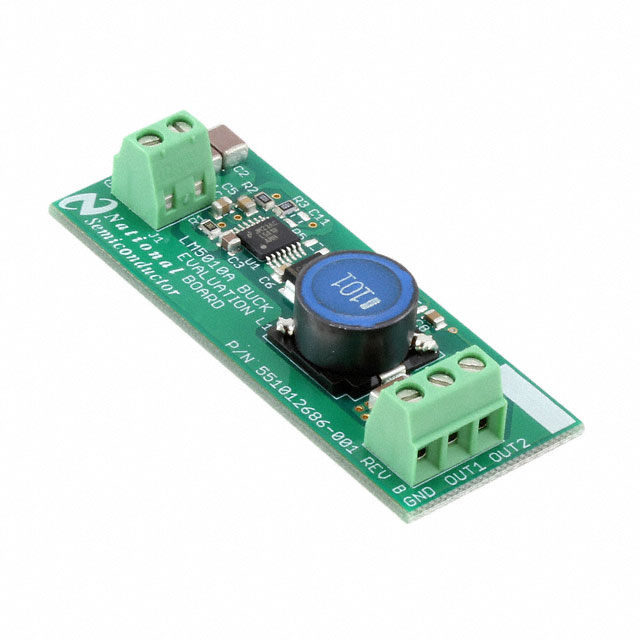

Texas Instruments LM5010AEVAL/NOPB											1 A											Non-Isolated	1	200 kHz	Board(s)	LM5010A	5 V	Fully Populated	Buck	DC/DC Step Down	6 V	75 V
Texas Instruments LM5010ASD	-40 °C	150 °C	10-WDFN Exposed Pad			70 V	10-WSON (4x4)	1 MHz	100 kHz	Positive	1 A	1	Step-Down	75 V	Surface Mount	2.5 V	Adjustable	Buck	6 V

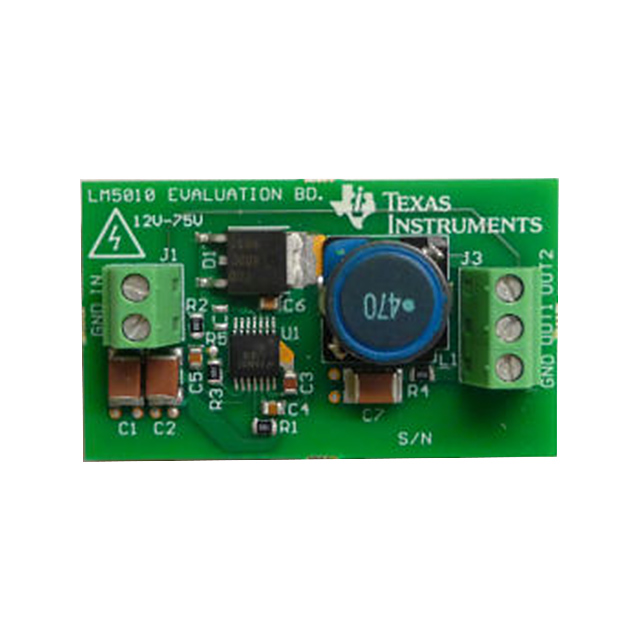

Texas Instruments LM5010 EVAL											1 A											Non-Isolated	1	480 kHz	Board(s)	LM5010	10 V	Fully Populated	Buck	DC/DC Step Down	12 V	75 V
Texas Instruments LM5010SD	-40 °C	125 ¯C	10-WDFN Exposed Pad			70 V	10-WSON (4x4)	1 MHz	100 kHz	Positive	1 A	1	Step-Down	75 V	Surface Mount	2.5 V	Adjustable	Buck	8 V
Texas Instruments LM5010AMHX	-40 °C	150 °C	14-PowerTSSOP	4.4 mm	0.173 in	70 V	14-HTSSOP	1 MHz	100 kHz	Positive	1 A	1	Step-Down	75 V	Surface Mount	2.5 V	Adjustable	Buck	6 V
Texas Instruments LM5010AQ0MH/NOPB	-40 °C	150 °C	14-PowerTSSOP	4.4 mm	0.173 in	70 V	14-HTSSOP	1 MHz	100 kHz	Positive	1 A	1	Step-Down	75 V	Surface Mount	2.5 V	Adjustable	Buck	6 V	Automotive	AEC-Q100
Texas Instruments LM5010AEVAL											1 A											Non-Isolated	1	200 kHz	Board(s)	LM5010A	5 V	Fully Populated	Buck	DC/DC Step Down	6 V	75 V

Catalog

Automotive Grade 0 and 1, 6-75V Wide Vin, 1A Constant On-Time Non-Synchronous Buck Regulator

Key Features

• LM5010A-Q1 Qualified for AutomotiveApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°CAmbient Operating Temperature RangeDevice Temperature Grade 0: –40°C to 150°CAmbient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C5Wide 6-V to 75-V Input Voltage RangeValley Current Limit at 1.25 AProgrammable Switching Frequency Up To 1 MHzIntegrated 80-V N-Channel Buck SwitchIntegrated High Voltage Bias RegulatorNo Loop Compensation RequiredUltra-Fast Transient ResponseNearly Constant Operating Frequency With Lineand Load VariationsAdjustable Output Voltage2.5-V, ±2% Feedback ReferenceProgrammable Soft-StartThermal ShutdownExposed Thermal Pad for Improved HeatDissipationLM5010A-Q1 Qualified for AutomotiveApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°CAmbient Operating Temperature RangeDevice Temperature Grade 0: –40°C to 150°CAmbient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C5Wide 6-V to 75-V Input Voltage RangeValley Current Limit at 1.25 AProgrammable Switching Frequency Up To 1 MHzIntegrated 80-V N-Channel Buck SwitchIntegrated High Voltage Bias RegulatorNo Loop Compensation RequiredUltra-Fast Transient ResponseNearly Constant Operating Frequency With Lineand Load VariationsAdjustable Output Voltage2.5-V, ±2% Feedback ReferenceProgrammable Soft-StartThermal ShutdownExposed Thermal Pad for Improved HeatDissipation

Description

The LM5010Ax step-down switching regulator is an enhanced version of the LM5010 with the input operating range extended to 6-V minimum. The LM5010Ax features all the functions needed to implement a low-cost, efficient, buck regulator capable of supplying in excess of 1-A load current. This high-voltage regulator integrates an N-Channel Buck Switch, and is available in thermally enhanced 10-pin WSON and 14-pin HTSSOP packages. The constant ON-time regulation scheme requires no loop compensation resulting in fast load transient response and simplified circuit implementation. The operating frequency remains constant with line and load variations due to the inverse relationship between the input voltage and the ON-time. The valley current limit detection is set at 1.25 A. Additional features include: VCC undervoltage lockout, thermal shutdown, gate drive undervoltage lockout, and maximum duty cycle limiter. The LM5010Ax step-down switching regulator is an enhanced version of the LM5010 with the input operating range extended to 6-V minimum. The LM5010Ax features all the functions needed to implement a low-cost, efficient, buck regulator capable of supplying in excess of 1-A load current. This high-voltage regulator integrates an N-Channel Buck Switch, and is available in thermally enhanced 10-pin WSON and 14-pin HTSSOP packages. The constant ON-time regulation scheme requires no loop compensation resulting in fast load transient response and simplified circuit implementation. The operating frequency remains constant with line and load variations due to the inverse relationship between the input voltage and the ON-time. The valley current limit detection is set at 1.25 A. Additional features include: VCC undervoltage lockout, thermal shutdown, gate drive undervoltage lockout, and maximum duty cycle limiter.
