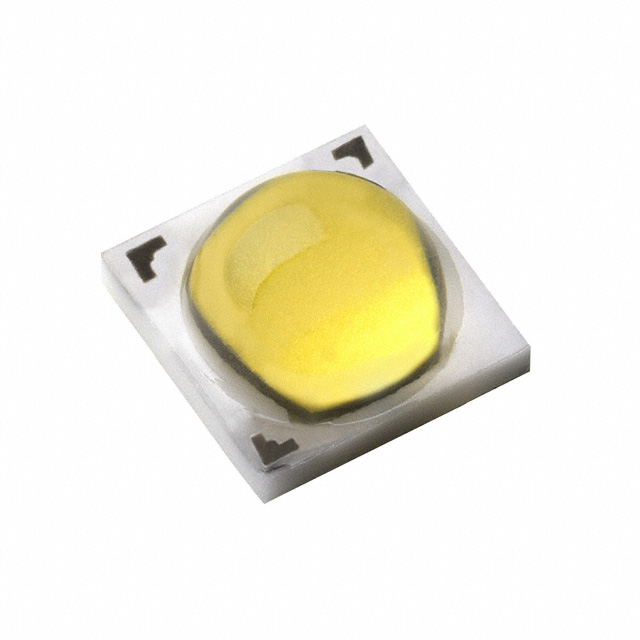

L1T2 Series

Manufacturer: Lumileds

Catalog

LED LUXEON WARM WHITE 3500K 2SMD

Part	Thermal Resistance of Package	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	CRI (Color Rendering Index)	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Package / Case	Current - Max [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Flux @ 85°C, Current - Test	Supplier Device Package	CCT (K)	CCT (K)	Current - Test	Flux @ 25°C, Current - Test
Lumileds L1T2-3580500002400	3 °C/W	121 lm/W	2.12 mm	0.083 "	80	120 °	2.8 V	Warm White	2-SMD No Lead Exposed Pad	1.5 A	Surface Mount	0.146 in	3.7 mm	0.146 in	3.7 mm	238 lm
Lumileds L1T2-3085500001900	3 °C/W		2.12 mm	0.083 "	85	120 °	2.8 V	Warm White	2-SMD No Lead Exposed Pad	1.05 A	Surface Mount	0.146 in	3.7 mm	0.146 in	3.7 mm		2-SMD	3000 K	5-Step MacAdam Ellipse	350 mA
Lumileds L1T2-3085000002000	3 °C/W		2.12 mm	0.083 "	85	120 °	2.8 V	Warm White	2-SMD No Lead Exposed Pad	1.05 A	Surface Mount	0.146 in	3.7 mm	0.146 in	3.7 mm		2-SMD	3000 K		350 mA
Lumileds L1T2-5085500002000	3 °C/W		2.12 mm	0.083 "	85	120 °	2.8 V	Cool White	2-SMD No Lead Exposed Pad	1.05 A	Surface Mount	0.146 in	3.7 mm	0.146 in	3.7 mm		2-SMD	5000 K	5-Step MacAdam Ellipse	350 mA
Lumileds L1T2-5770000000000	3 °C/W	140 lm/W	2.12 mm	0.083 "	70	120 °	2.8 V	Cool White	2-SMD No Lead Exposed Pad	1.5 A	Surface Mount	0.146 in	3.7 mm	0.146 in	3.7 mm	275 lm		5700 K
Lumileds L1T2-3580500000000	3 °C/W	140 lm/W	2.12 mm	0.083 "	80	120 °	2.8 V	Warm White	2-SMD No Lead Exposed Pad	1.5 A	Surface Mount	0.146 in	3.7 mm	0.146 in	3.7 mm		2-SMD				274 lm
Lumileds L1T2-3090500001900	3 °C/W	96 lm/W	2.12 mm	0.083 "	90	120 °	2.8 V	Warm White	2-SMD No Lead Exposed Pad	1.5 A	Surface Mount	0.146 in	3.7 mm	0.146 in	3.7 mm	188 lm		3000 K	5-Step MacAdam Ellipse
Lumileds L1T2-5785300000000	3 °C/W		2.12 mm	0.083 "	85	120 °	2.8 V	Cool White	2-SMD No Lead Exposed Pad	1.05 A	Surface Mount	0.146 in	3.7 mm	0.146 in	3.7 mm		2-SMD	5700 K	3-Step MacAdam Ellipse	350 mA
Lumileds L1T2-3085300002000	3 °C/W	101 lm/W	2.12 mm	0.083 "	85	120 °	2.8 V	Warm White	2-SMD No Lead Exposed Pad	1.5 A	Surface Mount	0.146 in	3.7 mm	0.146 in	3.7 mm	197 lm		3000 K	3-Step MacAdam Ellipse
Lumileds L1T2-3090300001900	3 °C/W	96 lm/W	2.12 mm	0.083 "	90	120 °	2.8 V	Warm White	2-SMD No Lead Exposed Pad	1.5 A	Surface Mount	0.146 in	3.7 mm	0.146 in	3.7 mm	188 lm		3000 K	3-Step MacAdam Ellipse
