2317209 Series

Catalog

7P,2MM,REC,IDC,LRAMP,26-30,STRIP

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Contact Type	Wire Type	Fastening Type	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Color	Number of Positions	Number of Rows	Mounting Type	Cable Termination

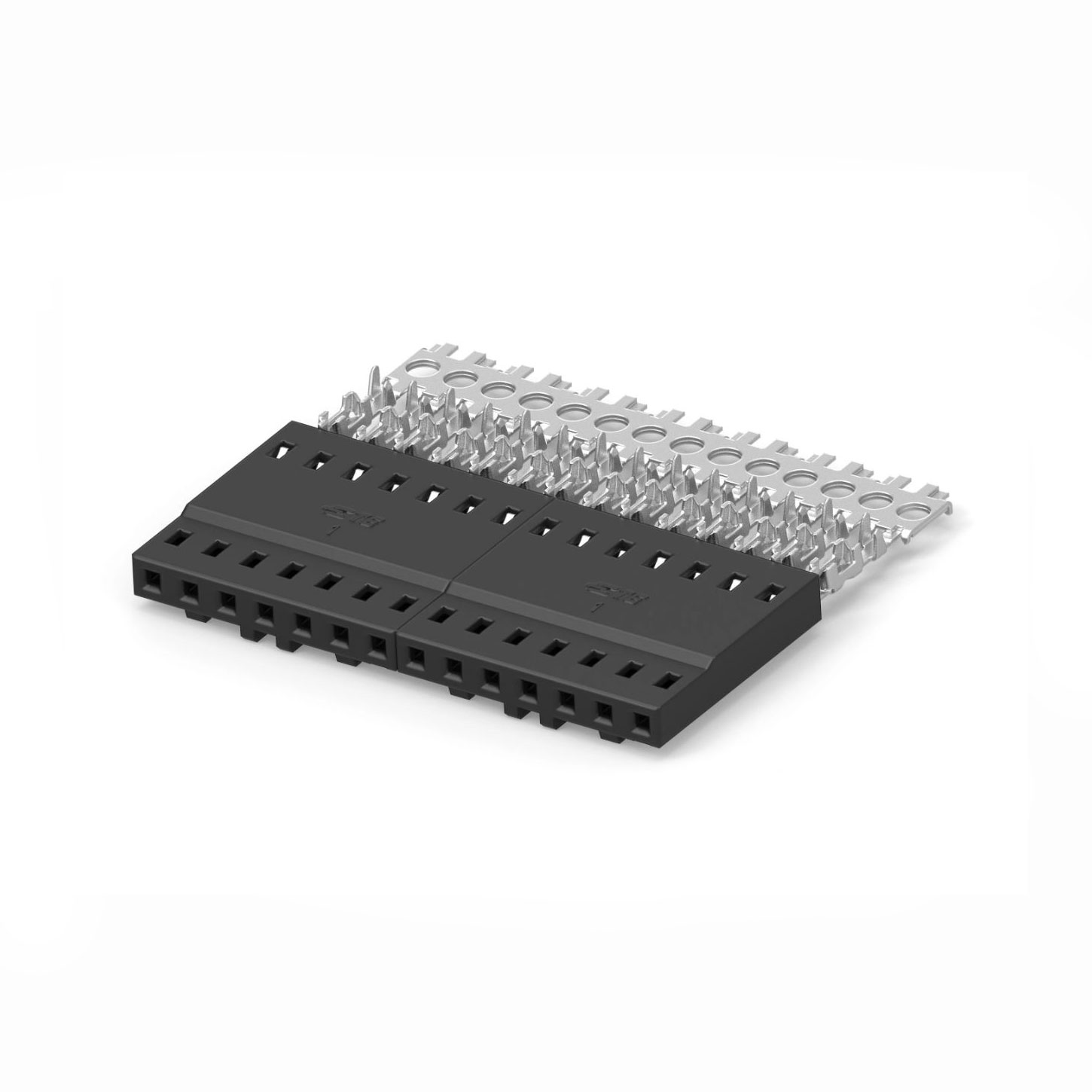

TE Connectivity Raychem Cable Protection 2317209-7	0.76 Ám	30 Áin	Gold	Receptacle	Female Socket	Discrete or Ribbon Cable	Push-Pull	0.079 in	2 mm	26 AWG	30 AWG	Black	7	1	Free Hanging (In-Line)	IDC

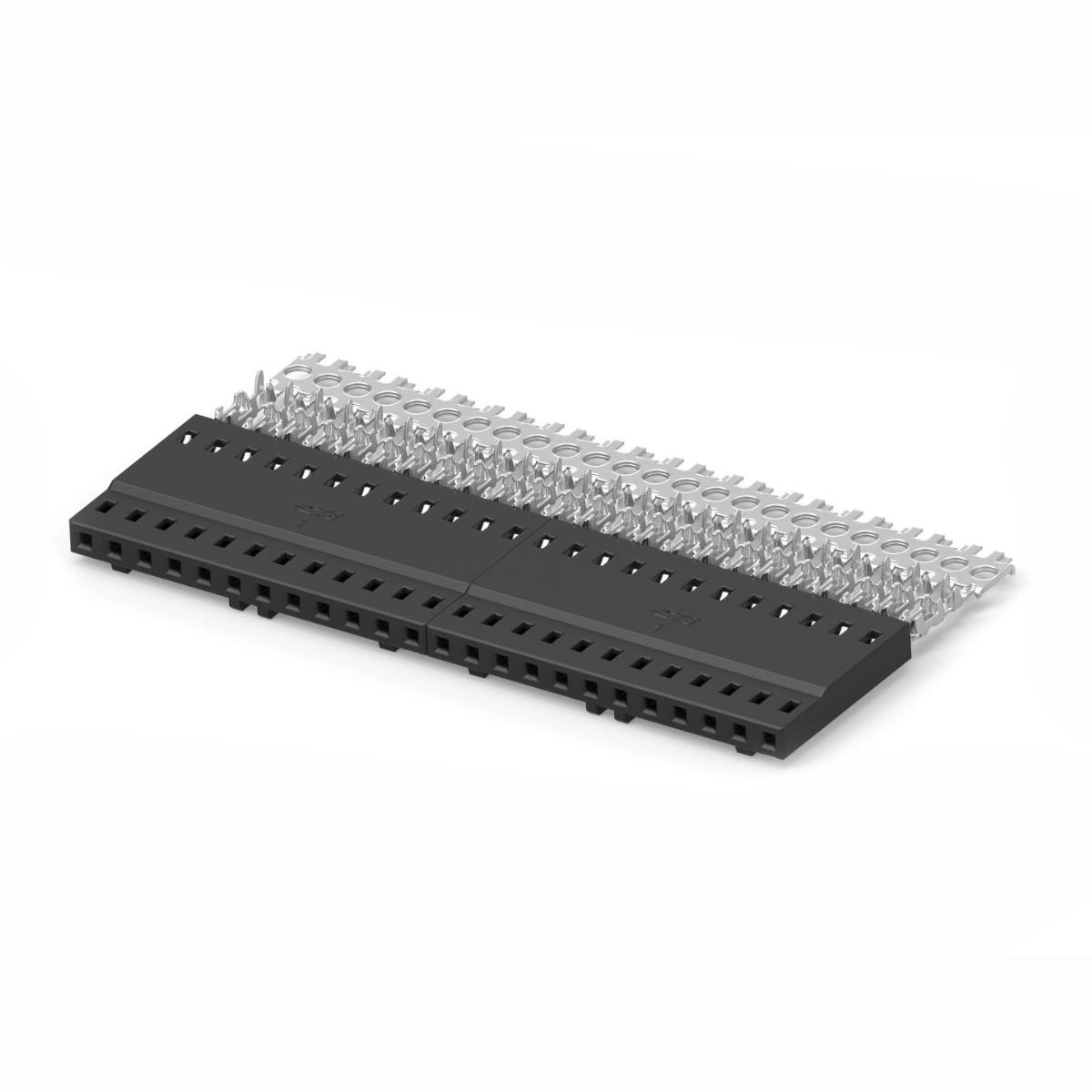

TE Connectivity Raychem Cable Protection 1-2317209-2	1.27 µm	50 µin	Tin	Receptacle	Female Socket	Discrete or Ribbon Cable	Push-Pull	0.079 in	2 mm	26 AWG	30 AWG	Black	12	1	Free Hanging (In-Line)	IDC

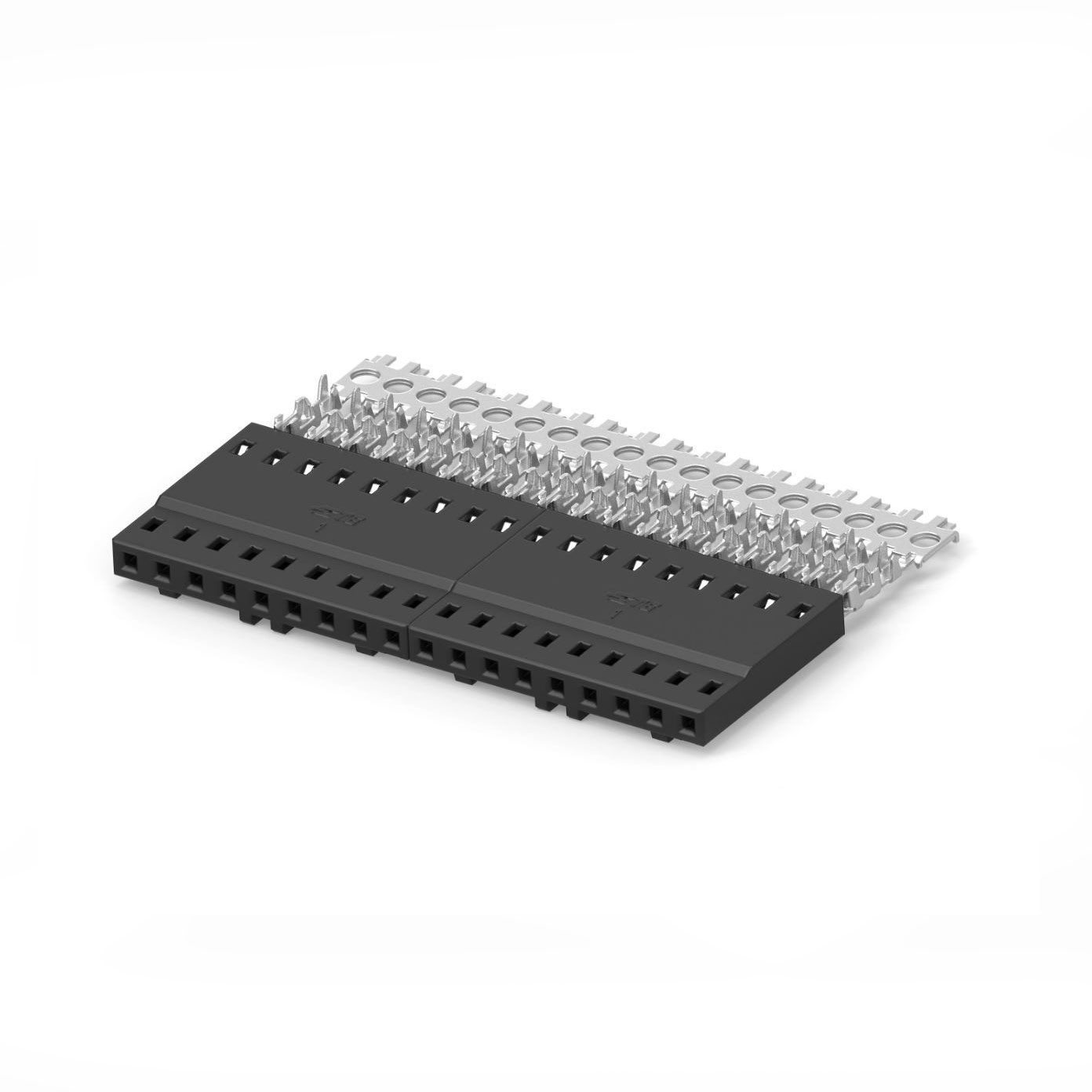

TE Connectivity Raychem Cable Protection 2317209-9	1.27 µm	50 µin	Tin	Receptacle	Female Socket	Discrete or Ribbon Cable	Push-Pull	0.079 in	2 mm	26 AWG	30 AWG	Black	9	1	Free Hanging (In-Line)	IDC
TE Connectivity Raychem Cable Protection 1-2317209-1	1.27 µm	50 µin	Tin	Receptacle	Female Socket	Discrete or Ribbon Cable	Push-Pull	0.079 in	2 mm	26 AWG	30 AWG	Black	11	1	Free Hanging (In-Line)	IDC

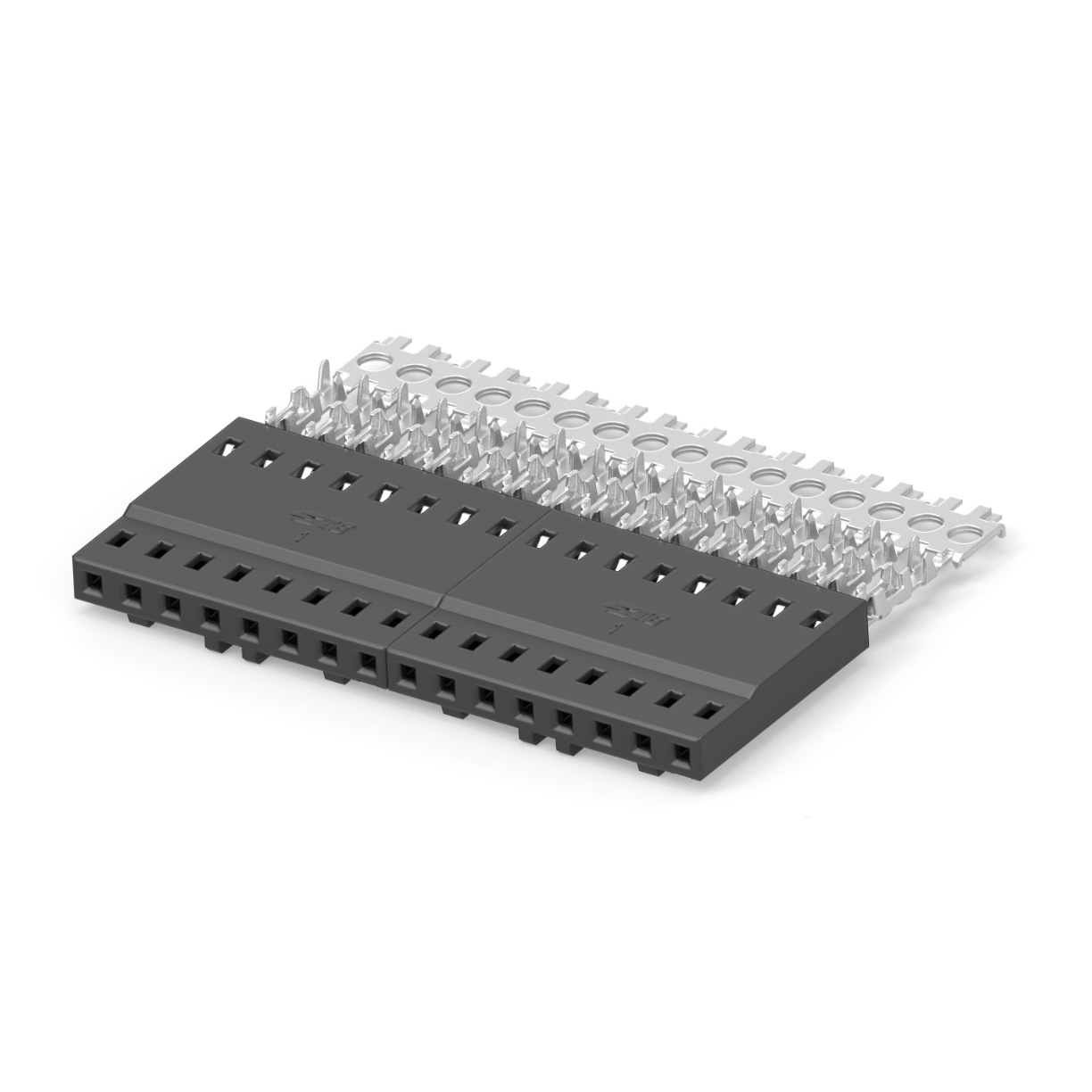

TE Connectivity Raychem Cable Protection 2317209-8	1.27 µm	50 µin	Tin	Receptacle	Female Socket	Discrete or Ribbon Cable	Push-Pull	0.079 in	2 mm	26 AWG	30 AWG	Black	8	1	Free Hanging (In-Line)	IDC
