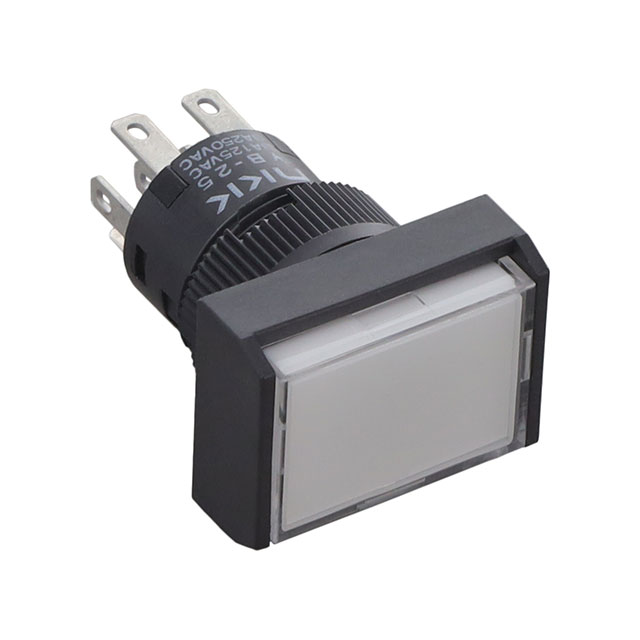

YB25RK Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON DPDT 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Illumination Voltage (Nominal) | Current Rating (Amps) | Color - Actuator/Cap | Switch Function | Actuator Type | Illumination Type, Color | Voltage Rating - DC | Features | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Termination Style | Type | Mounting Type | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1000000 Cycles | 100000 Cycles | 28 V | 12 VDC | 0.4 VA | Clear | On-Mom | Button Rectangular | Amber LED | 28 V | Voltage Reduction Lighting | No Marking | 50 °C | -25 °C | DPDT | Solder Quick Connect - 0.110" (2.8mm) | Illuminated Standard | Panel Mount Front | 16 mm |
 NKK Switches | 1000000 Cycles | 100000 Cycles | 125 V | 3.3 VDC | 3 A | Clear | On-Mom | Button Rectangular | LED White | 30 V | Voltage Reduction Lighting | No Marking | 50 °C | -25 °C | DPDT | Solder Quick Connect - 0.110" (2.8mm) | Illuminated Standard | Panel Mount Front | 16 mm |
NKK Switches | 1000000 Cycles | 100000 Cycles | 125 V | 24 V | 3 A | Clear | On-Mom | Button Rectangular | LED Red | 30 V | Voltage Reduction Lighting | No Marking | 50 °C | -25 °C | DPDT | Solder Quick Connect - 0.110" (2.8mm) | Illuminated Standard | Panel Mount Front | 16 mm |
 NKK Switches | 1000000 Cycles | 100000 Cycles | 125 V | 5 VDC | 3 A | Clear | On-Mom | Button Rectangular | Green LED | 30 V | 50 °C | -25 °C | DPDT | Solder Quick Connect - 0.110" (2.8mm) | Illuminated Standard | Panel Mount Front | 16 mm | ||
NKK Switches | 1000000 Cycles | 100000 Cycles | 125 V | 1.9 VDC | 3 A | Clear | On-Mom | Button Rectangular | LED Red | 30 V | Voltage Reduction Lighting | No Marking | 50 °C | -25 °C | DPDT | Solder Quick Connect - 0.110" (2.8mm) | Illuminated Standard | Panel Mount Front | 16 mm |
NKK Switches | 1000000 Cycles | 100000 Cycles | 28 V | 0.4 VA | On-Mom | Plunger for Cap | 28 V | Voltage Reduction Lighting | No Marking | 70 °C | -25 °C | DPDT | Solder Quick Connect - 0.110" (2.8mm) | Standard | Panel Mount Front | 16 mm | |||
NKK Switches | 1000000 Cycles | 100000 Cycles | 125 V | 24 V | 3 A | Clear | On-Mom | Button Rectangular | Amber LED | 30 V | Voltage Reduction Lighting | No Marking | 50 °C | -25 °C | DPDT | Solder Quick Connect - 0.110" (2.8mm) | Illuminated Standard | Panel Mount Front | 16 mm |
NKK Switches | 1000000 Cycles | 100000 Cycles | 28 V | 3.6 VDC | 0.4 VA | Clear | On-Mom | Button Rectangular | Blue LED | 28 V | Voltage Reduction Lighting | No Marking | 50 °C | -25 °C | DPDT | Solder Quick Connect - 0.110" (2.8mm) | Illuminated Standard | Panel Mount Front | 16 mm |
NKK Switches | 1000000 Cycles | 100000 Cycles | 125 V | 3 A | Red | On-Mom | Button Rectangular | 30 V | Voltage Reduction Lighting | No Marking | 70 °C | -25 °C | DPDT | Solder Quick Connect - 0.110" (2.8mm) | Standard | Panel Mount Front | 16 mm | ||
NKK Switches | 1000000 Cycles | 100000 Cycles | 125 V | 12 VDC | 3 A | Clear | On-Mom | Button Rectangular | LED Red | 30 V | Voltage Reduction Lighting | No Marking | 50 °C | -25 °C | DPDT | Solder Quick Connect - 0.110" (2.8mm) | Illuminated Standard | Panel Mount Front | 16 mm |
