207612 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

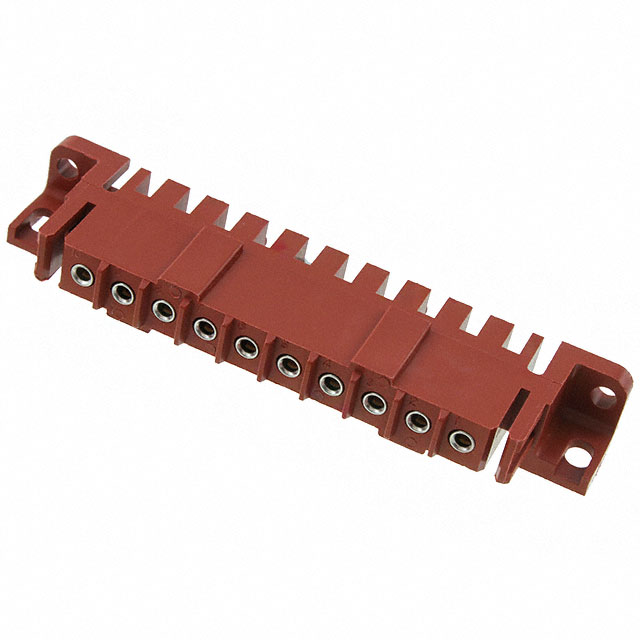

CONN HDR 10POS 0.197 TIN PCB R/A
| Part | Contact Type | Contact Finish - Post | Mounting Type | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Contact Shape | Contact Material | Features | Insulation Height | Insulation Height | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Material Flammability Rating | Number of Rows | Pitch - Mating | Pitch - Mating | Insulation Color | Termination | Current Rating (Amps) | Style | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female Socket | Tin | Through Hole Right Angle | 600 V | 150 Áin | 3.81 Ám | Latch Holder | Circular | Phosphor Bronze | Mounting Flange | 0.433 in | 11 mm | 10 | 150 Áin | 3.81 Ám | Header | UL94 V-0 | 1 | 5 mm | 0.197 " | Black Red | Solder | 7.5 A | Board to Cable/Wire | 130 °C | -55 °C | Thermoplastic | All |
