45463 Series

Catalog

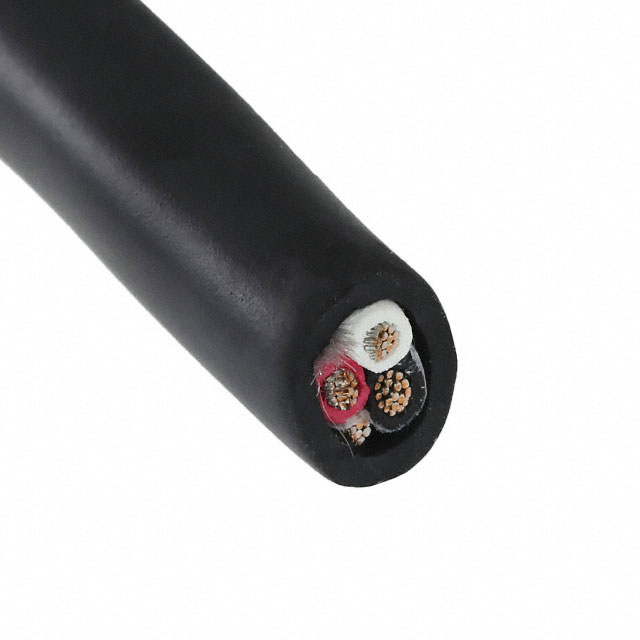

CABLE 3COND 20AWG BLK SHLD FEET

Part	Shield Material	Jacket (Insulation) Material	Wire Gauge	Length	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Spool Size	Spool Size	Voltage	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Conductor Insulation	Shield Type	Cable Type	Jacket Color	Ratings	Length	Length	Length [x]	Length [x]
ALPHA WIRE 45463 BK199	Aluminum	Thermoplastic Elastomer (TPE)	20 AWG	Enter Number of Feet in Order Quantity	3	-50 °C	125 °C	100 %	1000 ft	304.8 m	300 V	Biological Compatibility Drain Wire Rip Cord	0.249 in	6.32 mm	1.143 mm	0.045 in	28	7	Copper Tinned	Thermoplastic Elastomer (TPE)	Foil	Multi-Conductor	Black	ISO 10993
ALPHA WIRE 45463 BL199	Aluminum	Thermoplastic Elastomer (TPE)	20 AWG		3	-50 °C	125 °C	100 %			300 V	Biological Compatibility Drain Wire Rip Cord	0.249 in	6.32 mm	1.143 mm	0.045 in	28	7	Copper Tinned	Thermoplastic Elastomer (TPE)	Foil	Multi-Conductor	Blue	ISO 10993	1000 ft	304.8 m
ALPHA WIRE 45463 BK001	Aluminum	Thermoplastic Elastomer (TPE)	20 AWG		3	-50 °C	125 °C	100 %			300 V	Biological Compatibility Drain Wire Rip Cord	0.249 in	6.32 mm	1.143 mm	0.045 in	28	7	Copper Tinned	Thermoplastic Elastomer (TPE)	Foil	Multi-Conductor	Black	ISO 10993	1000 ft	304.8 m
ALPHA WIRE 45463 SL199	Aluminum	Thermoplastic Elastomer (TPE)	20 AWG		3	-50 °C	125 °C	100 %			300 V	Biological Compatibility Drain Wire Rip Cord	0.249 in	6.32 mm	1.143 mm	0.045 in	28	7	Copper Tinned	Thermoplastic Elastomer (TPE)	Foil	Multi-Conductor	Slate	ISO 10993	1000 ft	304.8 m
ALPHA WIRE 45463 BK005	Aluminum	Thermoplastic Elastomer (TPE)	20 AWG		3	-50 °C	125 °C	100 %			300 V	Biological Compatibility Drain Wire Rip Cord	0.249 in	6.32 mm	1.143 mm	0.045 in	28	7	Copper Tinned	Thermoplastic Elastomer (TPE)	Foil	Multi-Conductor	Black	ISO 10993			30.5 m	100 ft
