PPPC322 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 64POS 0.1 GOLD SMD

Part	Insulation Material	Contact Shape	Contact Material	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions	Material Flammability Rating	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Type	Number of Positions Loaded	Number of Rows [custom]	Connector Type	Mounting Type	Contact Finish - Mating	Insulation Color	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height
Sullins Connector Solutions PPPC322KFMS	Polyester	Square	Phosphor Bronze	Flash	Gold	64	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	250 V	125 °C	-40 C	0.299 "	7.6 mm	0.1 "	2.54 mm	Flash	3 A	Female Socket	All	2	Header	Surface Mount	Gold	Black

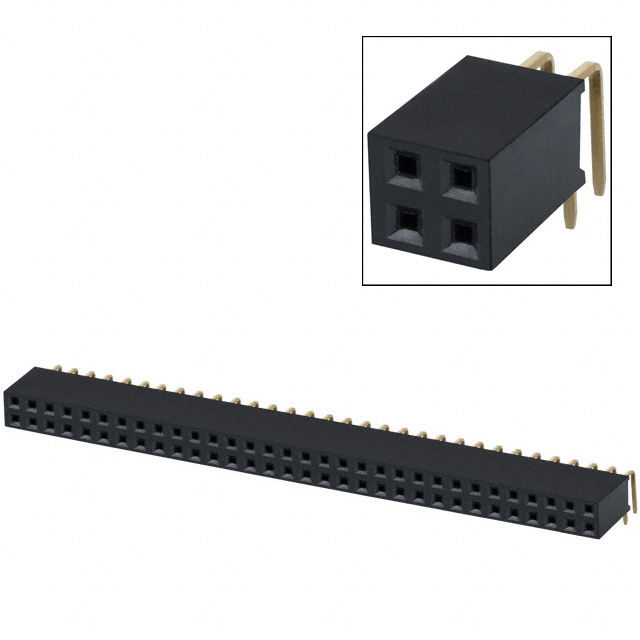

Sullins Connector Solutions PPPC322LJBN-RC	Polyester	Square	Phosphor Bronze	Flash	Gold	64	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	250 V	105 ░C	-40 C	0.2 in		0.1 "	2.54 mm	Flash	3 A	Female Socket	All	2	Header	Right Angle Through Hole	Gold	Black	5.08 mm	0.124 in	3.15 mm

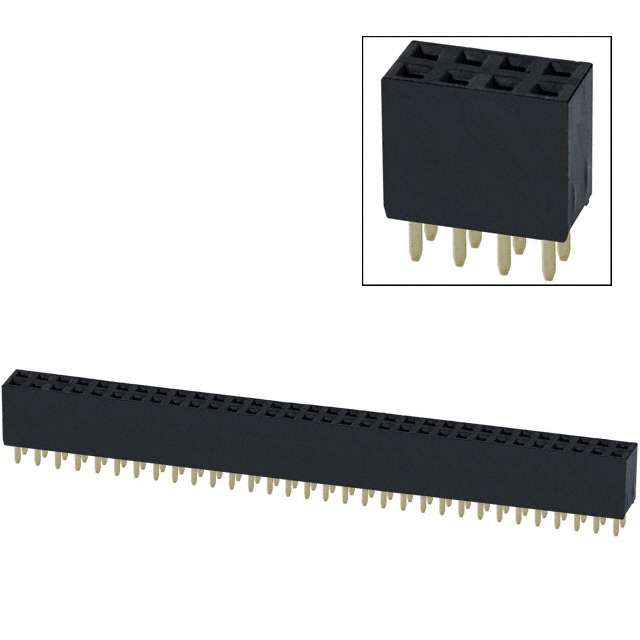

Sullins Connector Solutions PPPC322LFBN	Polyester	Square	Phosphor Bronze	Flash	Gold	64	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	250 V	105 ░C	-40 C		8.51 mm	0.1 "	2.54 mm	Flash	3 A	Female Socket	All	2	Header	Through Hole	Gold	Black				0.126 "	3.2 mm	0.335 "
Sullins Connector Solutions PPPC322LFBN-RC	Polyester	Square	Phosphor Bronze	Flash	Gold	64	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	250 V	105 ░C	-40 C		8.51 mm	0.1 "	2.54 mm	Flash	3 A	Female Socket	All	2	Header	Through Hole	Gold	Black				0.126 "	3.2 mm	0.335 "
Sullins Connector Solutions PPPC322LJBN	Polyester	Square	Phosphor Bronze	Flash	Gold	64	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	250 V	105 ░C	-40 C	0.2 in		0.1 "	2.54 mm	Flash	3 A	Female Socket	All	2	Header	Right Angle Through Hole	Gold	Black	5.08 mm	0.124 in	3.15 mm
