T40420 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

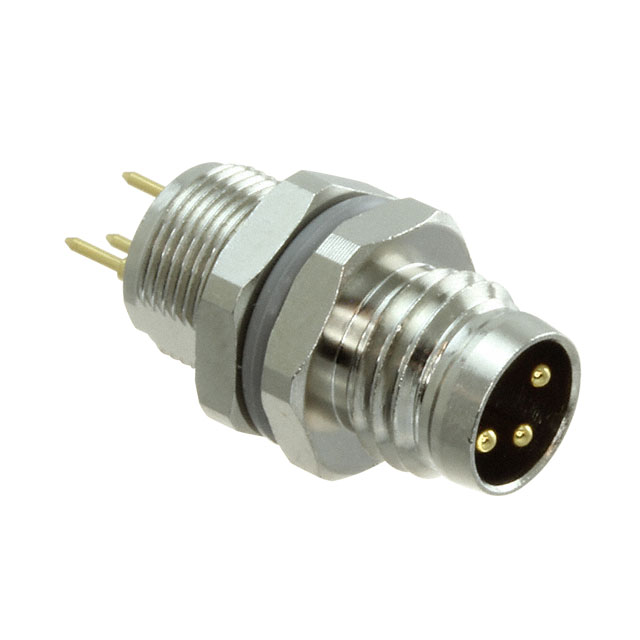

SENSOR CONNECTOR, M8, MALE, 3 POSITIONS, PCB PIN, STRAIGHT PANEL MOUNT
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Shell Finish | Termination | Shell Size - Insert | Color | Shell Material | Mounting Feature | Contact Finish - Mating | Mounting Type | Ingress Protection | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Voltage Rating | Primary Material | Orientation | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Automation Control Industrial Telecommunications | Nickel | Solder | M8-3 | Silver | Copper Alloy | Bulkhead | Gold | Panel Mount Through Hole | IP67 - Dust Tight Waterproof | Plug Male Pins | 85 °C | -40 C | 3 A | 60 VDC | Metal | A | Threaded |
