SIM-040 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K

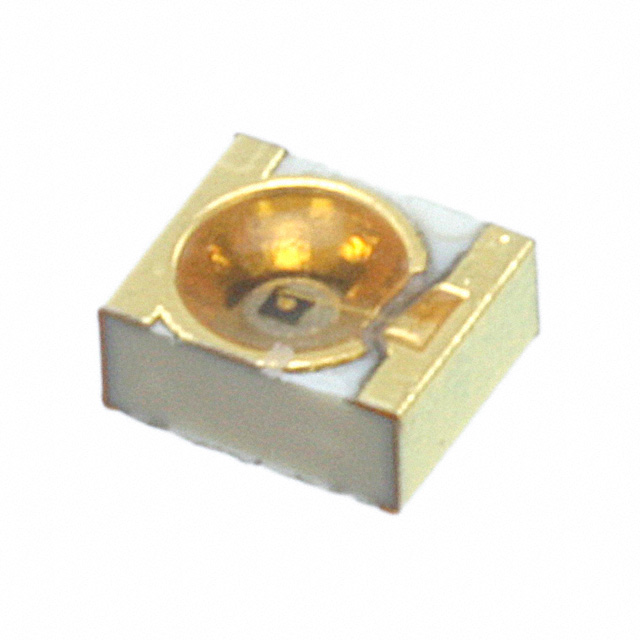

EMITTER IR 870NM 100MA SMD
| Part | Orientation | Package / Case | Current - DC Forward (If) (Max) [Max] | Voltage - Forward (Vf) (Typ) | Mounting Type | Viewing Angle | Type | Radiant Intensity (Ie) Min @ If [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | Top View | 2-SMD No Lead | 100 mA | 1.7 V | Surface Mount | 40 ° | Infrared (IR) | 20 mW/sr | 85 °C | -25 °C | 870 nm |
