SDF-V25 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 25 CONTACTS, DB, SOLDER
| Part | Color | Dielectric Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Ingress Protection | Number of Positions | Current Rating (Amps) | Connector Type | Features | Connector Style | Material Flammability Rating | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Number of Rows [custom] | Mounting Type | Contact Type | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

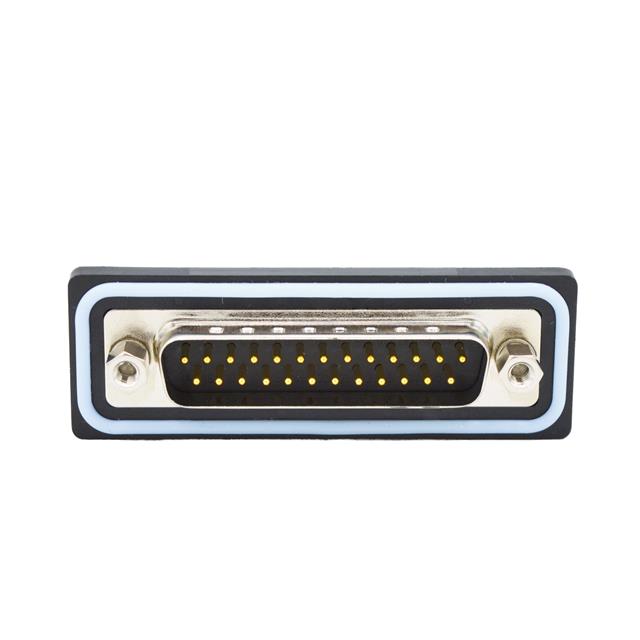

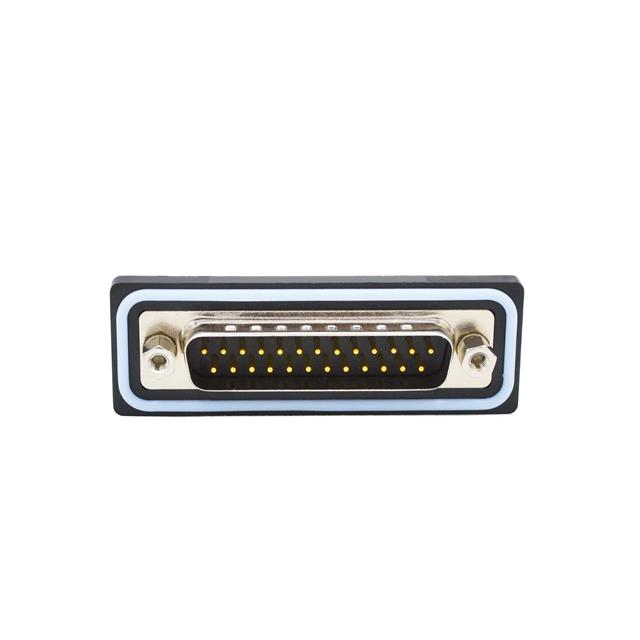

 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Solder | IP67 - Dust Tight Waterproof | 25 | 5 A | Plug Male Pins | Board Lock Grounding Indents | D-Sub | UL94 V-0 | Nickel Plated Steel | 30 Áin | 0.76 Ám | 4-40 Mating Side Female Screwlock | B DB | 3 | 2 | Panel Mount Through Hole | Signal | Gold | |
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Solder | IP67 - Dust Tight Waterproof | 25 | 5 A | Plug Male Pins | Grounding Indents | D-Sub | UL94 V-0 | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | B DB | 3 | 2 | Panel Mount Through Hole | Signal | Gold | Flash | ||

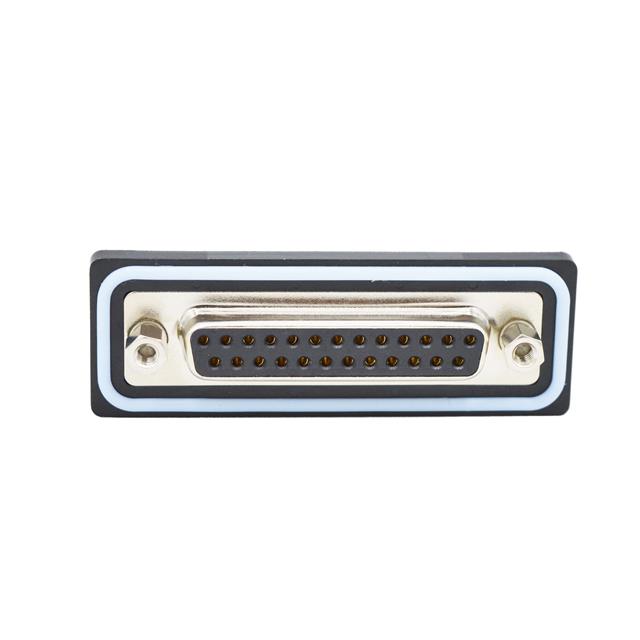

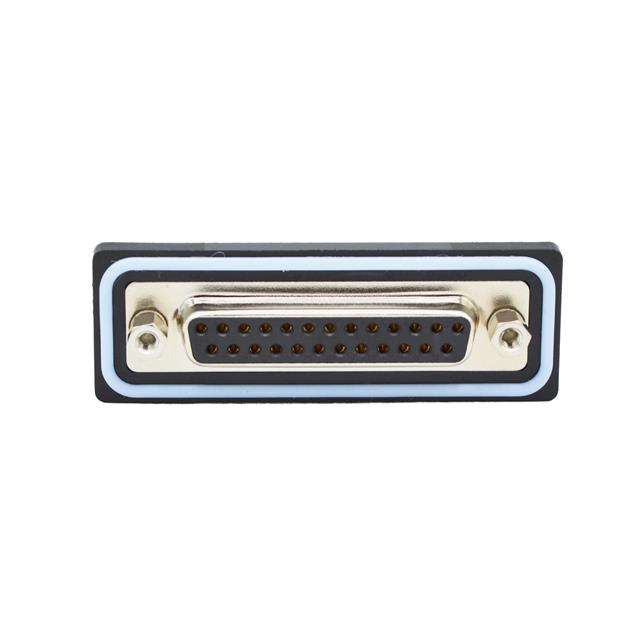

 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Solder | IP67 - Dust Tight Waterproof | 25 | 5 A | Receptacle Female Sockets | Board Lock | D-Sub | UL94 V-0 | Nickel Plated Steel | 30 Áin | 0.76 Ám | 4-40 Mating Side Female Screwlock | B DB | 3 | 2 | Panel Mount Through Hole | Signal | Gold | |
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Solder | IP67 - Dust Tight Waterproof | 25 | 5 A | Receptacle Female Sockets | D-Sub | UL94 V-0 | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | B DB | 3 | 2 | Panel Mount Through Hole | Signal | Gold | Flash | |||
NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Solder | IP67 - Dust Tight Waterproof | 25 | 5 A | Receptacle Female Sockets | D-Sub | UL94 V-0 | Nickel Plated Steel | 30 Áin | 0.76 Ám | 4-40 Mating Side Female Screwlock | B DB | 3 | 2 | Panel Mount Through Hole | Signal | Gold | ||
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Solder | IP67 - Dust Tight Waterproof | 25 | 5 A | Plug Male Pins | Grounding Indents | D-Sub | UL94 V-0 | Nickel Plated Steel | 30 Áin | 0.76 Ám | 4-40 Mating Side Female Screwlock | B DB | 3 | 2 | Panel Mount Through Hole | Signal | Gold | |
NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Solder | IP67 - Dust Tight Waterproof | 25 | 5 A | Receptacle Female Sockets | Board Lock | D-Sub | UL94 V-0 | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | B DB | 3 | 2 | Panel Mount Through Hole | Signal | Gold | Flash |
