180NQ Series

Catalog

DIODE SCHOTTKY 45V 180A PRM1-1

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io)	Speed	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Mounting Type

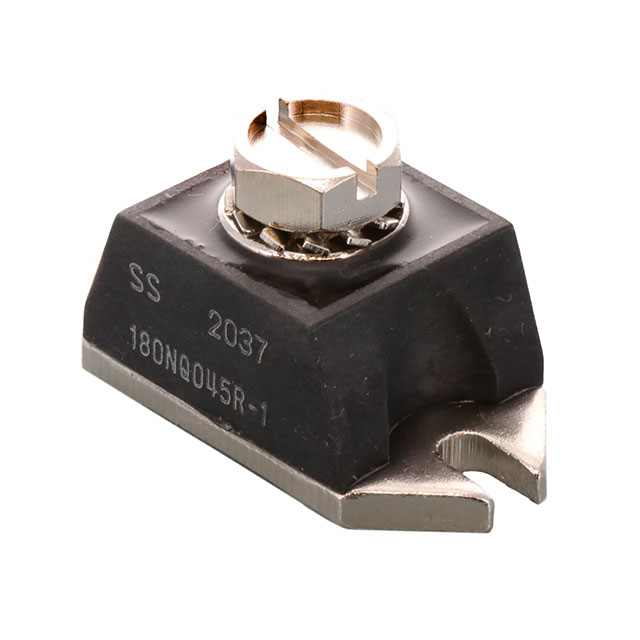

SMC Diode Solutions 180NQ045R-1	45 V	Schottky	180 A	200 mA 500 ns	600 mV	HALF-PAK	PRM1-1 (Half Pak Module)	15 mA	-55 °C	150 °C	5800 pF	Chassis Mount
SMC Diode Solutions 180NQ040-1	40 V	Schottky	180 A	200 mA 500 ns	600 mV	HALF-PAK	PRM1-1 (Half Pak Module)	15 mA	-55 °C	150 °C	7700 pF	Chassis Mount
SMC Diode Solutions 180NQ045-1	45 V	Schottky	180 A	200 mA 500 ns	600 mV	HALF-PAK	PRM1-1 (Half Pak Module)	15 mA	-55 °C	150 °C	7700 pF	Chassis Mount
