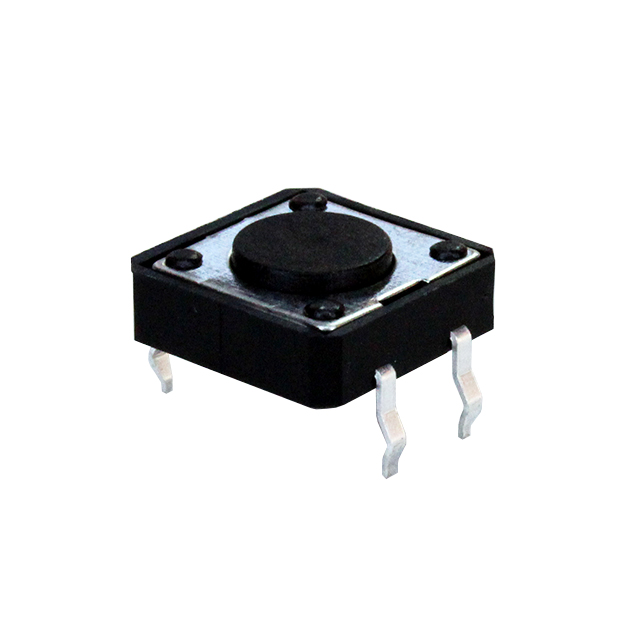

CT1103A Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Operating Force | Actuator Orientation | Illumination | Termination Style | Actuator Height off PCB, Vertical [z] | Outline [y] | Outline [x] | Contact Rating @ Voltage | Actuator Type | Switch Function | Mounting Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.3 mm | 180 gf | Top Actuated | Non-Illuminated | PC Pin | 4 mm | 12 mm | 12 mm | 0.05 A 50 VDC | Standard | Off-Mom | Through Hole | SPST-NO | 85 °C | -40 C |
