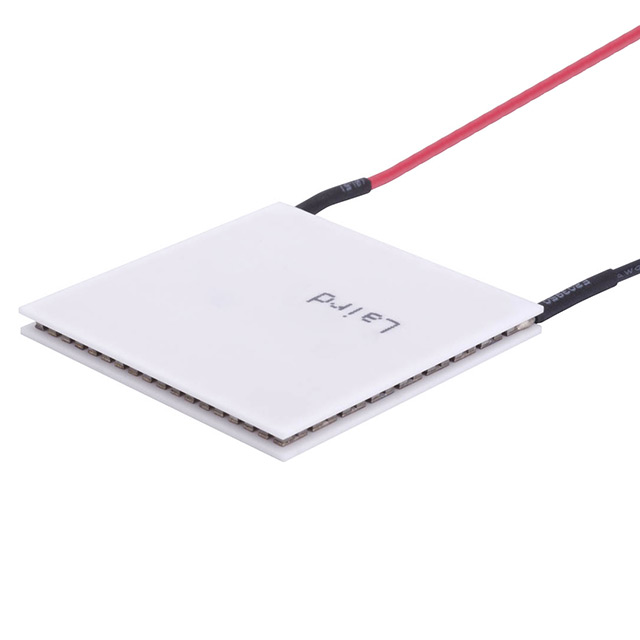

430848 Series

Catalog

PELTIER MOD CP12,161,04,L1,W4.5

Part	Number of Stages	Features	Height [z]	Operating Temperature	Qmax @ Th	Resistance	Delta Tmax @ Th	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Voltage - Max [Max]	Height

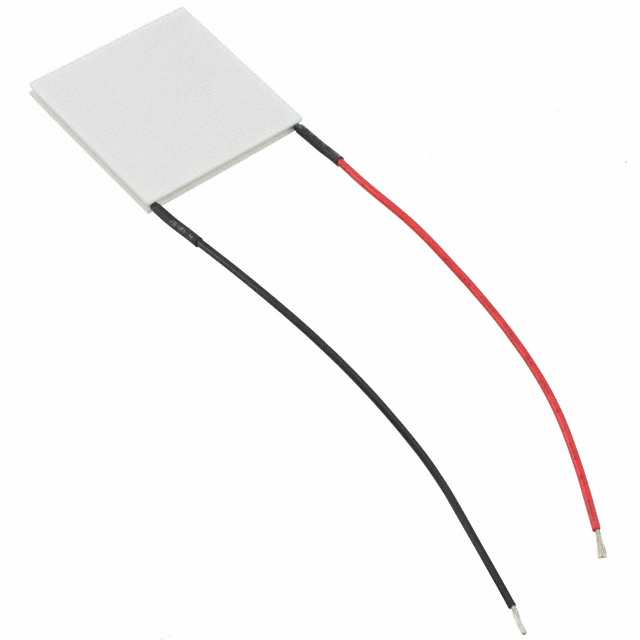

Laird Thermal Systems, Inc. 430848-502	1	Lead Wires Non-Sealed	3.2 mm	80 °C	79.2 W	2.33 Ohms	67 °C	39.88 mm	39.88 mm	7.3 A	18.4 V

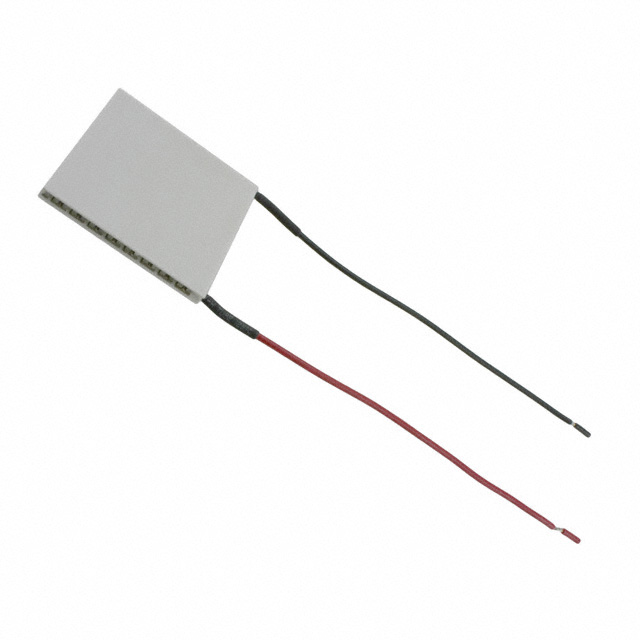

Laird Thermal Systems, Inc. 430848-504	1	Lead Wires Non-Sealed		80 °C	52.2 W	3.54 Ohms	67 °C	39.88 mm	39.88 mm	4.8 A	18.3 V	3.61 mm

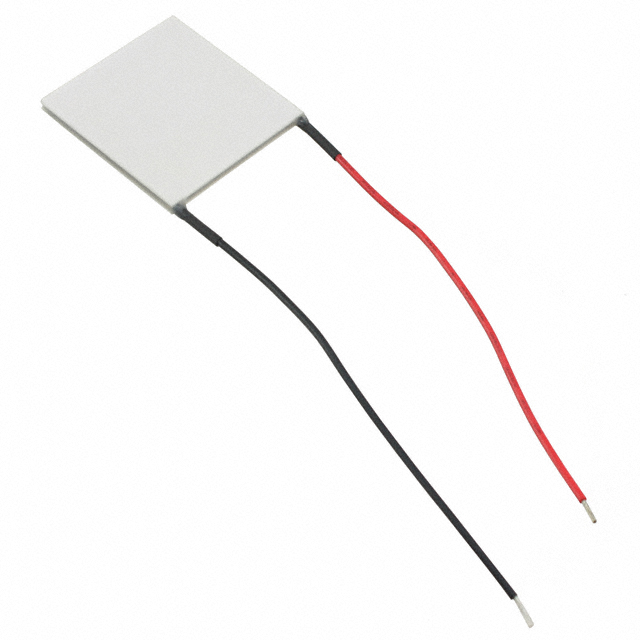

Laird Thermal Systems, Inc. 430848-509	1	Lead Wires Sealed - Silicone RTV	3.2 mm	80 °C	79.2 W	2.33 Ohms	67 °C	39.88 mm	39.88 mm	7.3 A	18.4 V
Laird Thermal Systems, Inc. 430848-506	1	Lead Wires Sealed - Silicone RTV		80 °C	52.2 W	3.54 Ohms	67 °C	39.88 mm	39.88 mm	4.8 A	18.3 V	3.61 mm
