34148 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

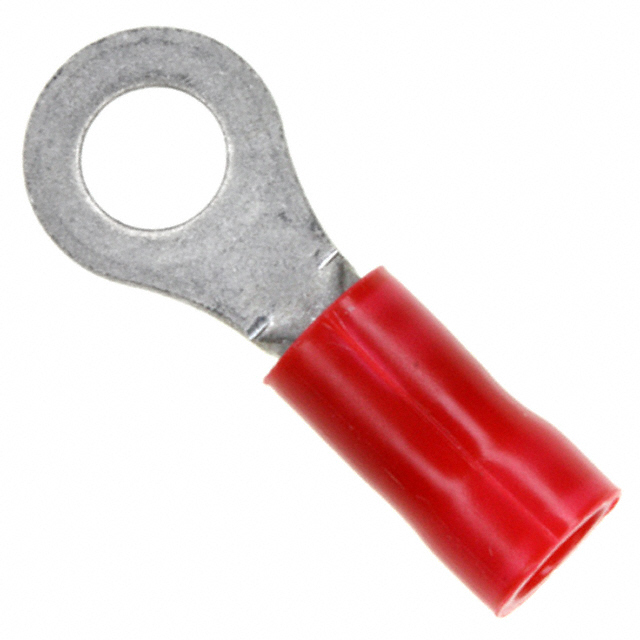

CONN RING CIRC 16-22AWG #8 CRIMP
| Part | Length - Overall | Length - Overall [x] | Stud/Tab Size | Terminal Type | Mounting Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Material - Insulation | Insulation | Features | Contact Finish | Termination | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Color | Thickness | Thickness | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Length - Overall | Insulation Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 21.74 mm | 0.856 " | 8 Stud | Circular | Free Hanging (In-Line) | 7.92 mm | 0.312 in | Poly-Vinyl Chloride (PVC) | Insulated | Serrated Termination | Tin | Crimp | 22 AWG | 16 AWG | Copper | Red | 0.031 in | 0.79 mm | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | ||
 TE Connectivity Raychem Cable Protection | 22.99 mm | 8 Stud | Circular | Free Hanging (In-Line) | 7.92 mm | 0.312 in | Poly-Vinyl Chloride (PVC) | Insulated | Serrated Termination | Tin | Crimp | 22 AWG | 16 AWG | Copper | Red | 0.031 in | 0.79 mm | 5.08 mm | 0.105 in | 2.67 mm | 0.905 in | 5.08 mm |
