PX0776 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
CONN PLUG FMALE 3POS GOLD CRIMP
| Part | Orientation | Shielding | Contact Finish - Mating | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Color | Mounting Type | Number of Positions | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Connector Type | Primary Material | Backshell Material, Plating | Voltage Rating | Fastening Type | Termination | Material Flammability Rating | Shell Material | Insert Material [custom] | Insert Material [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | Keyed | Unshielded | Gold | 0.315 in | 0.236 in | 8 mm | 6 mm | Black | Free Hanging (In-Line) | 3 | IP68 IP69K | -20 ░C | 70 °C | 10 A | Plug Female Sockets | Plastic | Glass Filled Nylon Polyamide (PA) | 277 VAC | Threaded | Crimp | UL94 HB | Glass Filled Nylon Polyamide (PA) | Nylon | Polyamide (PA) | Backshell Coupling Nut |

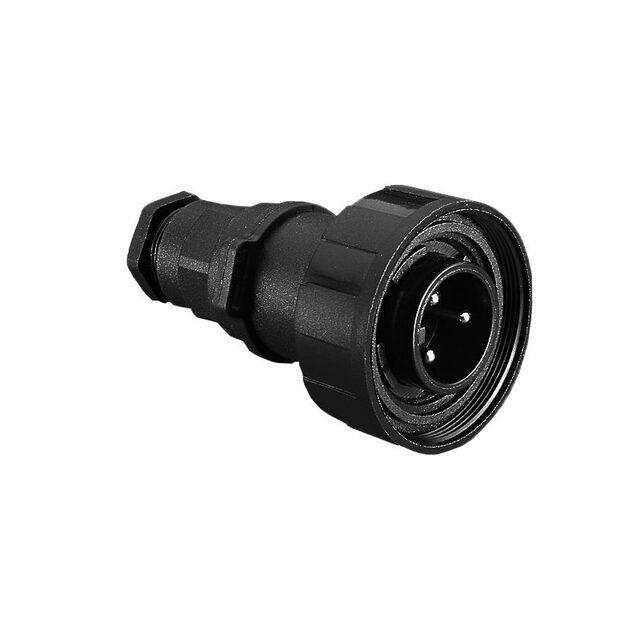

 BULGIN LIMITED | Keyed | Unshielded | Gold | 0.315 in | 0.236 in | 8 mm | 6 mm | Black | Free Hanging (In-Line) | 3 | IP68 IP69K | -20 ░C | 70 °C | 10 A | Plug Male Pins | Plastic | Glass Filled Nylon Polyamide (PA) | 277 VAC | Threaded | Crimp | UL94 HB | Glass Filled Nylon Polyamide (PA) | Nylon | Polyamide (PA) | Backshell Coupling Nut |
