5680122 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 4.2X2MM QUAD GREEN RA

Part	Configuration	Lens Type	Lens Style	Current	Voltage Rating	Wavelength - Peak	Millicandela Rating	Mounting Type	Viewing Angle	Color	Lens Size [y]	Lens Size [x]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage Rating

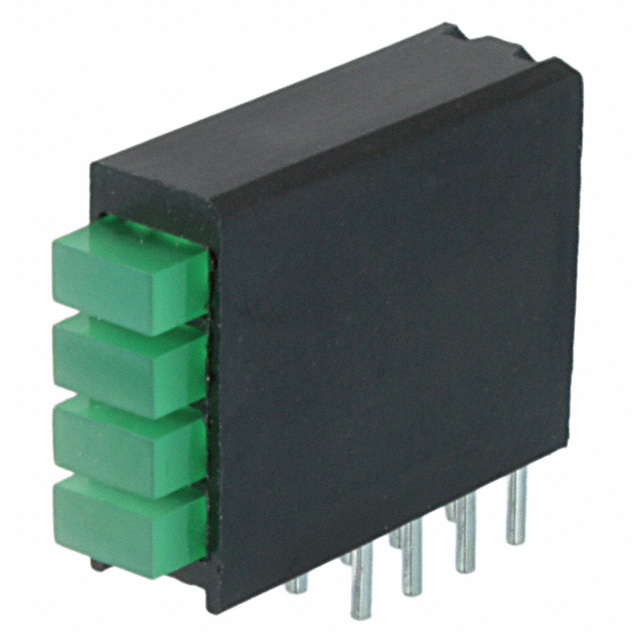

DIALIGHT 5680122222F	4 High	Diffused Tinted	Rectangle with Flat Top	20 mA	2.1 V	565 nm	4.3 mcd	Right Angle Through Hole	104 °	Green	2 mm	4.2 mm
DIALIGHT 5680122323F	4 High	Diffused Tinted	Rectangle with Flat Top	20 mA	2.1 V	565 nm 585 nm	4.3 mcd	Right Angle Through Hole	104 °	Green (x 2) Yellow (x 2)	2 mm	4.2 mm
DIALIGHT 5680122321F	4 High		Rectangle with Flat Top		2.1 V 2.1 V 2.1 V	565 nm 585 nm 635 nm		Right Angle Through Hole		Green (x 2) Red (x 1) Yellow (x 1)	2 mm	4.2 mm	4.3 mcd	4.3 mcd	3.7 mcd
DIALIGHT 5680122122F	4 High		Round with Domed Top			565 nm 635 nm		Right Angle Through Hole	104 °	Green (x 3) Red (x 1)			4.3 mcd		3.7 mcd	2.1V Green 2.1V Red

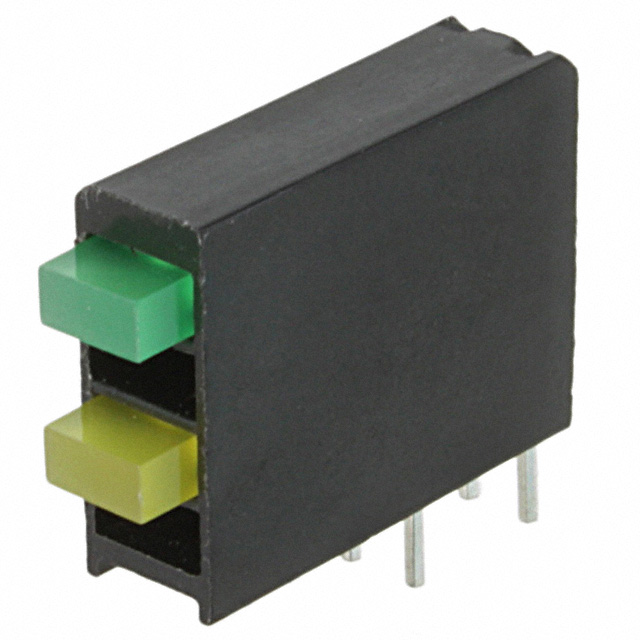

DIALIGHT 5680122030F	4 High				2.1 V 2.1 V	565 nm 585 nm	4.3 mcd 4.3 mcd	Right Angle Through Hole		Blank Green Yellow
