ASP025 Series

Catalog

SPRING CLAMP TERMINAL BLOCK, PLU

Part	Material Flammability Rating	Housing Material	Contact Material	Ingress Protection	Insulation Height	Insulation Height	Number of Levels	Features	Contact Mating Finish	Positions Per Level	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Pitch	Pitch	Voltage - UL	Current - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Plug Wire Entry	Type	Positions Per Level [custom]

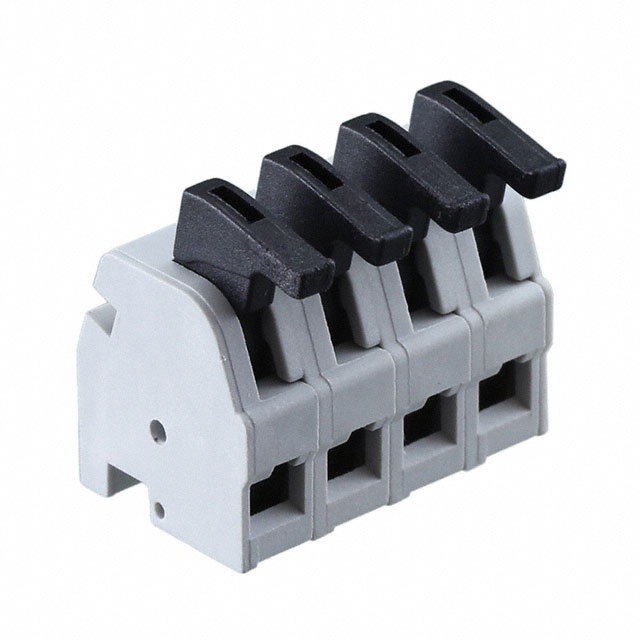

METZ CONNECT USA Inc. ASP0250404	UL94 V-0	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	13.8 mm	0.543 in	1	Lever Actuated	Tin	4	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	0.197 in	5 mm	300 V	8 A	28 AWG	16 AWG	0.08 mm²	1.5 mm²	4	90 °	Plug for Unshrouded Header
METZ CONNECT USA Inc. ASP0251104	UL94 V-0	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	13.8 mm	0.543 in	1	Lever Actuated	Tin	11	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	0.197 in	5 mm	300 V	8 A	28 AWG	16 AWG	0.08 mm²	1.5 mm²	11	90 °	Plug for Unshrouded Header

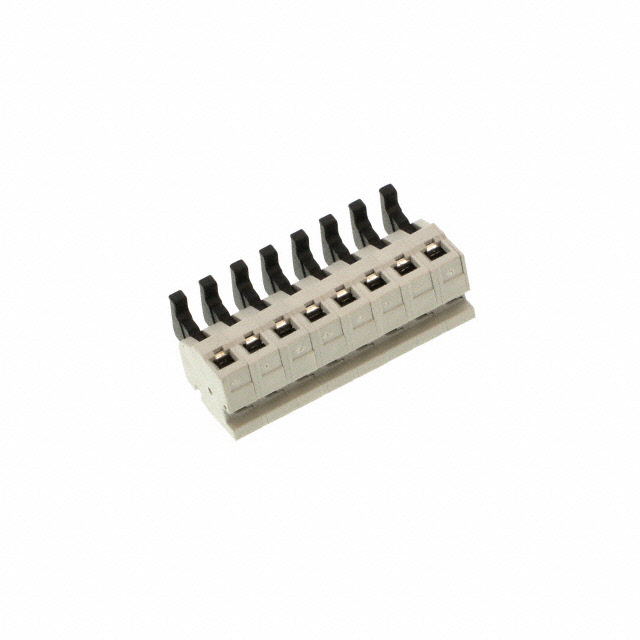

METZ CONNECT USA Inc. ASP0250804	UL94 V-0	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	13.8 mm	0.543 in	1	Lever Actuated	Tin	8	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	0.197 in	5 mm	300 V	8 A	28 AWG	16 AWG	0.08 mm²	1.5 mm²	8	90 °	Plug for Unshrouded Header
METZ CONNECT USA Inc. ASP0251004	UL94 V-0	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	13.8 mm	0.543 in	1	Lever Actuated	Tin	10	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	0.197 in	5 mm	300 V	8 A	28 AWG	16 AWG	0.08 mm²	1.5 mm²	10	90 °	Plug for Unshrouded Header

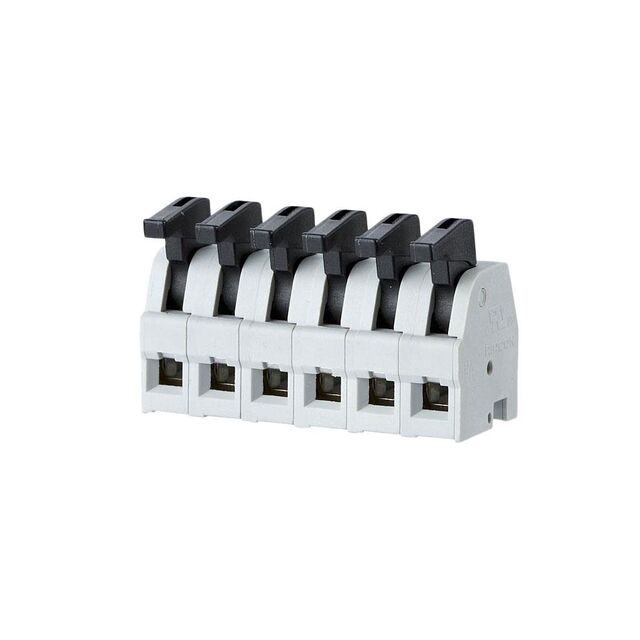

METZ CONNECT USA Inc. ASP0250504	UL94 V-0	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	13.8 mm	0.543 in	1	Lever Actuated	Tin	5	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	0.197 in	5 mm	300 V	8 A	28 AWG	16 AWG	0.08 mm²	1.5 mm²	5	90 °	Plug for Unshrouded Header
METZ CONNECT USA Inc. ASP0250704	UL94 V-0	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	13.8 mm	0.543 in	1	Lever Actuated	Tin		Gray	Free Hanging (In-Line)	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	0.197 in	5 mm	300 V	8 A	28 AWG	16 AWG	0.08 mm²	1.5 mm²	7	90 °	Plug for Unshrouded Header	7
METZ CONNECT USA Inc. ASP0252404	UL94 V-0	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	13.8 mm	0.543 in	1	Lever Actuated	Tin		Gray	Free Hanging (In-Line)	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	0.197 in	5 mm	300 V	8 A	28 AWG	16 AWG	0.08 mm²	1.5 mm²	24	90 °	Plug for Unshrouded Header	24
METZ CONNECT USA Inc. ASP0251204	UL94 V-0	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	13.8 mm	0.543 in	1	Lever Actuated	Tin	12	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	0.197 in	5 mm	300 V	8 A	28 AWG	16 AWG	0.08 mm²	1.5 mm²	12	90 °	Plug for Unshrouded Header

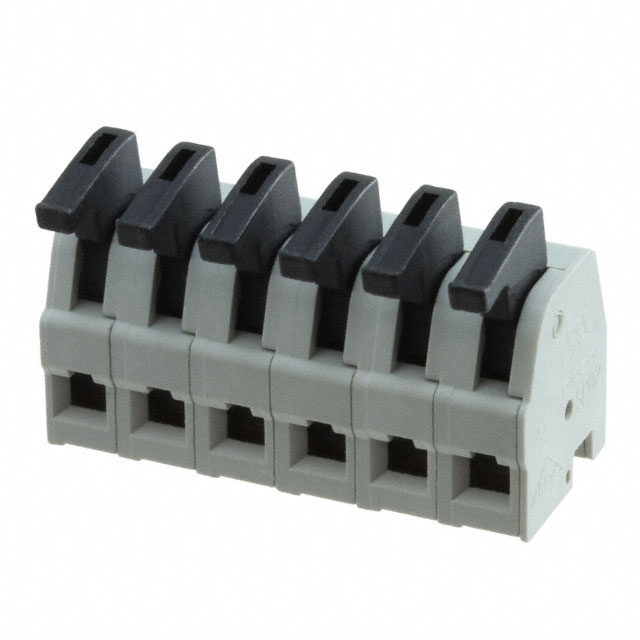

METZ CONNECT USA Inc. ASP0250604	UL94 V-0	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	13.8 mm	0.543 in	1	Lever Actuated	Tin	6	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	0.197 in	5 mm	300 V	8 A	28 AWG	16 AWG	0.08 mm²	1.5 mm²	6	90 °	Plug for Unshrouded Header

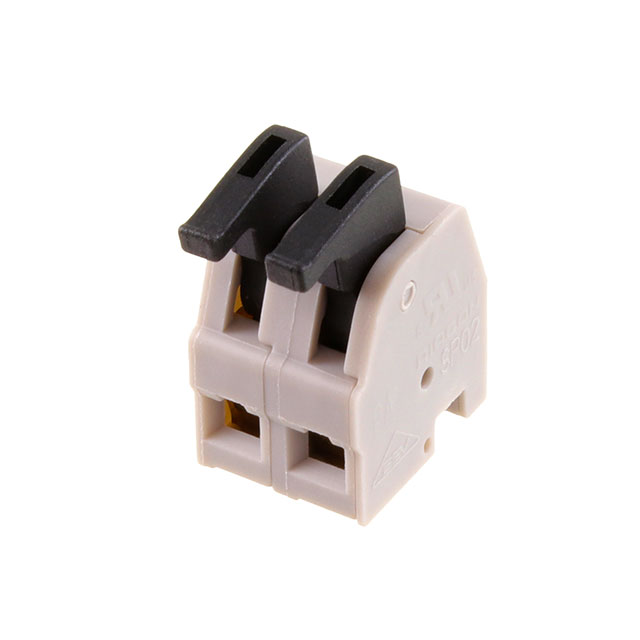

METZ CONNECT USA Inc. ASP0250204	UL94 V-0	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	13.8 mm	0.543 in	1	Lever Actuated	Tin	2	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	0.197 in	5 mm	300 V	8 A	28 AWG	16 AWG	0.08 mm²	1.5 mm²	2	90 °	Plug for Unshrouded Header
