280618 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

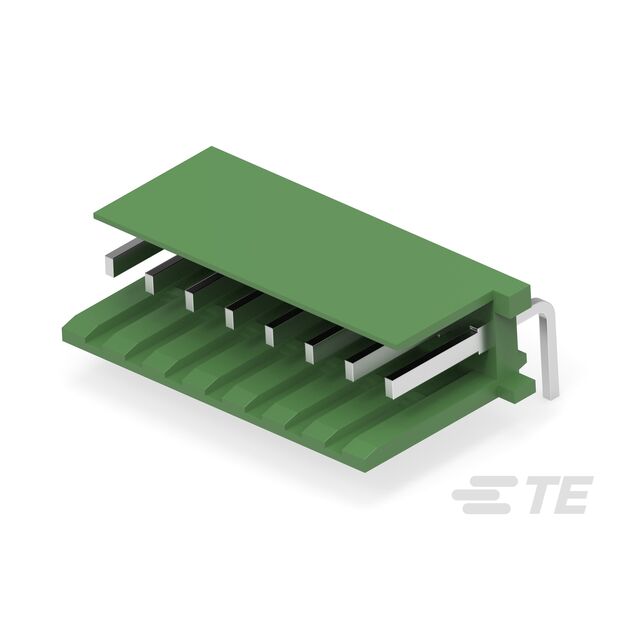

CONN HEADER R/A 8POS 3.96MM
| Part | Style | Number of Rows | Contact Finish - Post | Contact Shape | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Mounting Type | Insulation Material | Contact Material | Contact Length - Post | Contact Length - Post [x] | Insulation Color | Connector Type | Shrouding | Contact Type | Termination | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board to Board Cable | 1 | Tin | Rectangular | 10 mm | 0.394 in | All | Through Hole Right Angle | Polycarbonate Glass Filled | Brass | 3.2 mm | 0.126 in | Green | Header | Shrouded - 2 Wall | Male Pin | Solder | 0.156 in | 3.96 mm | Detent Lock | 0.346 in | 8.8 mm | UL94 V-0 | 8 |
