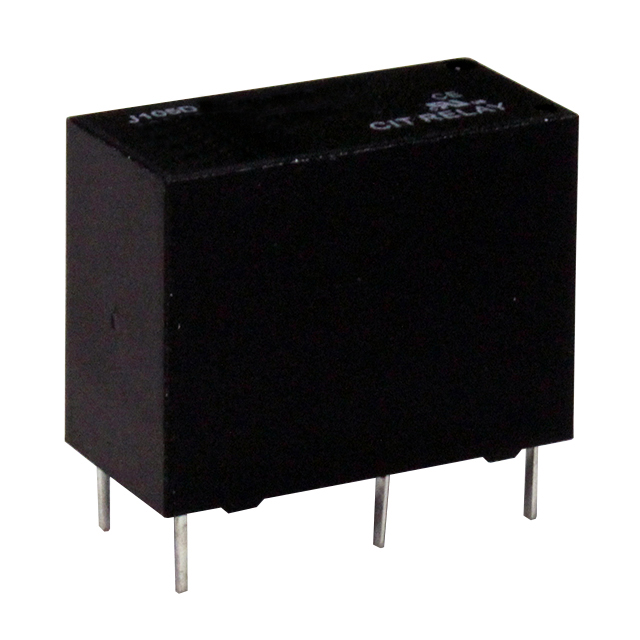

J105D1CS Series

Catalog

RELAY GEN PURPOSE SPDT 10A 48V

Part	Coil Resistance	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Mounting Type	Switching Voltage [Max]	Coil Current	Seal Rating	Contact Rating (Current)	Operate Time	Load - Max Switching	Contact Material	Must Operate Voltage	Coil Type	Termination Style	Contact Form	Coil Voltage	Release Time
CIT Relay and Switch J105D1CS48VDC.45	5.12 kOhms	General Purpose	-55 C	125 °C	4.8 VDC	Through Hole	277 VAC	9.4 mA	Sealed - Fully	10 A	10 ms	2770 VA	Silver Tin Oxide (AgSnO)	36 VDC	Non Latching	PC Pin	SPDT (1 Form C)	48 VDC	10 ms
CIT Relay and Switch J105D1CS6VDC.45	80 Ohms	General Purpose	-55 C	125 °C	0.6 VDC	Through Hole	277 VAC	0.075 A	Sealed - Fully	10 A	10 ms	2770 VA	Silver Tin Oxide (AgSnO)	4.5 VDC	Non Latching	PC Pin	SPDT (1 Form C)		10 ms

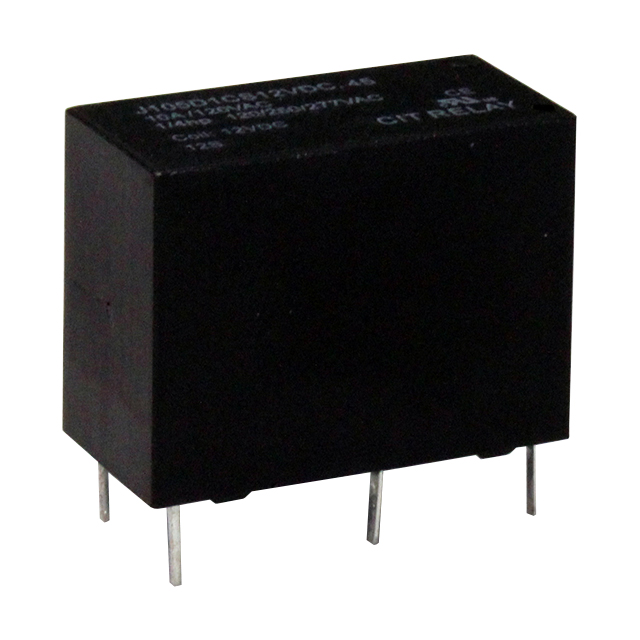

CIT Relay and Switch J105D1CS12VDC.45	320 Ohms	General Purpose	-55 C	125 °C	1.2 VDC	Through Hole	277 VAC	0.0375 A	Sealed - Fully	10 A	10 ms	2770 VA	Silver Tin Oxide (AgSnO)	9 VDC	Non Latching	PC Pin	SPDT (1 Form C)	12 VDC	10 ms

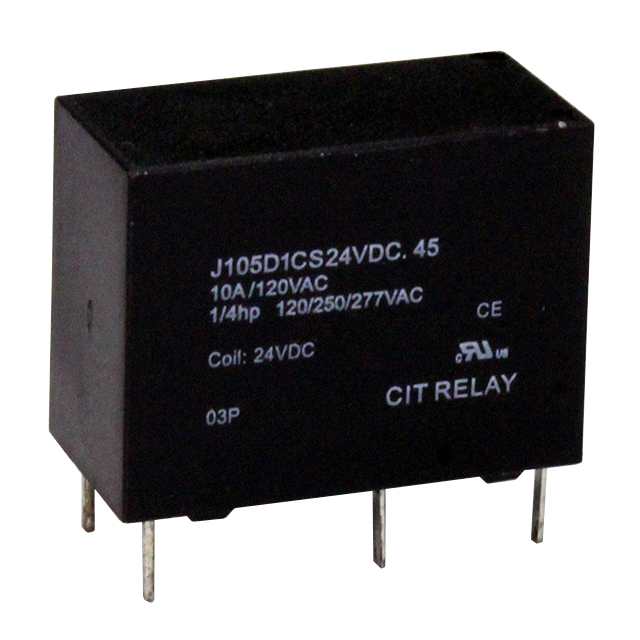

CIT Relay and Switch J105D1CS24VDC.45	1280 Ohms	General Purpose	-55 C	125 °C	2.4 VDC	Through Hole	277 VAC	18.8 mA	Sealed - Fully	10 A	10 ms	2770 VA	Silver Tin Oxide (AgSnO)	18 VDC	Non Latching	PC Pin	SPDT (1 Form C)	24 VDC	10 ms
CIT Relay and Switch J105D1CS9VDC.45	180 Ohms	General Purpose	-55 C	125 °C	0.9 VDC	Through Hole	277 VAC	50 mA	Sealed - Fully	10 A	10 ms	2770 VA	Silver Tin Oxide (AgSnO)	6.75 VDC	Non Latching	PC Pin	SPDT (1 Form C)	9 VDC	10 ms
CIT Relay and Switch J105D1CS3VDC.45	20 Ohms	General Purpose	-55 C	125 °C	0.3 VDC	Through Hole	277 VAC	0.15 A	Sealed - Fully	10 A	10 ms	2770 VA	Silver Tin Oxide (AgSnO)	2.25 VDC	Non Latching	PC Pin	SPDT (1 Form C)		10 ms
CIT Relay and Switch J105D1CS18VDC.45	720 Ohms	General Purpose	-55 C	125 °C	1.8 VDC	Through Hole	277 VAC	25 mA	Sealed - Fully	10 A	10 ms	2770 VA	Silver Tin Oxide (AgSnO)	13.5 VDC	Non Latching	PC Pin	SPDT (1 Form C)	18 VDC	10 ms
CIT Relay and Switch J105D1CS5VDC.45	55 Ohms	General Purpose	-55 C	125 °C	0.5 VDC	Through Hole	277 VAC	90.9 mA	Sealed - Fully	10 A	10 ms	2770 VA	Silver Tin Oxide (AgSnO)	3.75 VDC	Non Latching	PC Pin	SPDT (1 Form C)	5 VDC	10 ms
