745-026 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 26POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Gender	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions	Card Type	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Color	Read Out	Mounting Type	Pitch	Pitch	Termination Rows	Number of Rows

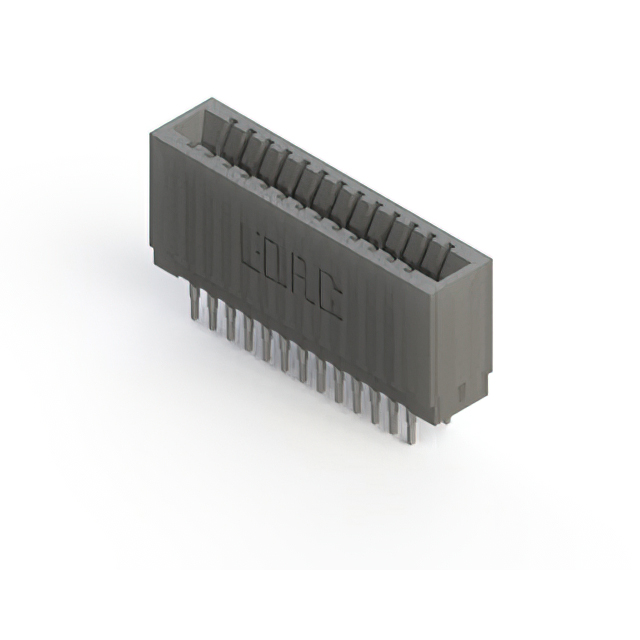

EDAC Inc. 745-026-540-201	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	13	Female	Gold	30 Áin	0.76 Ám	Press-Fit Wire Wrap	26	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Black	Dual	Through Hole	0.1 "	2.54 mm

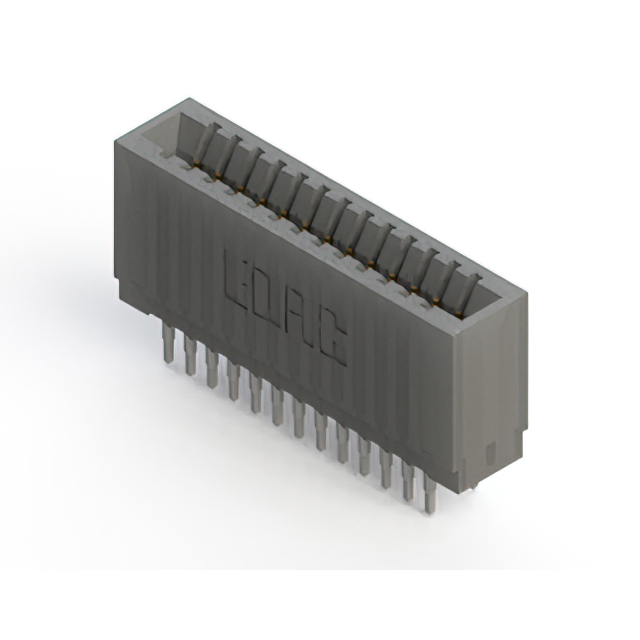

EDAC Inc. 745-026-525-201	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	13	Female	Gold	30 Áin	0.76 Ám	Press-Fit	26	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Black	Dual	Through Hole	0.1 "	2.54 mm

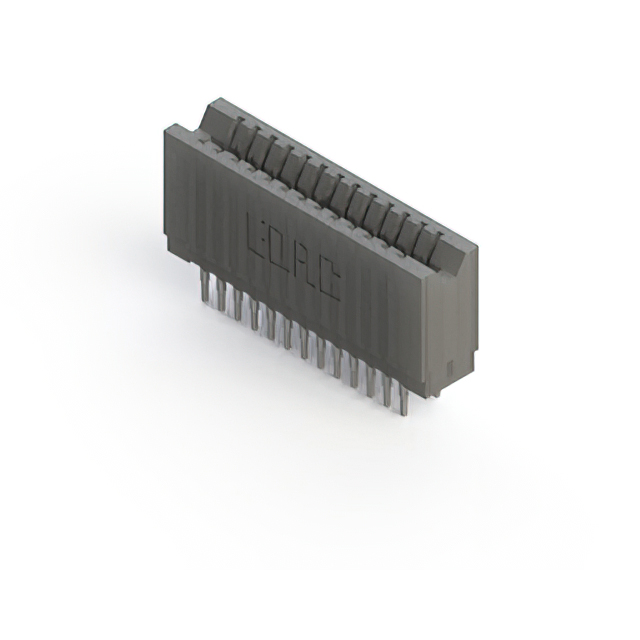

EDAC Inc. 745-026-541-206	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	13	Female	Gold	30 Áin	0.76 Ám	Press-Fit Wire Wrap	26	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Black	Dual	Through Hole	0.1 "	2.54 mm
EDAC Inc. 745-026-522-101		Polyester Thermoplastic	Cantilever	-40 C	105 ░C	26	Female	Gold	30 Áin	0.76 Ám	Press-Fit	26	Non Specified - Single Edge		0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Black	Single	Through Hole	0.1 "	2.54 mm	1	1
EDAC Inc. 745-026-540-101		Polyester Thermoplastic	Cantilever	-40 C	105 ░C	26	Female	Gold	30 Áin	0.76 Ám	Press-Fit Wire Wrap	26	Non Specified - Single Edge		0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Black	Single	Through Hole	0.1 "	2.54 mm	1	1

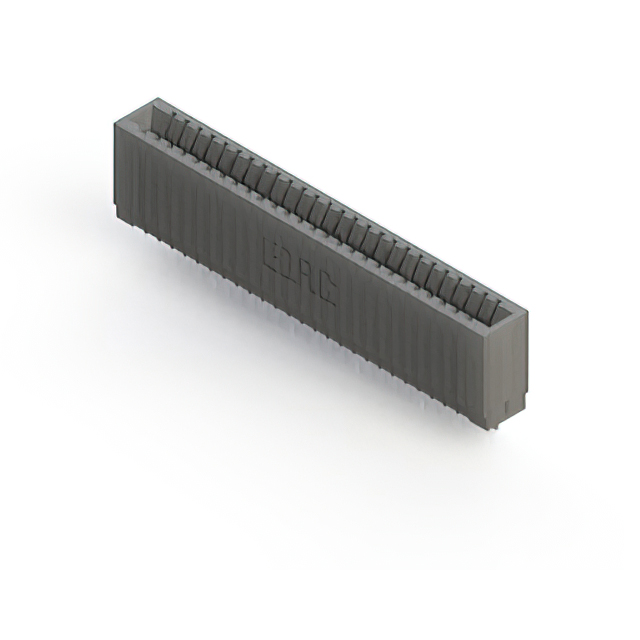

EDAC Inc. 745-026-541-101		Polyester Thermoplastic	Cantilever	-40 C	105 ░C	26	Female	Gold	30 Áin	0.76 Ám	Press-Fit Wire Wrap	26	Non Specified - Single Edge		0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Black	Single	Through Hole	0.1 "	2.54 mm	1	1
EDAC Inc. 745-026-541-106		Polyester Thermoplastic	Cantilever	-40 C	105 ░C	26	Female	Gold	30 Áin	0.76 Ám	Press-Fit Wire Wrap	26	Non Specified - Single Edge		0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Black	Single	Through Hole	0.1 "	2.54 mm	1	1
EDAC Inc. 745-026-560-201	2	Polyester Thermoplastic	Cantilever Make Before Break	-40 C	105 ░C	13	Female	Gold	30 Áin	0.76 Ám	Press-Fit	26	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Black	Dual	Through Hole	0.1 "	2.54 mm
EDAC Inc. 745-026-545-206	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	13	Female	Gold	30 Áin	0.76 Ám	Press-Fit	26	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Black	Dual	Through Hole	0.1 "	2.54 mm
EDAC Inc. 745-026-520-101		Polyester Thermoplastic	Cantilever	-40 C	105 ░C	26	Female	Gold	30 Áin	0.76 Ám	Press-Fit	26	Non Specified - Single Edge		0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Black	Single	Through Hole	0.1 "	2.54 mm	1	1
