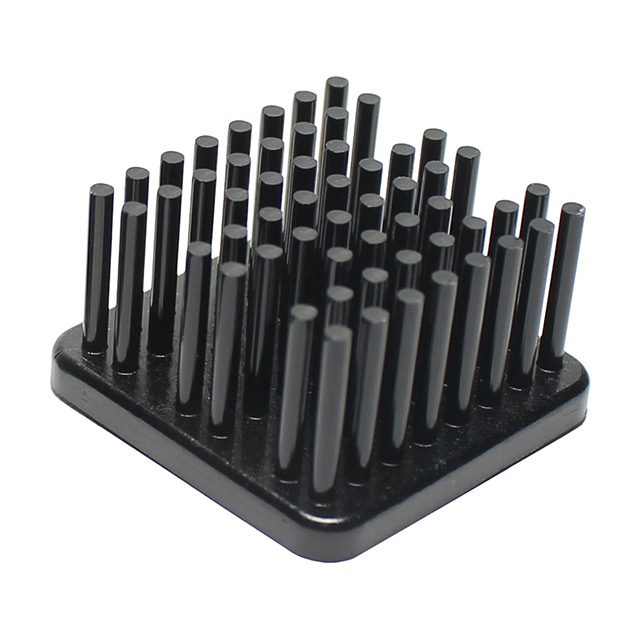

APR27 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED WITH SMALL CLIP

Part	Length	Length	Shape	Attachment Method	Material Finish	Package Cooled	Fin Height [custom]	Fin Height [custom]	Type	Thermal Resistance @ Forced Air Flow	Material	Width	Width [x]	Shelf Life	Fin Height	Fin Height	Thermal Resistance @ Natural	Fin Height [custom]	Fin Height [custom]	Fin Height [z]	Fin Height [z]
CTS Thermal Management Products APR27-27-12CB/S	26.6 mm	1.047 in	Pin Fins Square	Clip	Black Anodized	ASIC BGA CPU LGA	0.457 in	11.6 mm	Top Mount	5.3 °C/W	Aluminum	26.6 mm	1.047 in
CTS Thermal Management Products APR27-27-33CB/A01	26.6 mm	1.047 in	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	ASIC BGA CPU LGA			Top Mount	3.2 °C/W	Aluminum Alloy	26.6 mm	1.047 in	24 Months	1.283 in	32.6 mm	10.31 °C/W

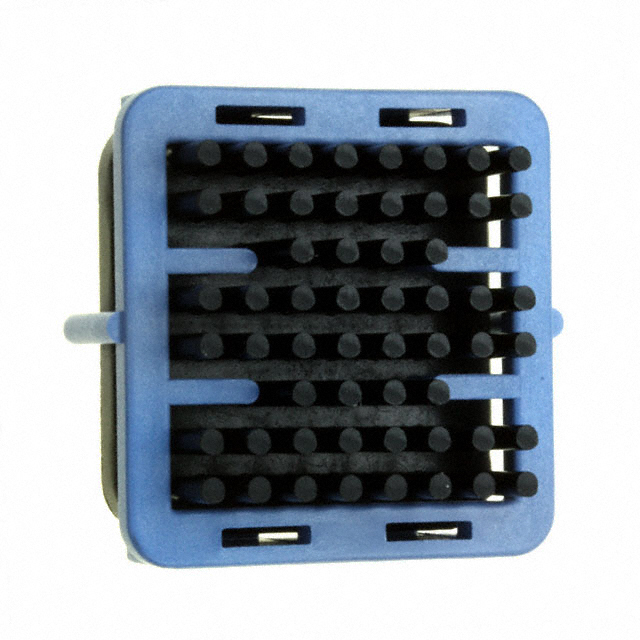

CTS Thermal Management Products APR27-27-12CB/M	26.6 mm	1.047 in	Pin Fins Square	Clip	Black Anodized	ASIC BGA CPU LGA	0.457 in	11.6 mm	Top Mount	5.3 °C/W	Aluminum	26.6 mm	1.047 in
CTS Thermal Management Products APR27-27-18CB/A01	26.6 mm	1.047 in	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	ASIC BGA CPU LGA			Top Mount	4.3 °C/W	Aluminum Alloy	26.6 mm	1.047 in	24 Months	0.693 in	17.6 mm	12.43 °C/W
CTS Thermal Management Products APR27-27-23CB/A01	26.6 mm	1.047 in	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	ASIC BGA CPU LGA			Top Mount	3.66 °C/W	Aluminum Alloy	26.6 mm	1.047 in	24 Months			11.63 °C/W	22.61 mm	0.89 in
CTS Thermal Management Products APR27-27-21CB/A01	26.6 mm	1.047 in	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	ASIC BGA CPU LGA			Top Mount		Aluminum Alloy	26.6 mm	1.047 in	24 Months	0.811 in	20.6 mm	12.05 °C/W
CTS Thermal Management Products APR27-27-28CB/A01	26.6 mm	1.047 in	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	ASIC BGA CPU LGA			Top Mount	3.4 °C/W	Aluminum Alloy	26.6 mm	1.047 in	24 Months			10.79 °C/W			27.6 mm	1.087 in

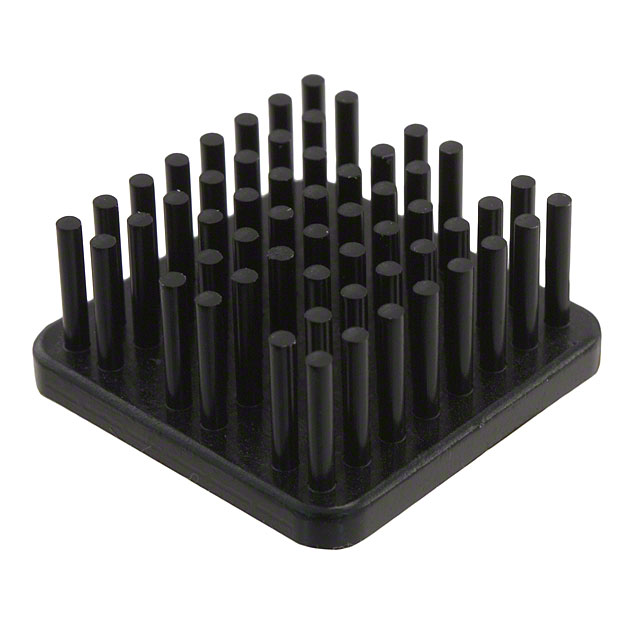

CTS Thermal Management Products APR27-27-12CB/A01	26.6 mm	1.047 in	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	ASIC BGA CPU LGA	0.457 in	11.6 mm	Top Mount	5.3 °C/W	Aluminum	26.6 mm	1.047 in	24 Months
CTS Thermal Management Products APR27-27-15CB/A01	26.6 mm	1.047 in	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	ASIC BGA CPU LGA	0.575 in		Top Mount	4.7 °C/W	Aluminum	26.6 mm	1.047 in	24 Months		14.6 mm	12.1 °C/W
