BPDR Series

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Manufacturer: Pulse Electronics

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Part	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Supplier Device Package	Inductance Frequency - Test	Material - Core	Shielding	Mounting Type	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Tolerance	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
Pulse Electronics BPDR00080830150T00	1.9 A	125 °C	-40 C	2.35 A	0.118 "	3 mm	3131 (8080 Metric)	3131	100 kHz	Ferrite	Shielded	Surface Mount	15 µH	8 mm	0.315 in	8 mm	0.315 in	69 mOhm	30 %
Pulse Electronics BPDR00060630220T00	900 mA	125 °C	-40 C	900 mA	0.118 "	3 mm	Nonstandard		100 kHz	Ferrite	Shielded	Surface Mount	22 µH	5.7 mm	0.224 "	5.7 mm	0.224 "		30 %	112 mOhm

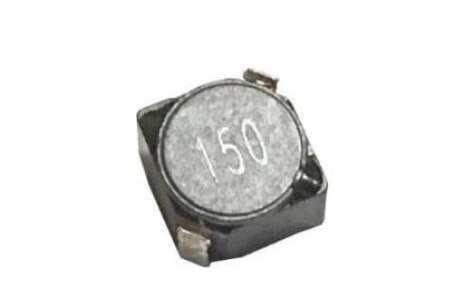

Pulse Electronics BPDR00060620270T00	750 mA	125 °C	-40 C	750 mA			Nonstandard		100 kHz	Ferrite	Shielded	Surface Mount	27 µH	5.7 mm	0.224 "	5.7 mm	0.224 "		30 %	330 mOhm	0.079 in	2 mm
Pulse Electronics BPDR000606556R8M00	2.5 A	125 °C	-40 C	3.5 A			Nonstandard		100 kHz	Ferrite	Shielded	Surface Mount	6.8 µH	5.7 mm	0.224 "	5.7 mm	0.224 "	35.5 mOhm	20 %		5.5 mm		0.217 "
Pulse Electronics BPDR00060620560M00	500 mA	125 °C	-40 C	0.5 A			Nonstandard		100 kHz	Ferrite	Shielded	Surface Mount	56 µH	5.7 mm	0.224 "	5.7 mm	0.224 "	665 mOhm	20 %		0.079 in	2 mm
Pulse Electronics BPDR00060630151M00	350 mA	125 °C	-40 C	350 mA	0.118 "	3 mm	Nonstandard		100 kHz	Ferrite	Shielded	Surface Mount	150 µH	5.7 mm	0.224 "	5.7 mm	0.224 "	1.05 Ohm	20 %
Pulse Electronics BPDR000606301R2T00	3.5 A	125 °C	-40 C	3.5 A	0.118 "	3 mm	Nonstandard		100 kHz	Ferrite	Shielded	Surface Mount	1.2 µH	5.7 mm	0.224 "	5.7 mm	0.224 "	13 mOhm	30 %
Pulse Electronics BPDR000707305R0T00	2.4 A	125 °C	-40 C	2.4 A	0.118 "	3 mm	Nonstandard		100 kHz	Ferrite	Shielded	Surface Mount	5 µH					31 mOhm	30 %
Pulse Electronics BPDR000606206R2T00	1.4 A	125 °C	-40 C	1.4 A			Nonstandard		100 kHz	Ferrite	Shielded	Surface Mount	6.2 µH	5.7 mm	0.224 "	5.7 mm	0.224 "	96 mOhm	30 %		0.079 in	2 mm
Pulse Electronics BPDR00070730180T00	1.32 A	125 °C	-40 C	1.32 A	0.118 "	3 mm	Nonstandard		100 kHz	Ferrite	Shielded	Surface Mount	18 µH						30 %					95 mOhm
